Price: | US $ 5000-6000/Set |
---|---|
Min Order: | 1/Set |
Pay Type: | L/C,T/T,Western Union |
Prod Model: | ELE1212 |
---|---|
Power(W): | 4.5kw |
Control System: | DSP A11 Control System |
Spindle: | Italy Hsd Air Cooling Spindle |
Spindle Power: | 3kw |
Spindle Speed: | 0-18000rpm |
Motor: | FL118 Stepper Motors |
Driver: | Yako 2608 Drivers |
Inverter: | 3.7kw Taiwan Delta Inverter |
Table Surface: | T-Slot and Vacuum Working Table |
Rail: | Sweden Abba 20# Linear Square Guide |
Spindle Layout: | Spindle Over |
Spindle Number: | Single-Spindle |
Feed Mode: | Mechanical |
Controlling Mode: | CNC |
Certification: | SGS BV TUV |
Advantages of cnc wood cutting machine:
Technical Parameters of cnc wood cutting machine:
Description | Parameter |
X,Y,Z Working Area | 1200x1200x200mm |
Structure | New type thicker and bigger heavy duty welded frame and gantry |
Working voltage | 400V, 3PH, 50HZ (220V, 380V for optional) |
Table Surface | T-slot & vacuum working table |
Spindle | 3kw HSD air cooling spindle |
Spindle speed | 0-18000rpm |
X, Y Structure | 20# Sweden ABBA Linear guide and helical rack |
Z Structure | Taiwan TBI Ball screw and 20# Sweden ABBA Linear guide |
Motor and driver | FL118 stepper motors and YAKO 2608 stepper drivers |
Inverter | 3.7kw Taiwan Delta Inverter |
Command Language | G Code |
Control System | DSP A11 control system |
Control box | Inner box |
Lubrication system | Automatic lubrication system |
Tool sensor | Manual tool sensor calibration |
Vacuum pump | 5.5kw water circlulation vacuum pump |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | Artcam Software |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Optional | High flexible towline, fire-proof double-sheathed cable. Japan Omron limit switch. France Schneider safe handle |
PS:All the working area and specifications can be customized according to your requests.

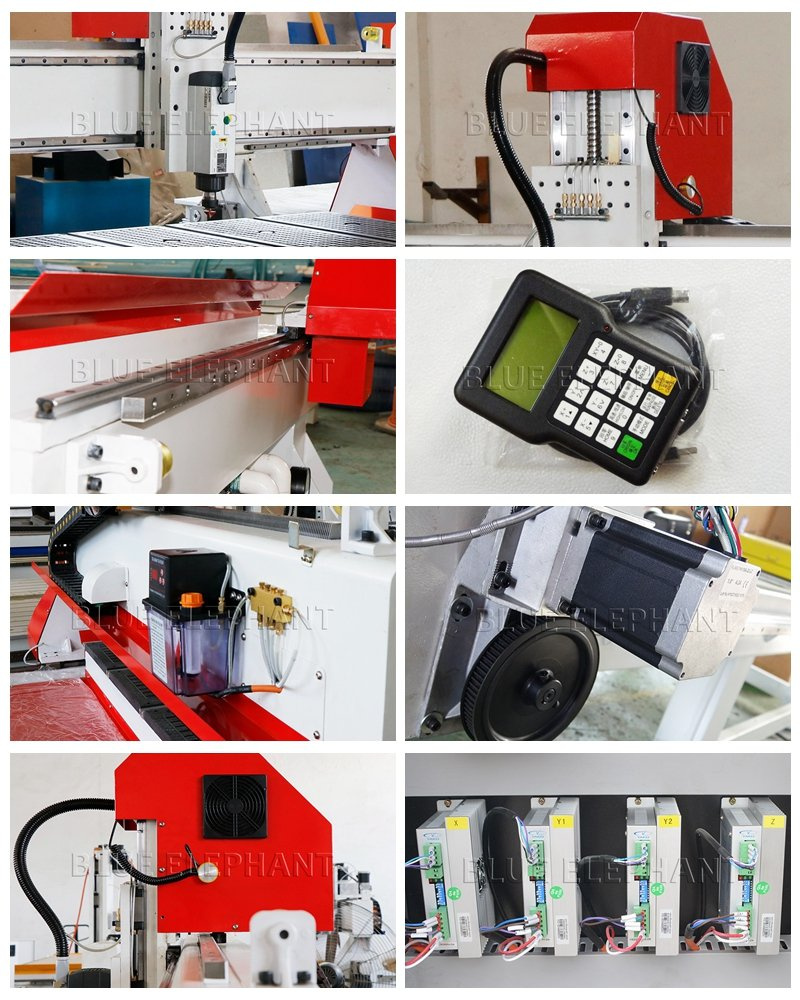

Product Details of cnc wood cutting machine:
Features of cnc wood cutting machine:
Applications:

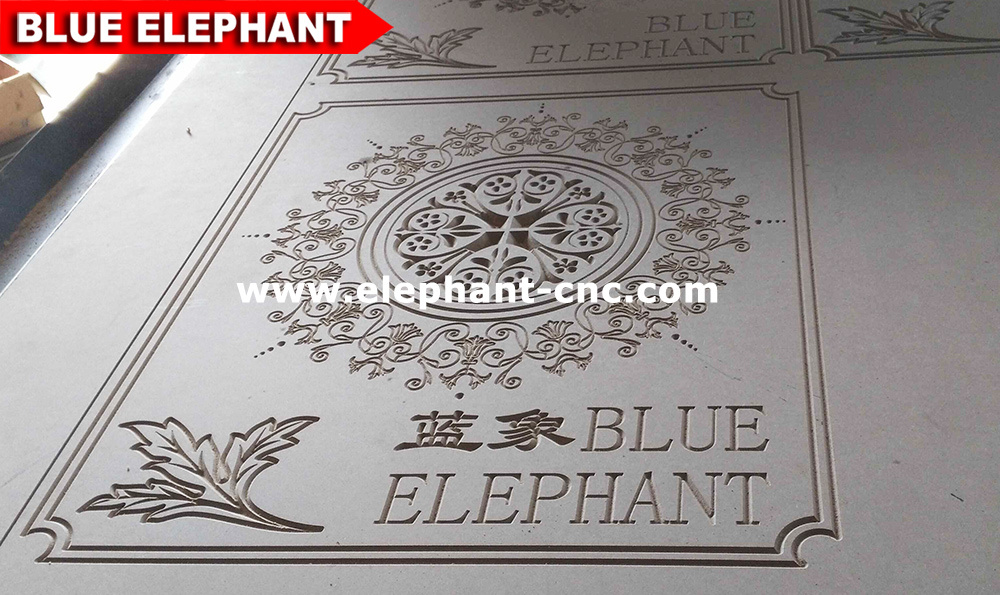

Samples:
Feedback:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Guarantee and After-sale service:
12 months for the whole machine .
1, Technical support by phone , email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Guarantee and After-sale service:
12 months for the whole machine .
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

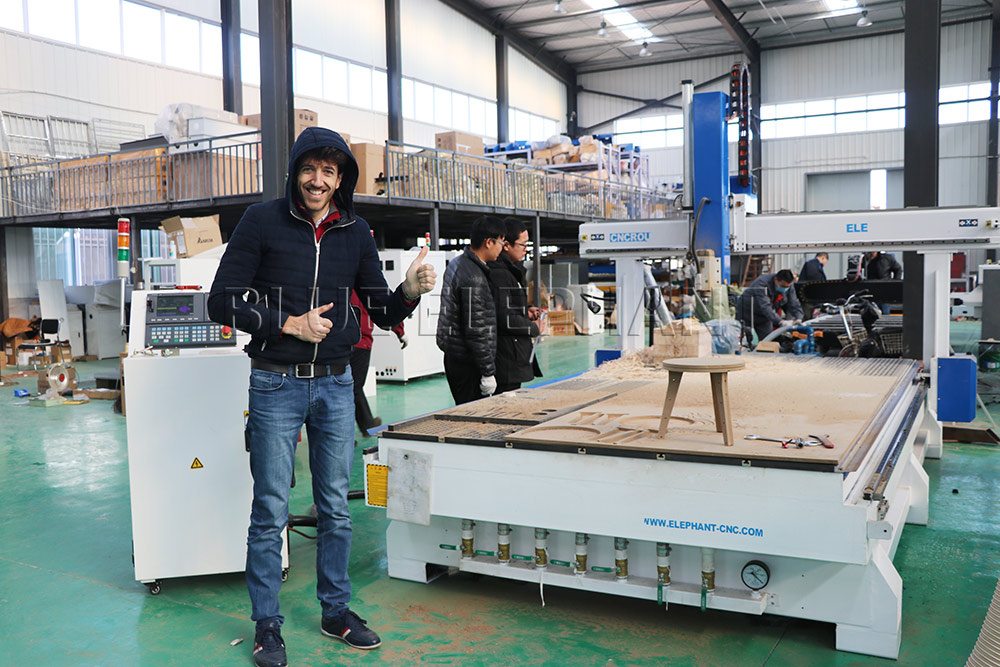

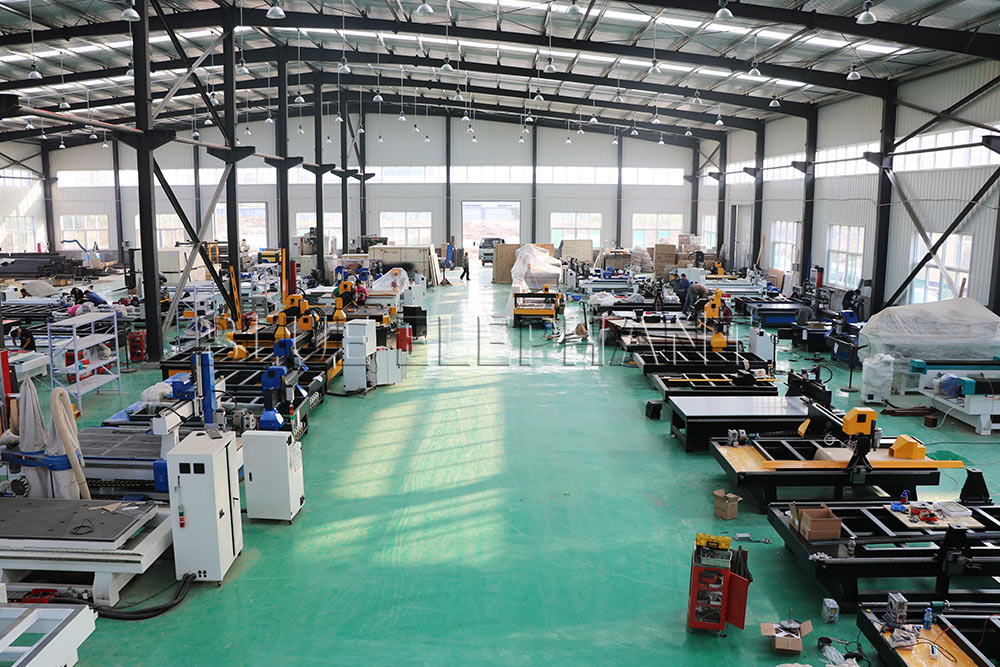

Welcome to our factory:
