China 6090 Acrylic Plywood Engraving Cutting CO2 CNC Laser Machine
| Price: |
US $ 1450-9800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Prod Model: |
FMJ6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
600*900mm |
| Laser Tube: |
Reci 100W (40W/60W90W, 130W, 150W) |
| Control System: |
Leetro 6585 |
| Motor And Driver: |
Leadshine Stepper |
| Rail: |
Taiwan Hiwin Square Rail |
| Belt: |
Shanghai Fulong Belt |
| Lens And Mirrors: |
Singapore |
| Table: |
Blade/ Honeycomb |
| Cooling Equipment: |
Water Chiller, Air Pump |
Product Description

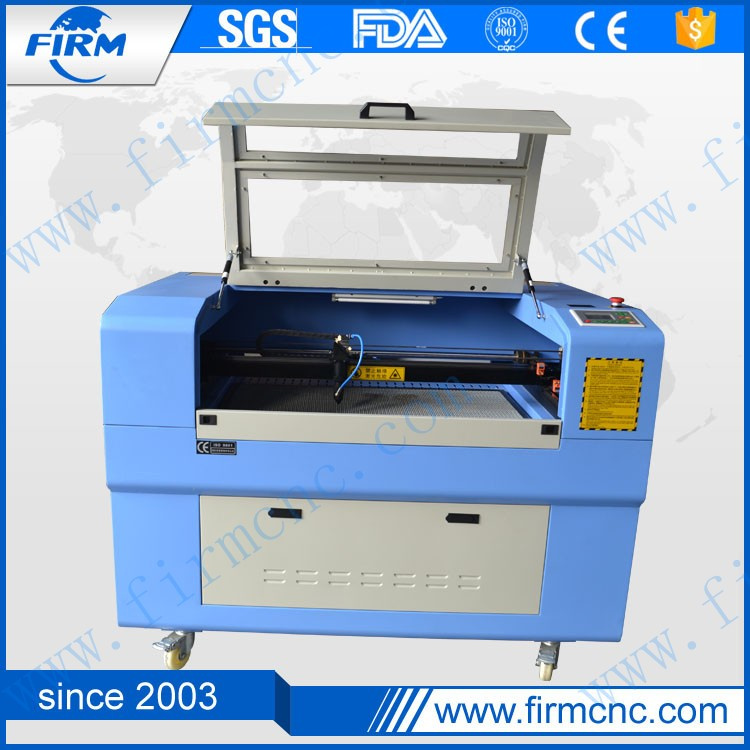

China 6090 acrylic plywood Engraving Cutting CO2 CNC Laser Machine

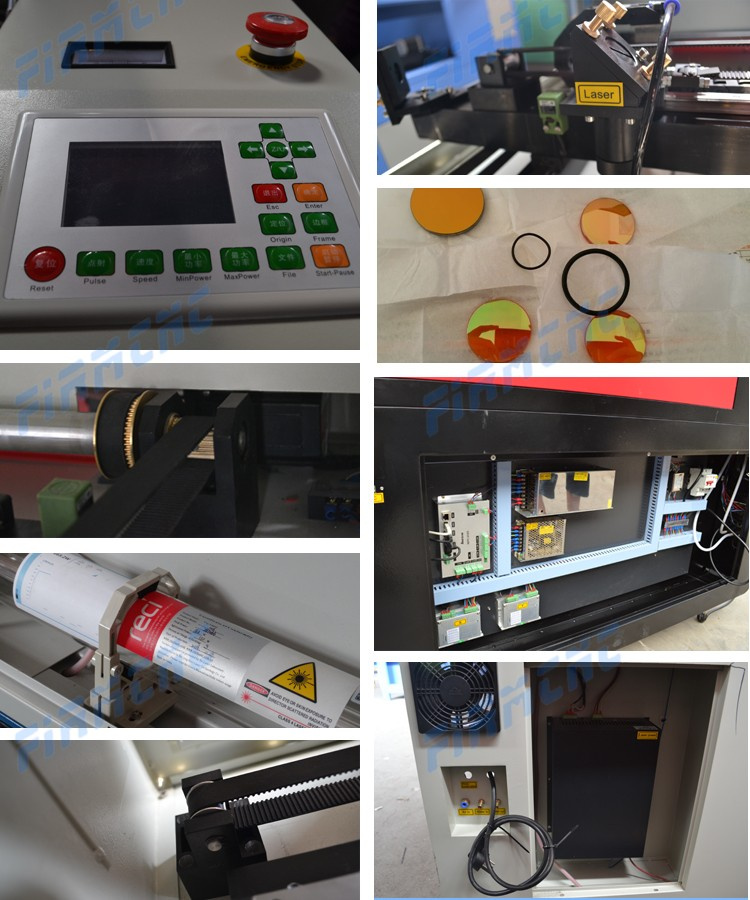

Features:
1. The imported linear guide way ensures the high precision and the long service.
2. The stepper motor guarantees cutting and engraving smooth.
3. The structure is strong enough to ensure the moving stable.
4. High quality laser tube provides the strong beam and long service life.
5. Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube
Technical specification| Model | FMJ series |
| Engraving Area (mm)W*L | 900*600 | 1300*900 | 1400*1000 | 1300*2500 |
| Laser tube power | 60W 80W 100W 120W 130W 150W |
| Laser Type | CO2 sealed laser tube |
| Engraving Speed | 0-64000mm/min |
| Cutting Speed | 0-36000mm/min |
| Resetting positioning accuracy | ≤±0.01mm |
| Laser Output | 1-100%software setting |
| Cooling mode | Circulating-water-cooling and protection system |
| Machine control and drive | Speedy DSP controlling, stepper motor |
| Cutting Platform | knife-strip platform |
| Min. shaping character | Character2.0mm×2.0mm,English1.0mm×1.0mm |
| Power Supply | AC220V 50HZ |
| Operating system | DSP off-line control system |
| Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc. |
| Operating Temperature | 5°C-40°C |
| Operating Humidity | 5-95%(Free of Condensed Water) |
| Compatible Software | CorelDraw ,AutoCAD transmit directly |
| Optional Spare Parts | Rotary system, Industrial Chiller, Infrared Locating System,
Laser Tube, Up-down clump |
| Recommended Spare Parts | Laser Tube |
Application
Advertisement signs and marks making, handicraft industry, crystal accessories, paper
cutting, wood and bamboo industry, printing industry, clothing and leather industry,
garment industry, decorative industry, photo frame making and so on.
Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
After sale:
1. We would provide English Version working manual.
2. If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.
3. Machine warranty is one year. So if your machine has any unintentional damages,we would provide parts for free.
4. If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
5. Could be remote control if needed.
FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
