| Price: | US $ 9000-9800set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1340 |
|---|---|
| Voltage: | 380V, 3phase, 50Hz (Optional: 220V) |
| Dimension(L*W*H): | 3200*4240*1850mm |
| Control System: | Nc Studio 53c Control System |
| Spindle: | 3 Sets 5.5kw Changsheng Water Cooling Spindles |
| Spindle Speed: | 0-24000rpm/Min |
| Motor: | FL118 Stepper Motor |
| Driver: | Yako 2811 Driver |
| Inverter: | 5.5kw Fuling Inverter |
| Table Surface: | T-Slot and Vacuum Working Table with 4 Zones |
| Vacuum Pump: | 5.5kw Water Circlulation Vacuum Pump |
| Spindle Layout: | Spindle Over |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |
| Spindle Number: | Three Spindles |

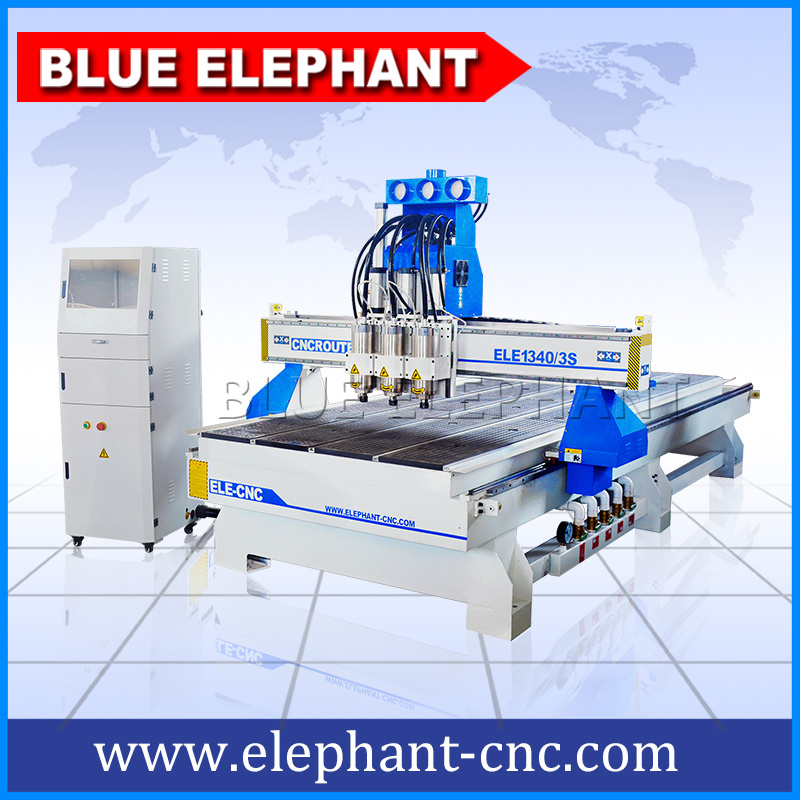

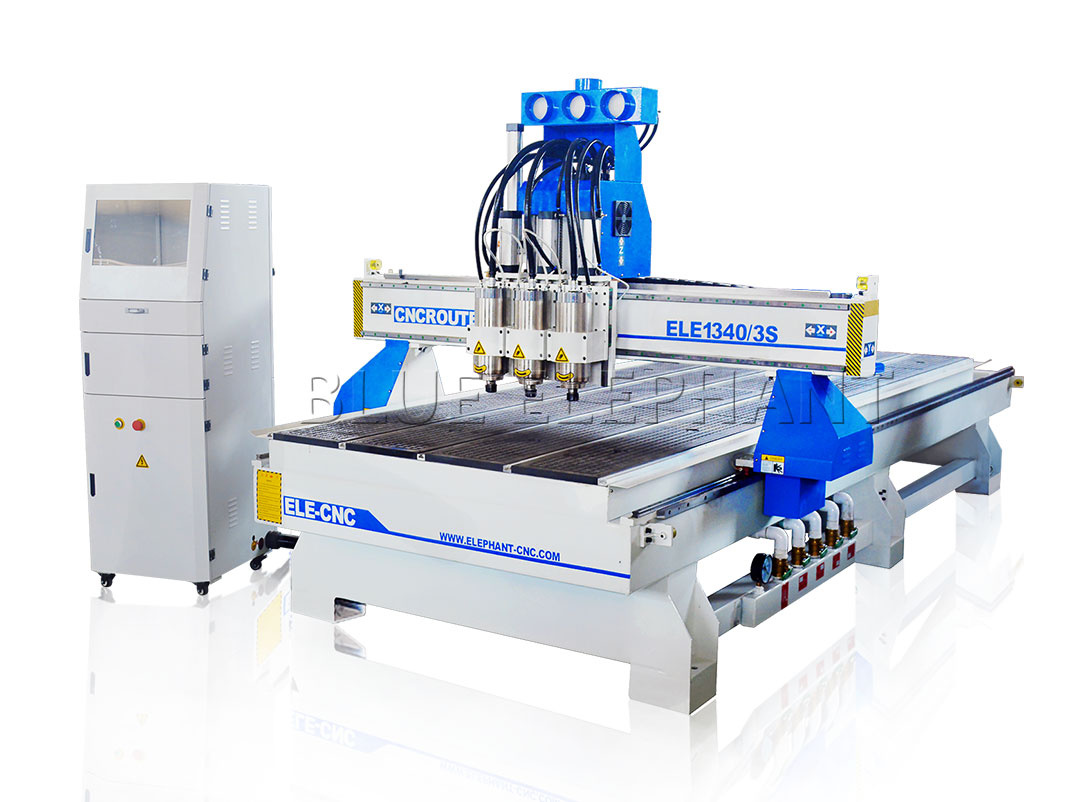

China 3 Spindle Woodworking Cnc Router with Dust Collection from Cnc Router Factory
Introduction of cnc router:
Parameters of cnc router:
Description | Parameter |
X,Y,Z Working Area | 1300x4000x200mm |
Table Surface | T-slot & vacumm working Table with 4 zones |
Frame | New type heavy duty welded steel frame |
X, Y Structure | #20 Tiwan HINWIN linear guide rail, helical rack gear |
Z Structure | #20 Tiwan HINWIN linear guide rail, Taiwan TBI Ball Screw |
Spindle | Three sets 5.5kw Changsheng water cooling spindle with air cylinders |
Spindle Speed | 0-24000RPM |
Drive Motors | FL118 stepper motor and YAKO2811 big driver |
Inverter | 5.5kw Fuling inverter |
Working Voltage | AC380V/50Hz,3PH (Option: 220V) |
Operating System | NCstudio 53C control system |
Control box | Separate computer control box |
Lubrication system | Manual lubrication system |
Vacuum pump | 7.5kw water circlulation vacuum pump (380V, 3Ph, 50Hz) |
X,Y Resolution | <0.01mm |
Running Environment Temperature | 0 - 45 Centigrade |
Dust collector | 1.5kw double pockets dust collector |
PS:All the working area and specifications can be customized according to your requests.

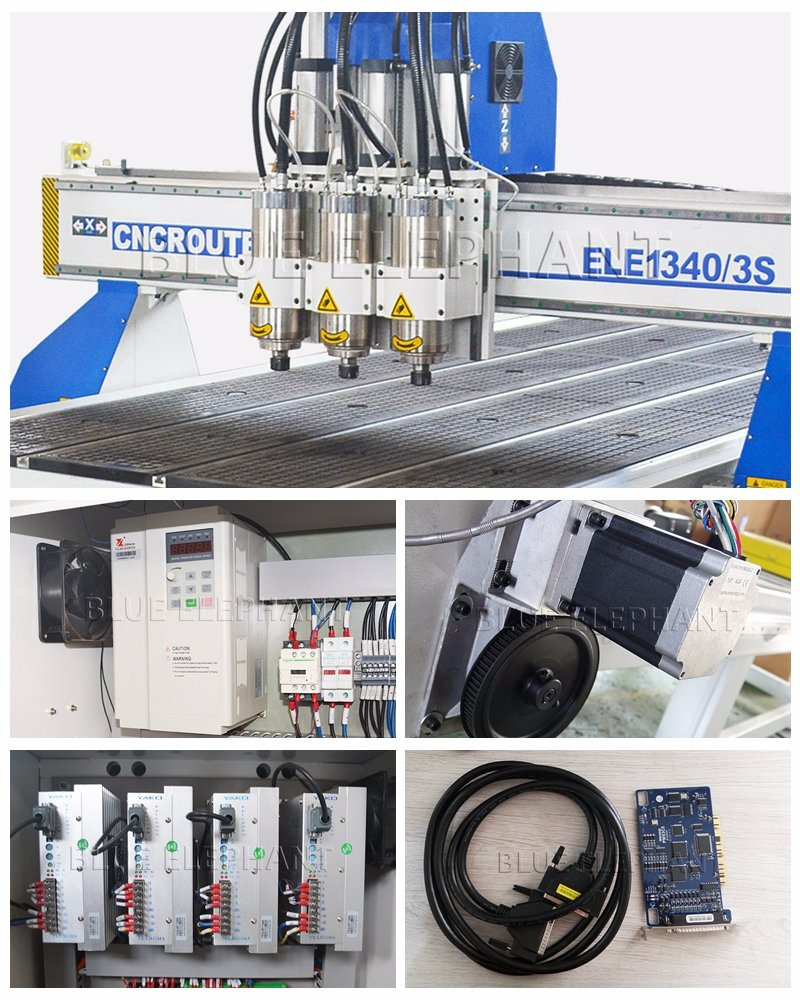

Product Details of cnc router:
Features of cnc router:
Application:
Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
Relief sculpture and 3D engraving.

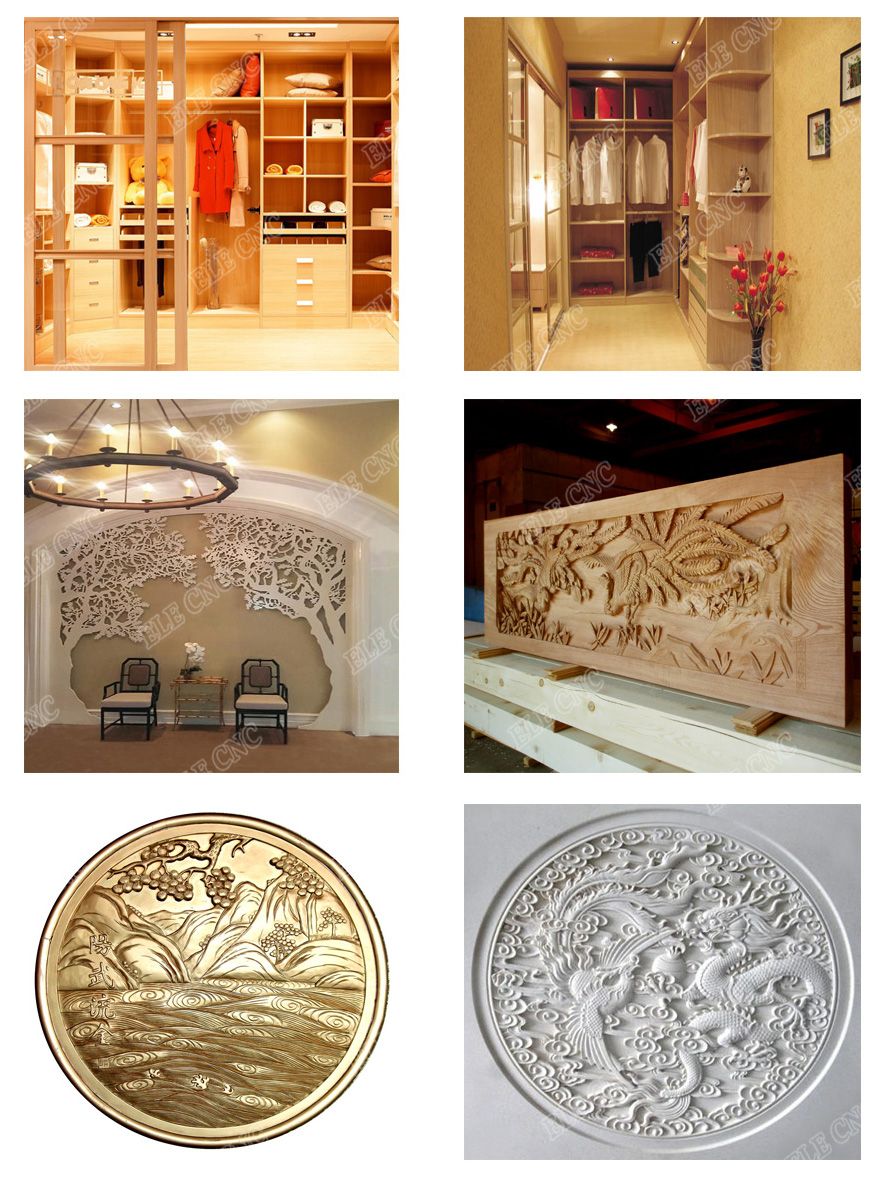

Samples show:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

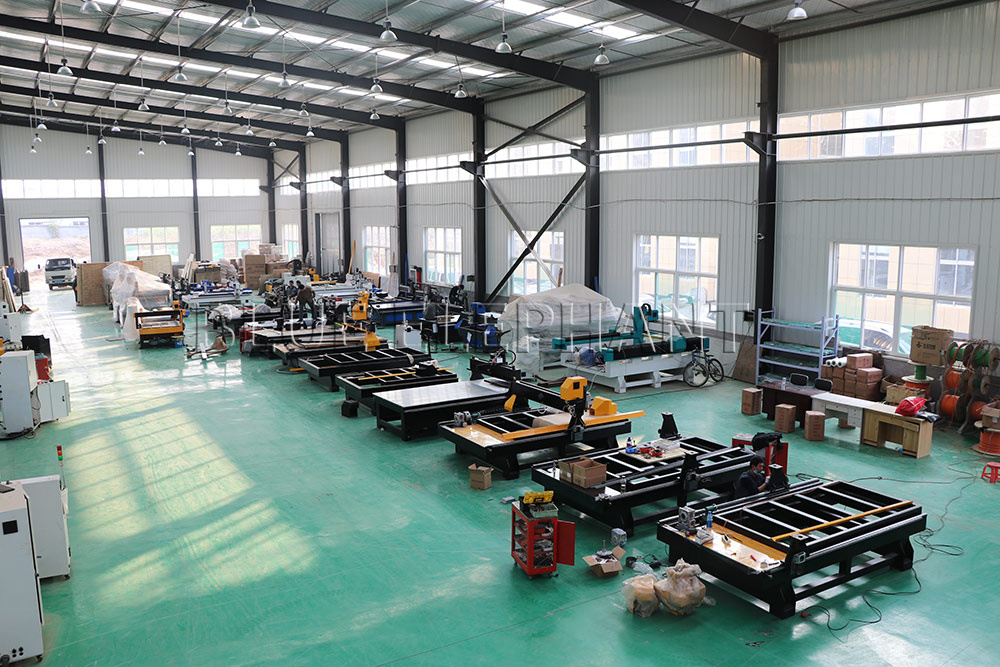

Welcome to our factory:
