China 1325 CNC Wood Router Machine with Cheap 3D Machine CNC
| Price: |
US $ 3000-7000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE 1325 |
| Voltage: |
AC380V/50/60Hz, 3pH (Option: 220V) |
| Dimension(L*W*H): |
3200*1840*1900mm |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| X,Y,Z Working Area: |
1300X2500*200mm |
| Spindle Power: |
3.5kw Changsheng Air Cooling Spindle |
| Control System: |
DSP A11 |
| Inverter: |
3.7kw Fuling Inverter |
| Transmission: |
Taiwan Tbi Ball Screw |
| Guide Rail: |
#20 Hiwin Square Guide Rail |
| Spindle Speed: |
0-18000rpm |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description

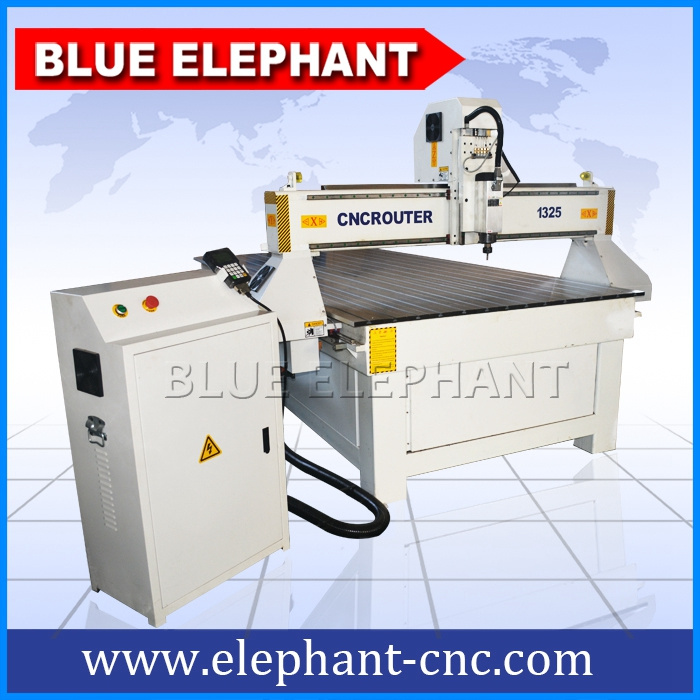

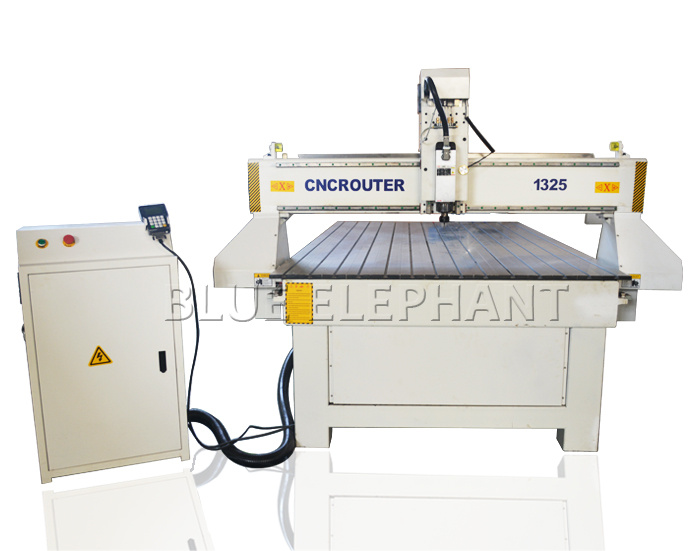

China 1325 Cnc Wood Router Machine with Cheap 3D Machine Cnc
Features:
Working area: 1300mm*2500mm*200mm
Steel gantry , strong structure

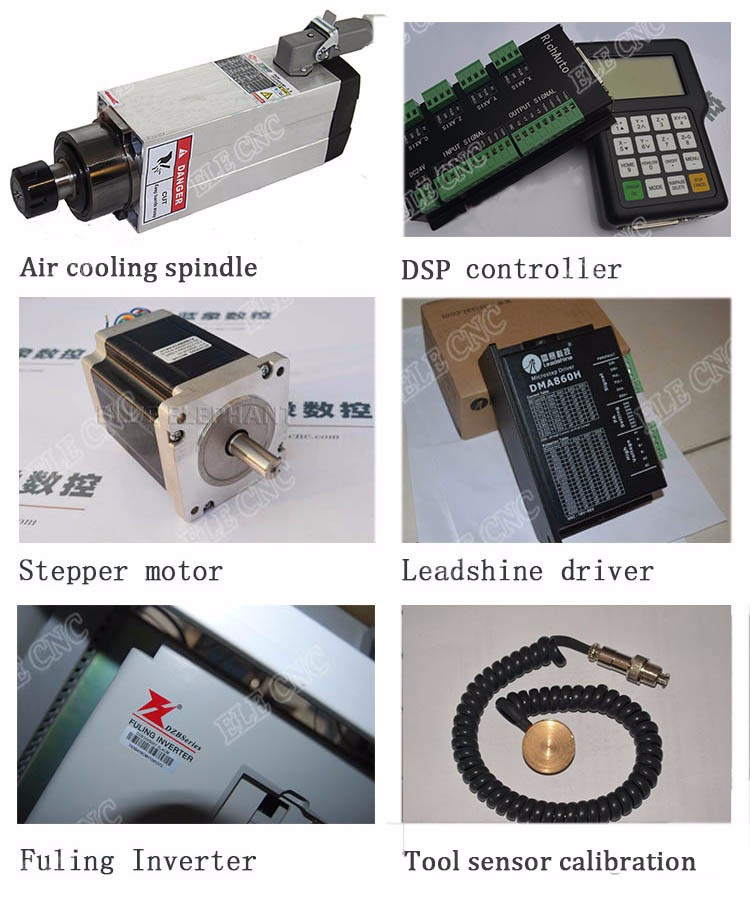

3.5kw Changsheng air cooling spindle
3.7kw Fuling inverter
Z axis with Taiwan TBI Ball screw transmission
X,Y axis with high precision helical rack gear transmission
X,Y,Z axis with Taiwan TBI/PMI/HIWIN Linear Guide
DSP A11 control ststem
FL118 stepper motor , Leadshine 860H driver
Artcam /Type 3 software
Voltage:380V, 3phase, 50/60HZ(220v for optional)Technical Parameters: | X,Y,Z Working Area | 1300x2500x200mm |
| Table Surface | T-slot Table |
| Spindle | 3.5kw Changsheng air cooling spindle |
| X, Y Structure | #20 Taiwan HIWIN Linear guide and helical rack |
| Z Structure | TBI Ball screw and #20 Taiwan HIWIN Linear guide |
| Driver and Motor | Stepper |
| Software | Artcam /Type 3 software |
| Spindle Speed | 0-18000RPM |
| Lubrication system | Manual |
| Inverter | 3.7kw Fuling Inverter |
| Command Language | G Code |
| Control System | DSP A11 |
| Computer Interface | USB |
| Collect | ER20 |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Details:
Application
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as
artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engravingFeedback:
Packaging and shipping:
1.Outside Package:Standard export wooden case .
2.Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.

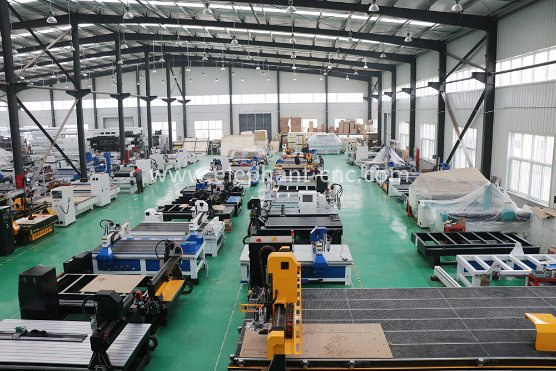

For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.Our Factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- We have our R & D department, Quality control department, and after sale & service department.
- Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
- We had got CE and ISO9001 certification always offer best quality machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
Our Customers:
Please contact us , So we can help you select the right system to meet your needs and fit your budget !
