| Price: | US $ 999-3999/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1212 |
|---|---|
| Markets: | North America,Eastern Europe,Mid East,Western Europe |
| Product: | Ele 1212 Advertising CNC Router |
| Working Area: | 1200*1200mm( 1200*1800 for Option) |
| Spindle Power: | 1.5/2.2/3kw Water Cooling Spindle |
| Spindle Rotating Speed: | 24000rpm |
| Drive Motor: | Stepper( Servo for Option) |
| Inverter: | Fuling Brand ( Taiwan Delta for Option) |
| Control System: | DSP /Mach3/Ncstudio |
| X,Y,Z Axis Structure: | Ball Screw Imported From Taiwan |
| Frame: | Cast Iron |
| Tools Diameter: | Er11/Er20 |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Manual |
| Controlling Mode: | CNC |
| Certification: | CE |
| Color: | Blue |

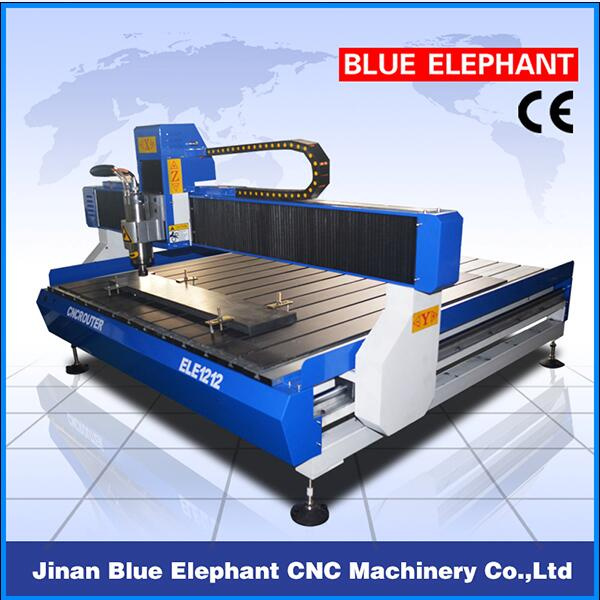

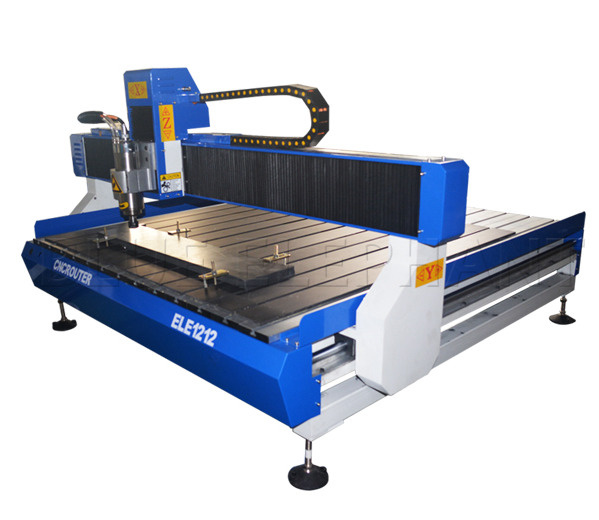

Cheap Wood Cut Cnc Router Machine 1212 Wooden Furniture Engraving CNC Router
Features:
1, Advertising CNC router with rotary device which can work on cylinder
2, Rotary device with max. 120mm diameter and 1200mm length
3, Mist cooling sprayer for working on metal
4, 1.5kw water cooling spindle with 24000RPM
5, NCstudio control system with USB interface
Application:
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors,interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object
Parameter
Working area | 1200*1200mm( 1200*1800 for option) |
Spindle | 1.5/2.2/3KW water cooling spindle(air cooling spindle for option) |
Spindle rotating speed | 24000RPM |
Motor | Stepper( servo for option) |
Inverter | FULING brand ( Taiwan DELTA for option) |
Control system | DSP /Mach3/Ncstudio |
X,Y,Z | Ball screw imported from Taiwan |
Table surface | Vacuum working table |
Frame | Cast Iron |
Positioning accuracy | ±0.02/300mm |
Repositioning accuracy | ±0.01mm |
Max. engraving speed | 6,000mm/min |
Max. motion speed | 8,000mm/min |
Tools diameter | ER11/ER20 |
Dictate format | G code,U00,mmg,plt/HPGL/NC |
Compatible software | Type3,Ucancam,ArtCAM |
Support software | Windows98/2000/XP |
Working supply | AC220V, 1 phase,50/60HZ(110V for option) |
Guarantee | One year |
option | vacuum table, dust collector, rotary device, mist sprayer, flume |
Application | Furniture, wood craft, decorative products, signs, building models, metal, embossed pictures. |
Technical support | 24 Hours technical support by email or calling User friendly English manual and Video CD for machine operation and maintain |
