| Price: | US $ 9800-12600set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 2030 |
|---|---|
| Voltage: | AC380V/50/60Hz, 3pH (Option: 220V) |
| Dimension(L*W*H): | 3200X2100X1980mm |
| X,Y,Z Working Area: | 2000X3000*200mm |
| Control System: | DSP A57 |
| Spindle Power: | 5.5kw Atc Water Cooling Spindle |
| Table Structure: | T-Slot&Vacuum Table |
| Transmission: | Taiwan Tbi Ball Screw |
| Spindle Speed: | 0-24000rpm |
| Drive Motor: | Lead Shine Mixed Servo System |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |

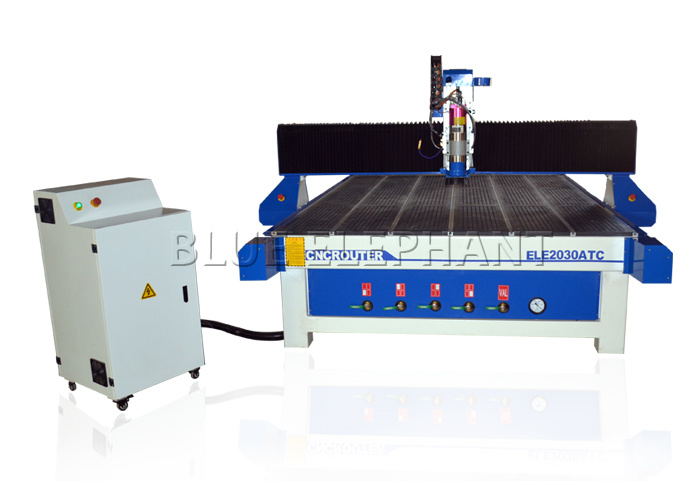

Cheap price 2030 atc cnc router , ceramictile engraving machine , big kitchen wood cutting machinery
Advantages:
1.Working area :2000*3000*200 mm for big size materials ,with 5.5 kw ATC water cooling spindle ,Changsheng brand ,top quality in China.
2.DSP A57 control system ,not need connect with computer ,very easy to operate .
3.Automatic tool change for four tools ,customized for customers ,work for different wood working.
4.X,Y,Z axis is with dusthood.
5.Mainly for MDF and wood cutting and engraving.
Features:

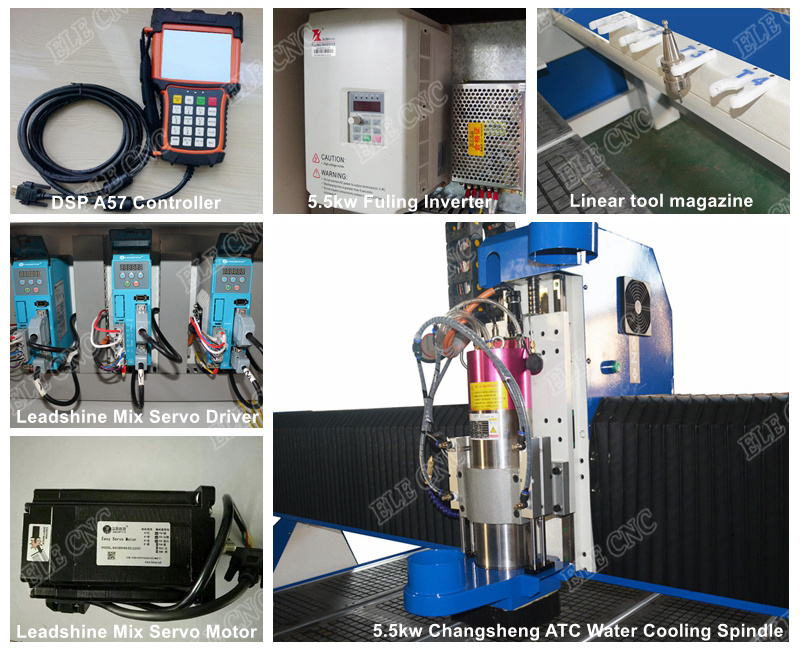

Main parts:
Technical Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 2000x3000x200mm |
| Spindle | 5.5kw Changsheng atc water cooling spindle |
| Inverter | 5.5kw Fuling Inverter |
| Motor driver | Leadshine mixed servo |
| Spindle Speed | 0-24000RPM |
| Control System | DSP A57 |
| Table Surface | T-slot vacuum Table |
| X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
| Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
| Lubrication system | Auto oil lubrication system |
| Command Language | G Code |
| Computer Interface | USB |
| Collet | BT40 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3 ,Artcam 2012 Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as
artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
Sample show:
Certificates

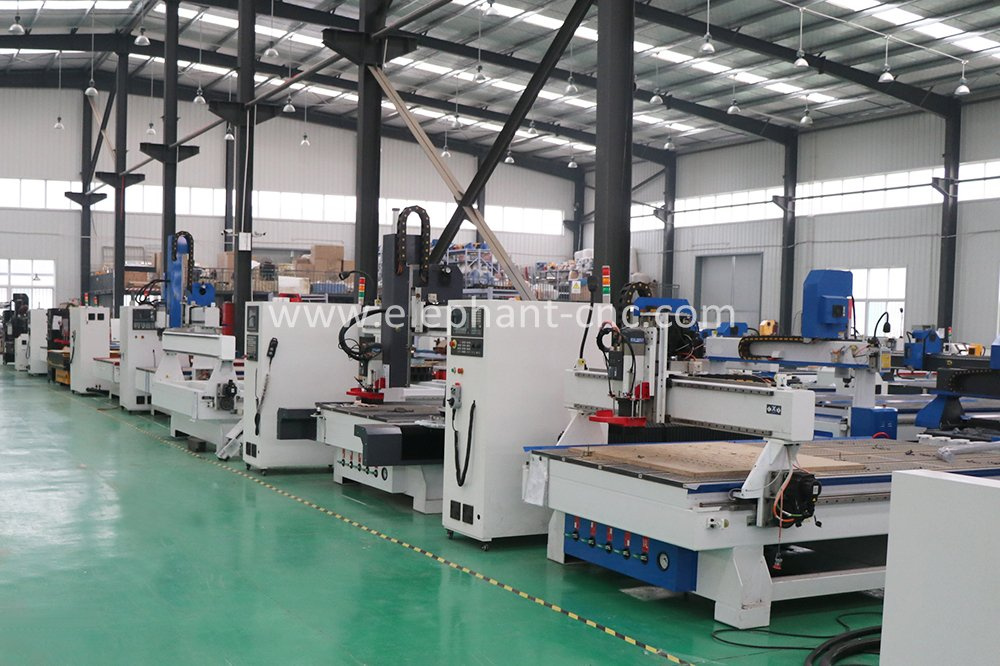

Our Factory
Contact us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com
