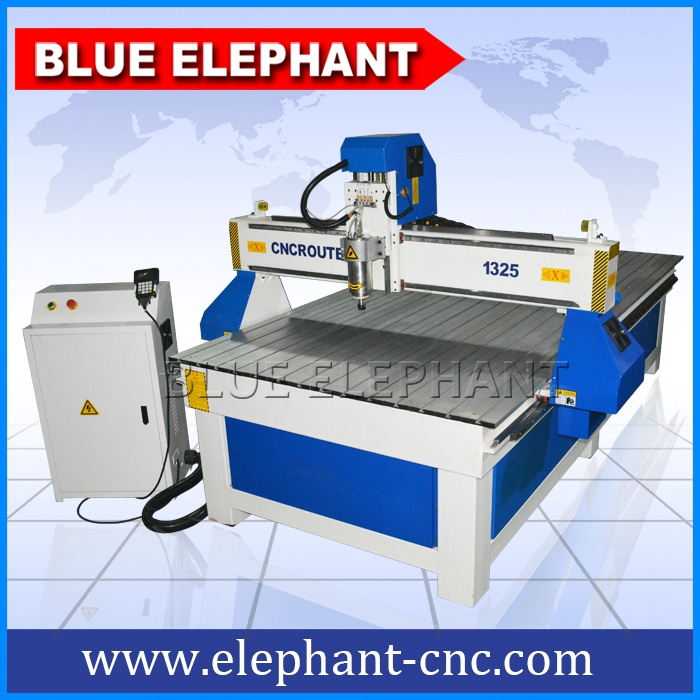

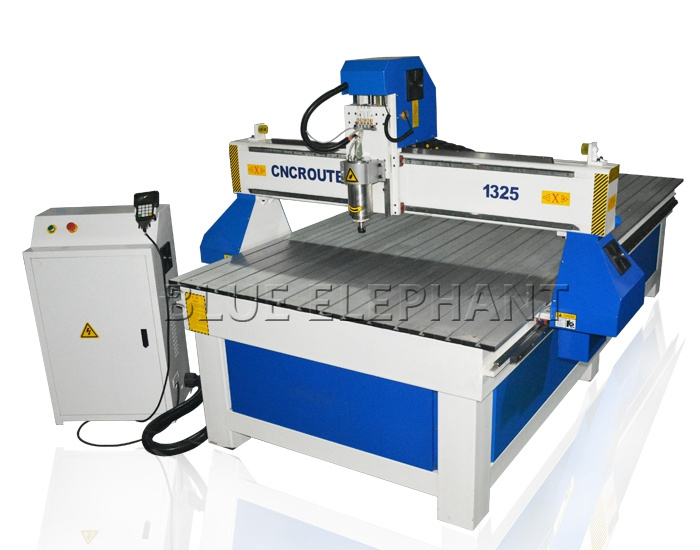

Blue Elephant Hot Sale 1325 Wood Engraver Machine for Wooden Door Making

Features:

• Working area: 1300mm*2500mm*200mm
• Steel gantry , strong structure
• 3kw Changsheng water cooling spindle
• 3.7kw Fuling inverter
• Z axis with Taiwan TBI Ball screw transmission
• X,Y axis with high precision helical rack gear transmission
• X,Y,Z axis with Taiwan TBI/PMI/HIWIN Linear Guide
• DSP A11 control ststem
• FL118 stepper motor , Leadshine 860H driver
• Artcam /Type 3 software
• Separate control box
• Voltage:380V, 3phase, 50/60HZ(220v for optional)


  Technical Parameters:


  X,Y,Z Working Area	1300x2500x200mm
  Table Surface	T-slot vertical Table
  Spindle	3kw water cooling spindle
  X, Y Structure	#20 Taiwan HIWIN Linear guide and helical rack
  Z Structure	TBI Ball screw and #20 Taiwan HIWIN Linear guide
  Driver and Motor	Stepper
  Software	Artcam /Type 3 software
  Spindle Speed	0-24000RPM
  Lubrication system	Manual
  Inverter	3.7kw Fuling Inverter
  Command Language	G Code
  Control System	DSP A11
  Computer Interface	USB
  Collect	ER20
  Software Compatibility	Type3 Software, (Option: Artcam Software)
  Running Environment  Temperature	0 - 45 Centigrade
  Relative Humidity	30% - 75%


  Application



  1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

  craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



  2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

  crystal word making, blaster molding, and other advertising materials derivatives making.



  3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as

  artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.



  4.relief sculpture and 3D engraving





  Sample show:




  Packaging and shipping:

  1.Outside Package:Standard export wooden case .

  2.Inner package:strech film .

  For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.



  For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.

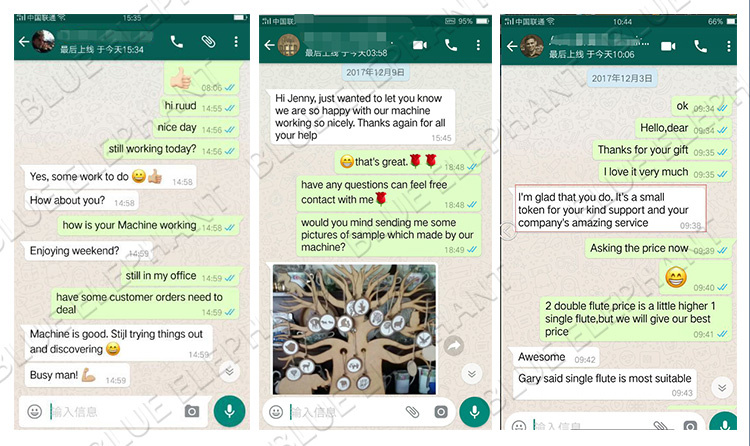

  Customers Feedback



  Our Services




  1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
  2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

  3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
  4, We offer 24 hours technical support by call, and email.
  5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
  6, We can record videos of operating the laser machine.
  7, Free training course in our factory.
  8.Machine will be adjusted before it is delivered , operation disk/CD was included.

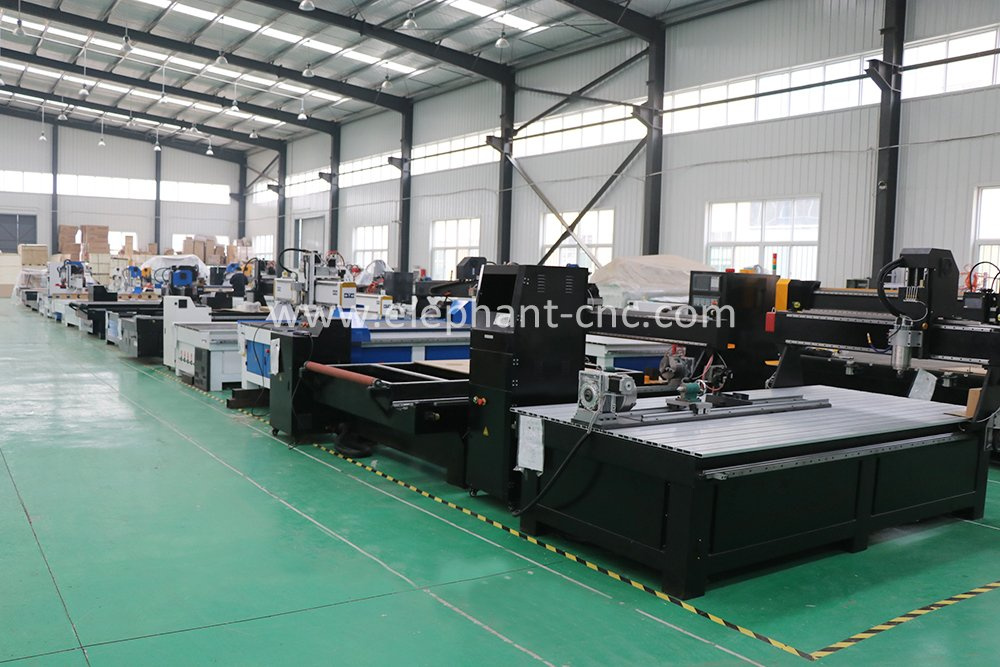

  Our Factory


   Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.

   We have our R & D department, Quality control department, and after sale & service department.
   Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.

   We had got CE and ISO9001 certification always offer  best  quality  machine.
   Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
    Just looking forward to service every customer, like you.
