| Price: | US $ 4999-9999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 2030 |
|---|---|
| Voltage: | AC380V/50/60Hz, 3pH (Option: 220V) |
| Dimension(L*W*H): | 3200X2100X1980mm |
| X,Y,Z Working Area: | 2000X3000*200mm |
| Inverter: | 5.5kw Fuling Inverter |
| Control System: | Ncstudio 63A |
| Spindle Power: | 5.5kw Atc Water Cooling Spindle |
| Table Structure: | T-Slot&Vacuum Table |
| Transmission: | Taiwan Tbi Ball Screw |
| Guide Rail: | 20# Hiwin Square Guide Rail |
| Spindle Speed: | 0-24000rpm |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |

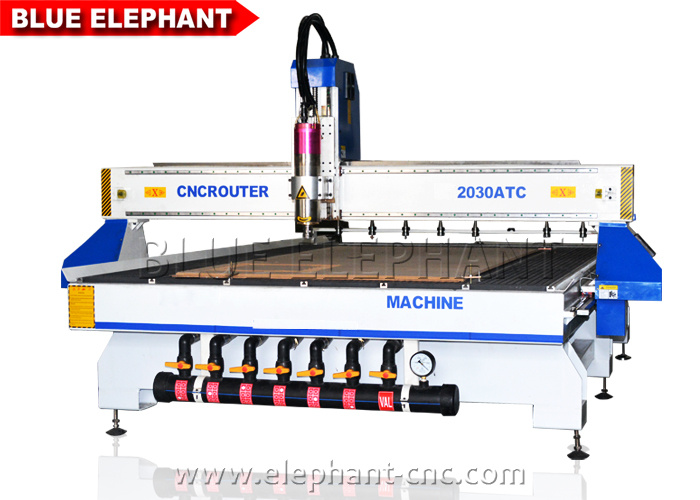

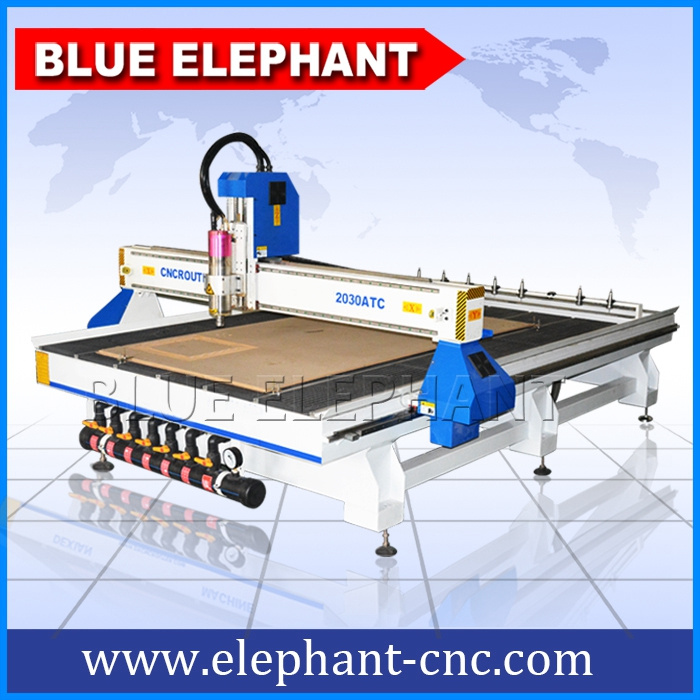

Blue Elephant cnc router for acrylic plastic , cnc router machine 2030 with price in India
Features:
Technical Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 2000x3000x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum & T-slot Table |
6 | Spindle | 5.5kw Changsheng ATC water cooling spindle |
7 | X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
8 | Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
9 | Driver and Motor | Stepper |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Software | Artcam /Type 3 software |
13 | Spindle Speed | 0-24000RPM |
14 | Lubrication system | Manual |
15 | Inverter | 5.5kw Fuling Inverter |
16 | Command Language | G Code |
17 | Control System | Ncstudio 63A |
18 | Computer Interface | USB |
19 | Flash Memory | 512M(U Disk) |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as
artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving

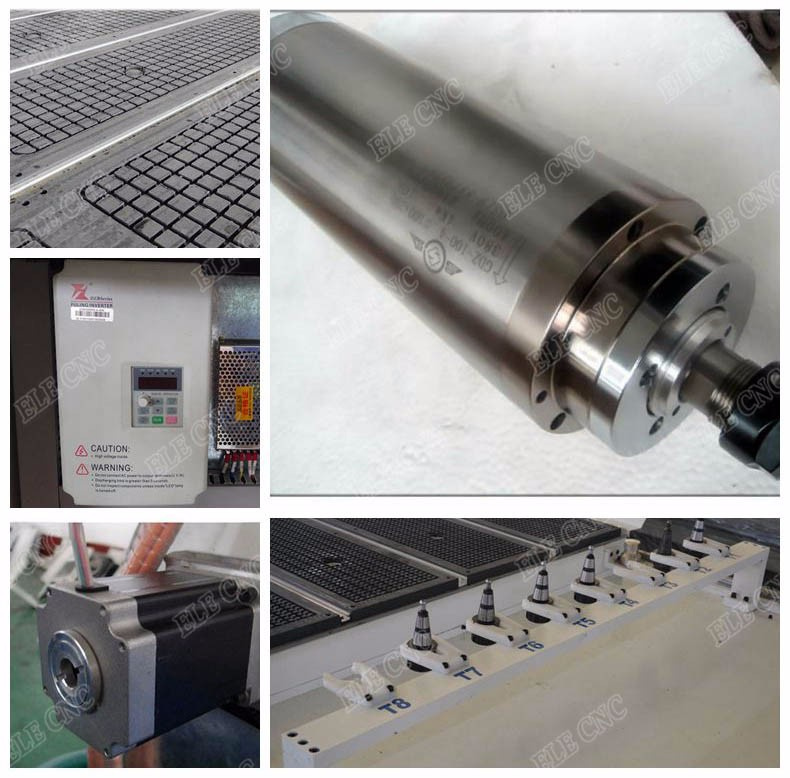

Main parts:
Sample show:
Packaging and shipping:
1.Outside Package:Standard export wooden case .
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
