| Price: | US $ 4999-9999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

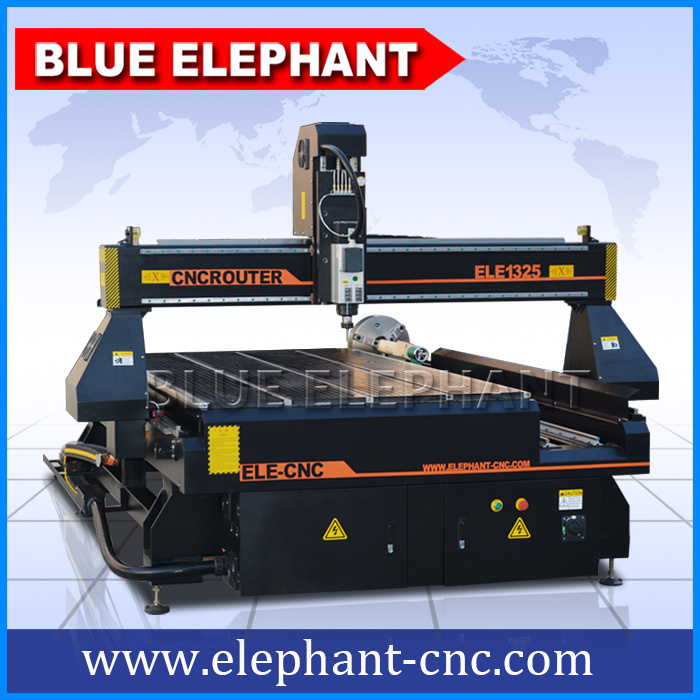

| Prod Model: | ELE 1325 |
|---|---|
| Voltage: | 220V, 1 Phase, 50/60Hz |
| Power(W): | 3kw |
| Dimension(L*W*H): | 3700*2140*1850mm |
| X,Y,Z Working Area: | 1300X2500X200mm |
| Control System: | DSP 4 Axis |
| Spindle Power: | 4.5kw Hsd Spindle |
| Inverter: | Taiwan Delta 5.5kw Inverter |
| Drive Motor: | Japan Yakaswa Servo Motors |
| Spindle Speed: | 0-18000rpm |
| Frame: | Welded Structure |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |
Features:
1).4.5kw HSD air cooling spindle from Italy
2).5.5kw DELTA inverter from Taiwan
3).Original DSP 4 AXIS control system
4).Japan YASKAWA servo motor
5).vacuum pump
6).Vacuum and T-slot working table
7).with rotary device

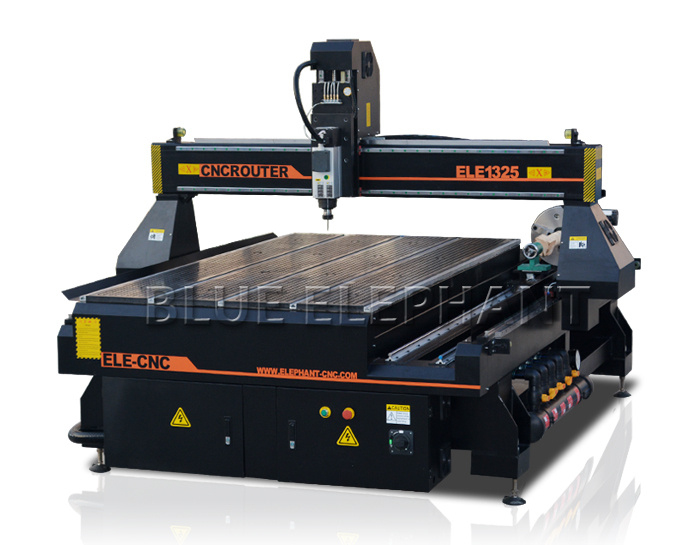

Parameter of cnc router pantograph
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x300mm |
| 2 | Table Size | 1480×3050mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot working table |
| 6 | Frame | 10-15mm Welded steel Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 3.2Kw |
| 10 | Max. Rapid Travel Rate | 37000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 6kw Italy HSD air cooling spindle |
| 13 | Spindle Speed | 0-18000RPM |
| 14 | Drive Motors | Japan Panasonic servo |
| 15 | Working Voltage | 380v, 3 phase, 50/60HZ (Option: AC220V/50/60Hz,3PH) |
| 16 | Command Language | G Code |
| 17 | Operating System | Mach3 4axis control System |
| 18 | Computer Interface | USB |
| 19 | Rotary device | 300mm diameter*2200mm length |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
Applicant of cnc router
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
There are some samples, our machine all can do it.

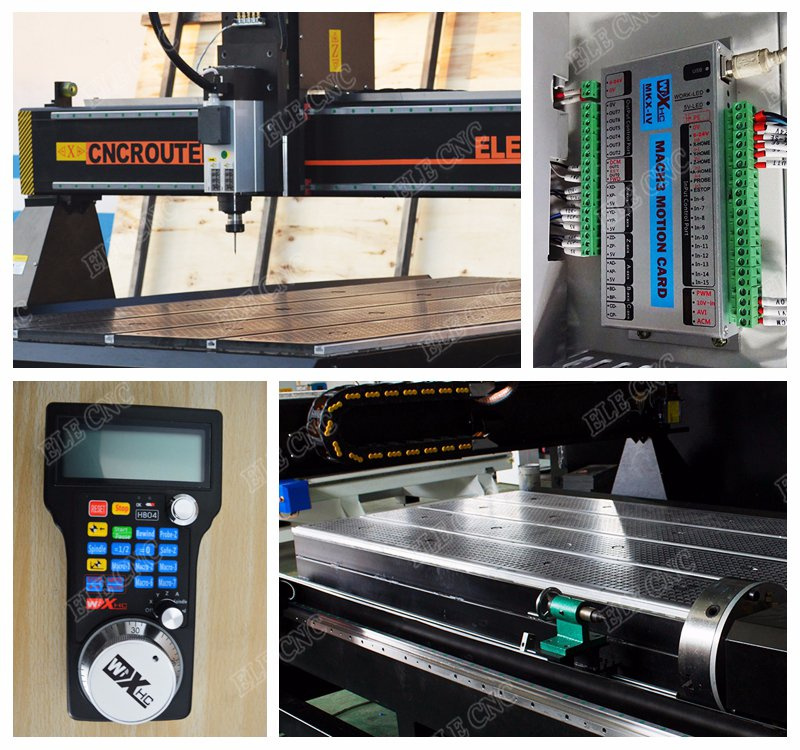

The machinery parts(standard and optional configurations)
We have any other models,and you can be customized it according to your processing material and working area.
3040(300*400*85)
6090(600*900*85)
1212(1200*1200*160)with rotation/sink/vacuum/vacuum clearer
1325(1300*2500*200) with ATC
1836(1800*3600*200)with 6 heads
separate double heads
one head with two spindles
and so on.
Its cutting or engraving material has wooden,stone,foam,glass,pcb,pvc and so on.
Other Informations
1. Guarantee & After-Sales Service
1.1 One year warranty under normal use and we supply maintenance for life for free.
1.2 24 hours technical support by phone, e-mail, SKYPE, MSN or Remote.
1.3 Free trainings to make sure you master the operation of cnc router.
1.4 English operation manual, popular and easy to understand.
2. Delivery Time (Production procedure)
2.1 For ELE 3 axis machine with standard specification, usually 20 days.
2.2 For ELE 4 axis machine with standard specification, usually 60 days.
2.3 For ELE 5 axis machine, OEM or non-standard models, usually 120 days.
3. Payment Terms
3.1 T/T in advance.
3.2 Western union: we can accept small payment (below $3000), but the banking charges shall be paid by the buyer.
3.3 L/C is acceptable if the amount is big. Please issue the L/C draft for our confirmation first.
4. How to Order?
Consult: we will recommend the most suitable machines to you after being informed by your requirements.
Quotation: We will supply you with our detail quotation according to our consulted machines, with the best quality and competitive price

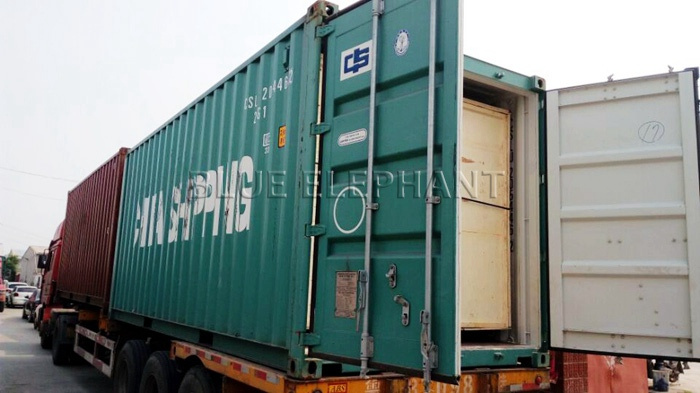

Package and shipment
Package: Standard cnc router plywood case
Shipping: Within 15 working days after receive your payment.
The way of shipment is Less than Container Load (LCD) and Full Container Load(LCD)

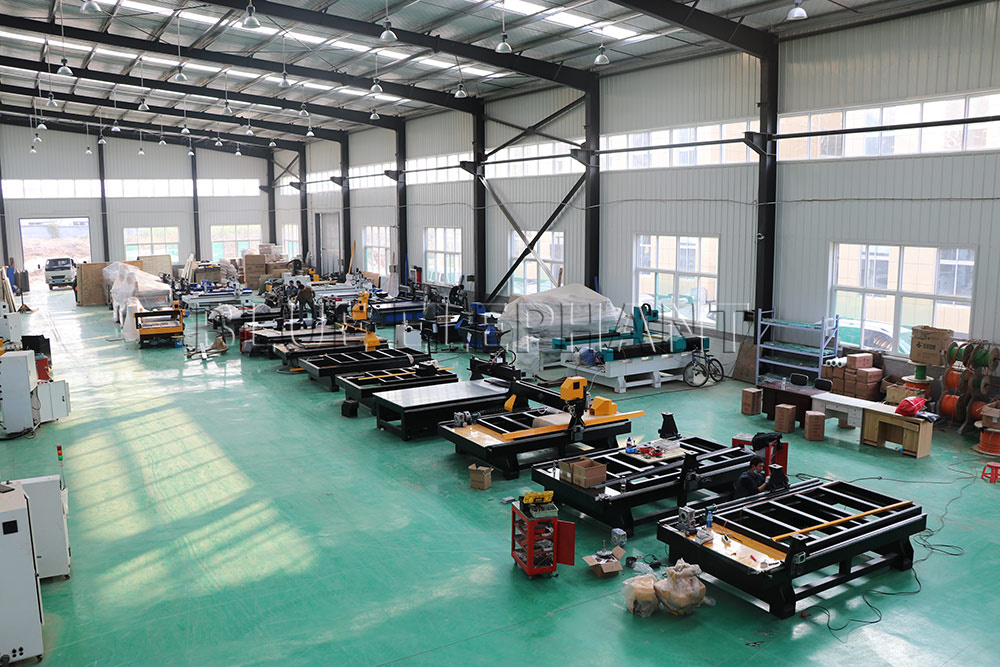

This is our factory, welcome to visit it.
