Product Specifications
| Prod Model: |
D5~D300 |
| Type: |
Corner Cube |
Product Description
There are many types of prism, each having a particular geometry to achieve the reflections necessary to perform a specific imaging task. Reflecting prisms may invert, rotate, deviate or displace a beam. Dispersing prisms produce spectral separation for spectroscopic.

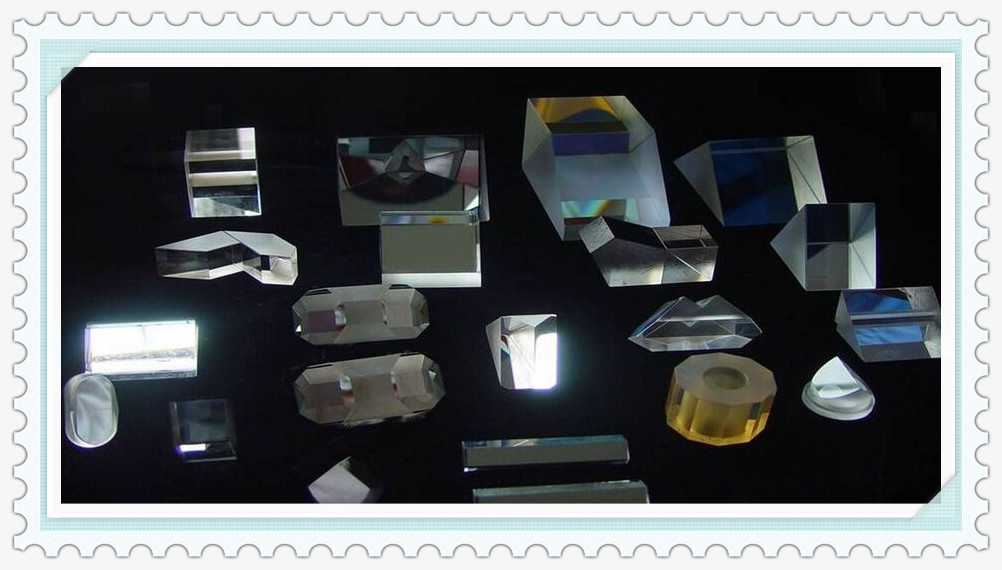

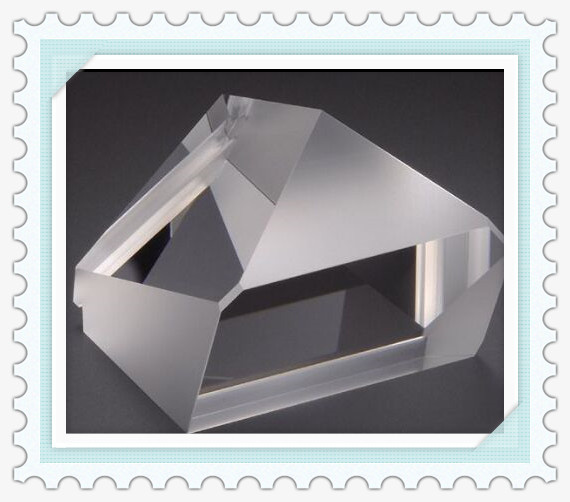

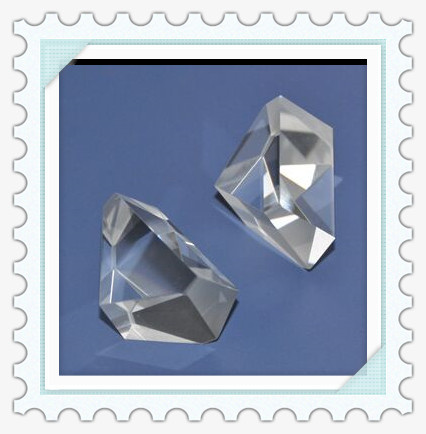

Qinhuangdao Intrinsic Crystal Technology Co., Ltd provides many kinds of high precision prisms, including Penta Prism, Beamsplitter Penta Prism, Dove Prism Right Angle Prism, and Corner Cube Prism,etc.
Tolerances:
Tolerances | Commercial quality | Precision quality |
Dimensions(mm) | +/-0.10 | +/-0.05 |
Scratch-Dig | 80-50 | 40-20 |
Power (λ) | 5/2λ | λ |
Irregularity (λ) | λ | 1/2λ |
Beam Deviation | 3 arc minutes | 0.5 minutes |
Pyramid Error | 3 arc minutes | 1 arc minute |
Right Angle Prism: are precision polished to light tolerances for more demanding applications. They are available in either BK7 or UV Fused Silica. BK7prisms are recommended for general laboratory use in the visible and near IR. For UV, infraved, or thermally sensitive applications Fused Silica prisms are advised. Our Fused Silica prisms are manufactured to exacting specifications and are useful from 0.16-2.10μm.
Right angle prism is deviating or deflecting a beam of light with 90° or 180°.It is often used in telescope, periscope and other optical system.
Dove Prism: has two applications. The main application is used as a rotator. It can rotate an image but without deviating the beam. And when the prism is rotated about the input parallel ray through some angle, the image rotates through twice that angle. It is very important that the application must be used with parallel or collimated beam and the large square reflective surface should be kept very clean. Another application is used as a retroreflector. For this application it perform as a right-angle prism.

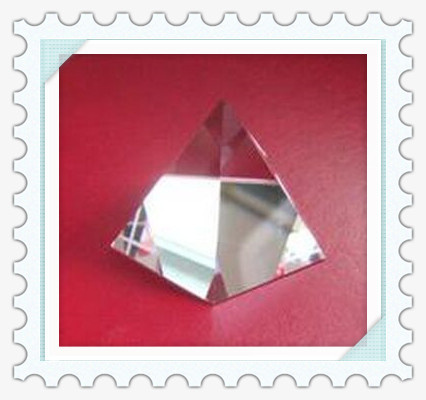

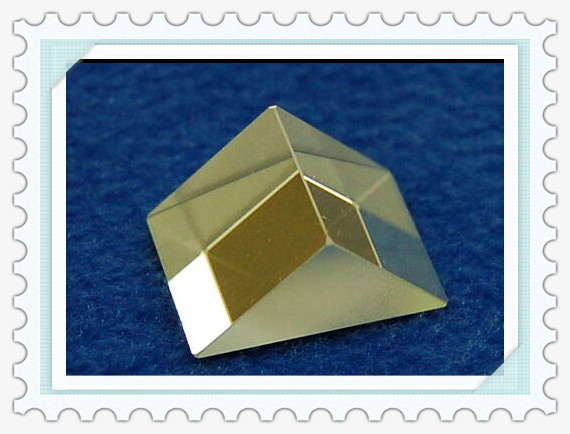

Corner Cube Prism: It has three mutually perpendicular surfaces and a hypotenuse face. Light entering through the hypotenuse is reflected by each of the three surfaces in turn and will emerge through the hypotenuse face parallel to the entering beam regardless of the orientation of the incident beam. For its special performance, it is often used to the distance measurement, optical signal process and laser interferometer.
Wedge Prisms have similar function with optical windows. They all can be used as isolating components. Wedges may be used to produce a small deviation, which don't allow return to the source.
Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.
Our Strengths
Ample, stable and cost-efficient supply of IR materials.
ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.
Consistent and high-performance manufacturing
During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.
The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.
Excellent quality and efficient service
From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.
Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.
Competitive Prices
ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.
Stable and reliable business partner
We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.
Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
