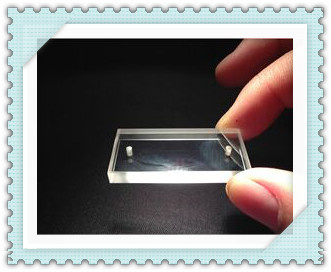

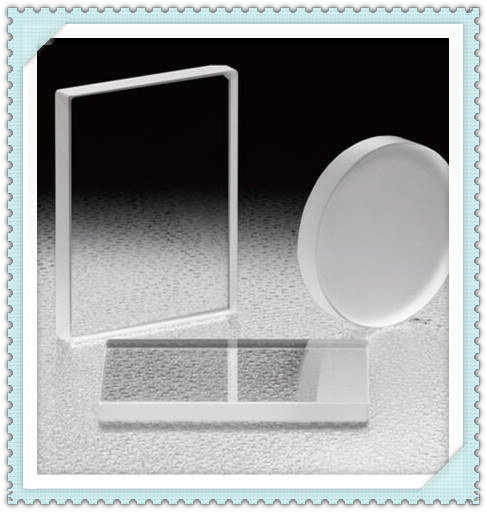

H-Bak7, Ge, Znse, Optical K9 Squarness Windows
| Price: |
US $ 20-60/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Product Specifications
| Prod Model: |
D5~D300 |
| Type: |
Flat Lens |
| Shape: |
Squarness |
| Material: |
H-Bak7, Ge, Znse, Optical K9 |
| Coating: |
Ar or Reflective Coating Upon Request |
Product Description
Product Detail
- Material: Optical Glass, CaF2, Mgf2, UV F.S., Si, etc.
- Surface Quality: 20/10,40/20,60/40
- Surface Flatness: Lambda/10,Lambda/8,Lambda/6, etc.
- Dimension: 3mm~200mm
- Dimension Tolarence: +/-0.01mm
- Parallelism: <30arcsec, <1arcmin, or Negotiate
- Coating: Coating as You Requirmetns.
Product Description
1.N-BK7A or UV F.S.
LxW | surface flatness | wavefront distortion | S/D | parallelism |
| 5mmx5mm~50mmx50mm | λ/10 | λ/8 | 10/5 | 2arcsec |
| 60mmx60mm~100mmx100mm | λ/8 | λ/8 | 20/10 | 5arcsec |
| 110mmx110mm~140mmx140mm | λ/4 | λ/6 | 40/20 | 5arcsec |
| 150mmx150mm~200mmx200mm | 1λ | λ/4 | 60/40 | 1arcmin |
2. Calcium Fluoride (CaF2)
LxW | S/D | RMS |
| 5mmx5mm~30mmx30mm | 10/5 | 10Å |
| 35mmx35mm~50mmx50mm | 20/10 | 10Å |
| 60mmx60mm~110mmx110mm | 40/20 | 10Å |
3. Silicon
LxW | S/D | RMS |
| 5mmx5mm~50mmx50mm | 20/10 | 5Å |
| 55mmx55mm~90mmx90mm | 40/20 | 5Å |
| 100mmx100mm~150mmx150mm | 60/40 | 5Å |
4. Zinc Seleide(ZnSe) or Gemanium(Ge) PS:ZnSe cylindrical lens is not available for Jiheng OPTICS.
LxW | S/D |
| 5mmx5mm~50mmx50mm | 40/20 |
| 60mmx60mm~90mmx90mm | 60/40
|
company profileQinhuangdao Intrinsic Crystal Technology Co., Ltd is the manufacture for the growth of crystal material, production of optical precision components and service of optical design.Qinhuangdao Intrinsic Crystal Technology Co., Ltd has been specializing in optics since established in 2008 that is located in a beautiful coastalcity-Qinhuangdao. Nowadays, our company has 150 employees, covered anarea of 15 thousand square meters, which owes top-ranking optical designstaff and excellent workers at the production line.Qinhuangdao Intrinsic Crystal Technology Co., Ltd is devoted to manufacture high quality optical material and precision optical components. It takes modern optics cold processing equipment, machine processing equipment and high precision testing equipment.Qinhuangdao Intrinsic Crystal Technology Co., Ltd well-known in optical fields because of its operation philosophy-all product in ICC company, competitive price with high quality since its establishment. Also, the products has been exported at home and abroad.We also welcome any customer design (OEM&ODM) or sample
Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.
Our Strengths
Ample, stable and cost-efficient supply of IR materials.
ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.
Consistent and high-performance manufacturing
During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.
The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.
Excellent quality and efficient service
From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.
Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.
Competitive Prices
ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.
Stable and reliable business partner
We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.
Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
