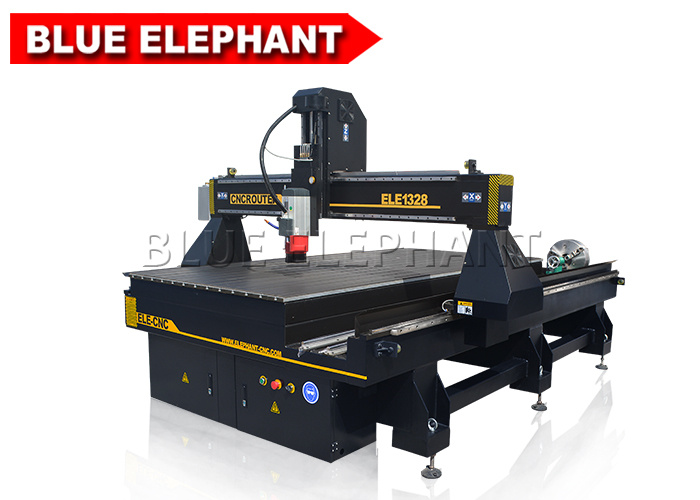

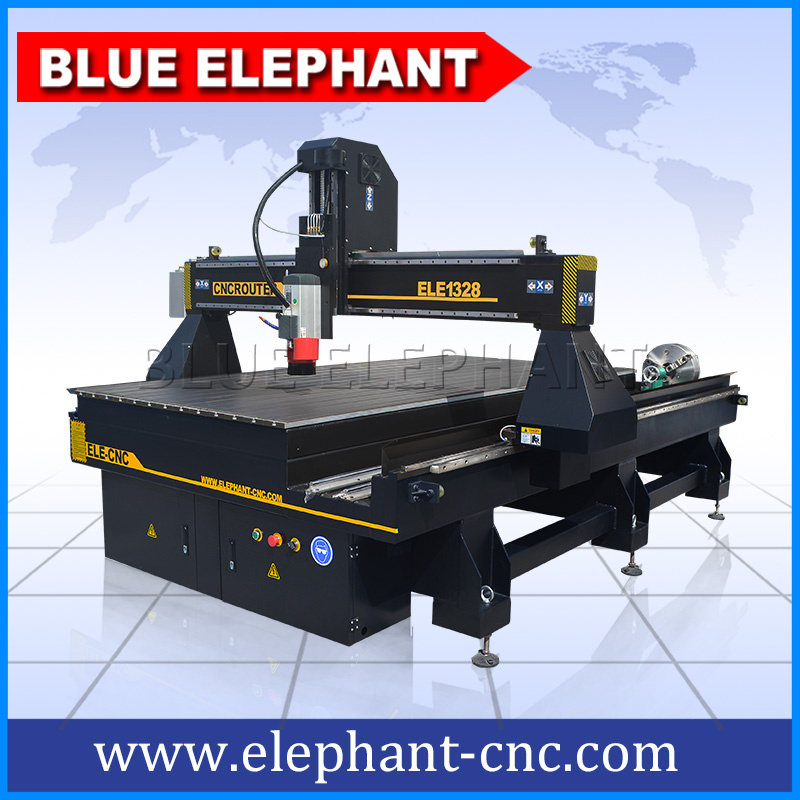

Best Woodworking CNC Router 1325 Wooden Furniture CNC Router

Best Woodworking CNC Router 1325 Wooden Furniture CNC Router
Price: US $ 5000-8000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

Product Specifications


Prod Model: ELE1328
Power(W): 1500 (2.2 Kw for Option)
Voltage: 220V 1pH
Moving Type: Gantry Moving
Gantry Moving: 1500W Water Cooling Spindle
Table: T-Slot Table
Driver: Yako2608 Big Driver
Transmission: Tbi Ball Screw
Orbit: Taiwan Hiwin Linear Guide
Control System: Mach3 4 Axis Control System
Software: Ucancam / Artcam/Type3
Spindle Layout: Spindle Over
Spindle Number: Single-Spindle
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: SGS BV TUV

Product Description

Best Woodworking Cnc Router 1325 Wooden Furniture Cnc Router

Advantage:

  • 10~12mm thickness Industrial class square tube heavy duty structure.
  • 6kw Original Italy HSD air cooling spindle. International famous brand and good using.
  • 300mm diameter rotary axis, specially designed used for cylinder objects 3D wood carving

The working table of this type is 1300*2800mm, but we can customize according to your requirement, if you are looking for 4 axis cnc router, this type is much more economic, very suitable for mdf wood aluminum cooper etc 3D craft, home decoration(stair hand rail) etc cutting and carving.



Features:

  • 1300*2830*300mm working size
  • 6Kw Italian HSD air-cooling spindle
  • 7.5kw DELTA inverter
  • T slot and vacuum table
  • Stepper motor FL118 YAKO2811 driver
  • Mach3 control system for 4 axis
  • 300mm diameter rotary device 2800mm working length

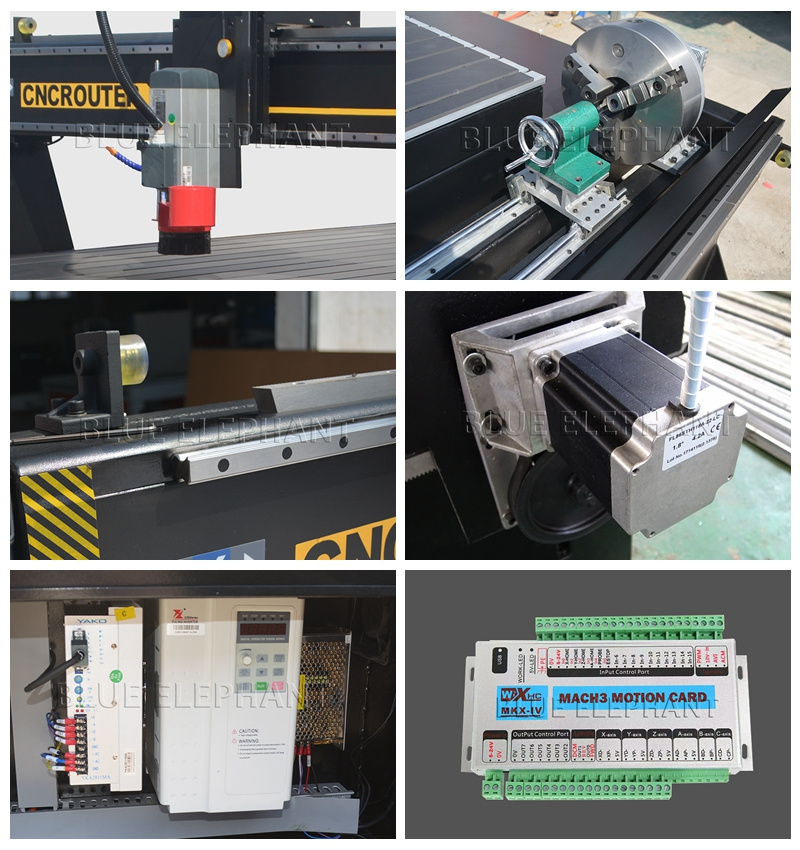

Details:


Technical parameter:

Description

Parameter

X,Y,Z Working Area

1300x2830x300mm

Table Surface

T-slot working table with pvc protection

Frame

Welded Structure

X, Y Structure

#20 HINWIN/ABBA linear guide, helical rack

Z Structure

Hiwin/ABBA Rail Linear guide and Ball Screw

Spindle

6kw Italy HSD air cooling spindle

Spindle Speed

0-18000RPM

Drive Motors

FL118 stepper motor and Yako 2811 big driver

Working Voltage

AC220V, 60Hz, 1PH (Option: 380V)

Operating System

Mach3 4 axis control system

Control box

Inner box

Inverter

7.5kw Fuling inverter

Lubrication system

Automatic lubrication system

Rotary device

Diameters: 300mm ; Length: 2830mm

X,Y Resolution

<0.01mm

PS: All the working area and specifications can be customized according to your requests.

Optional Parts

1. Oil/Water Mist Cooling Sprayer
It is suitable for cutting or engraving soft-metal (like aluminum and cooper), stone(marble) etc material, has cooling effect.

2. Spindle cover and Dust collector

They are designed for human operation protection and promise clean table surface, save maintenance time for you.

3. Pump

We can provide vacuum pump or water circulation pump for your choice.

4. Rotary Device
It can engrave cylindrical object.
The rotary device's diameter, length and position can be customized according to your requests.

We can also provide other optional parts according to your needs.


Spindle

Italy HSD Air Cooling Spindle
Top brand of the world. Spindle speed: 0-24000RPM

Inverter

China Famous Fuling Inverter
Humanized design: Carving machine specialized macro code factory set parameters, easy for debugging.

Motor and Drive

Stepper Motor FL118 stepper motor, big power.

YAKO 2608 Drive and Leadshine 860H Drive can run with smaller noise, lower heating, smoother movement and have better performances at higher speed

Control system

Mach3 Controller
It max support 4 axis. And it is usually used on advertising cnc router.

Transmission system

Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN or ABBA Linear Rail
HG series linear guideway can achieve a long life with high speed, highly accurate and smooth linear motion.

Working tableT-slot and Vacuum Table
Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.

Samples

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.
