| Price: | US $ 3999-6999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1325 |
|---|---|
| Voltage: | AC380V/50/60Hz,3pH (Option: 220V) |
| Dimension(L*W*H): | 3200*1840*1900mm |
| After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
| X,Y,Z Working Area: | 1300X2500*200mm |
| Spindle Power: | 3.5kw Changsheng Air Cooling Spindle |
| Control System: | DSP A11 |
| Inverter: | 3.7kw Fuling Inverter |
| Transmission: | Taiwan Tbi Ball Screw |
| Guide Rail: | #20 Hiwin Square Guide Rail |
| Spindle Speed: | 0-18000rpm |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |

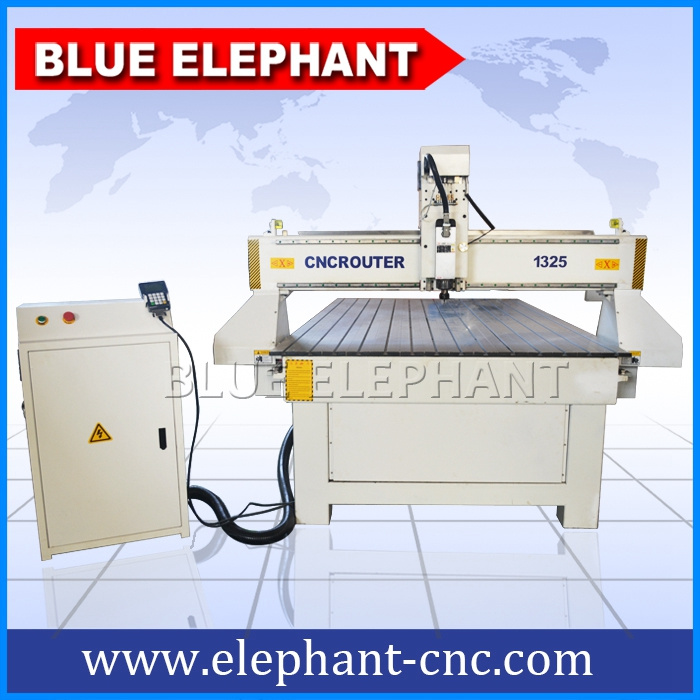

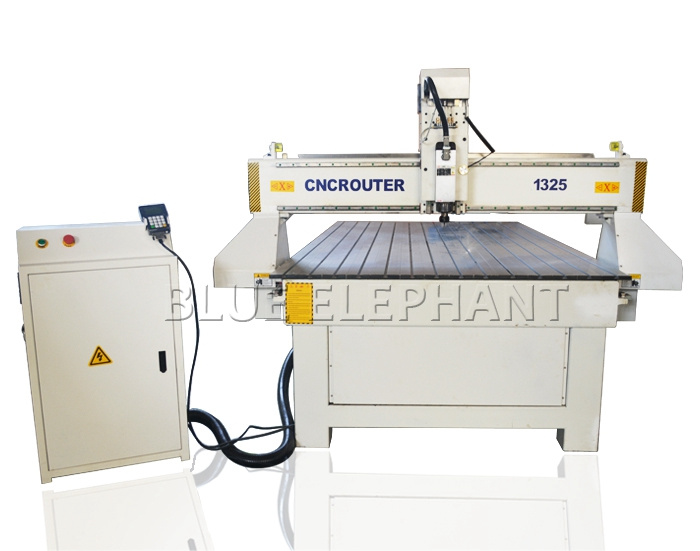

1325 combination woodworking machine , cnc machine router with best price
Features:

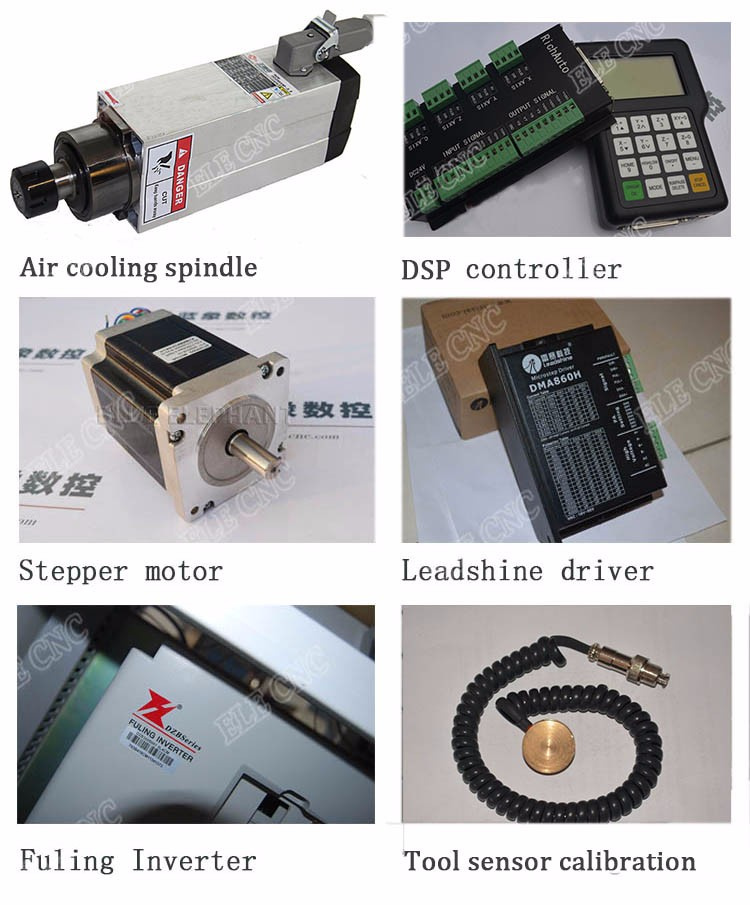

Technical Parameters:
| X,Y,Z Working Area | 1300x2500x200mm |
| Table Surface | T-slot Table |
| Spindle | 3.5kw Changsheng air cooling spindle |
| X, Y Structure | #20 Taiwan HIWIN Linear guide and helical rack |
| Z Structure | TBI Ball screw and #20 Taiwan HIWIN Linear guide |
| Driver and Motor | Stepper |
| Software | Artcam /Type 3 software |
| Spindle Speed | 0-18000RPM |
| Lubrication system | Manual |
| Inverter | 3.7kw Fuling Inverter |
| Command Language | G Code |
| Control System | DSP A11 |
| Computer Interface | USB |
| Collect | ER20 |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as
artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
Sample show:
Packaging and shipping:
1.Outside Package:Standard export wooden case .

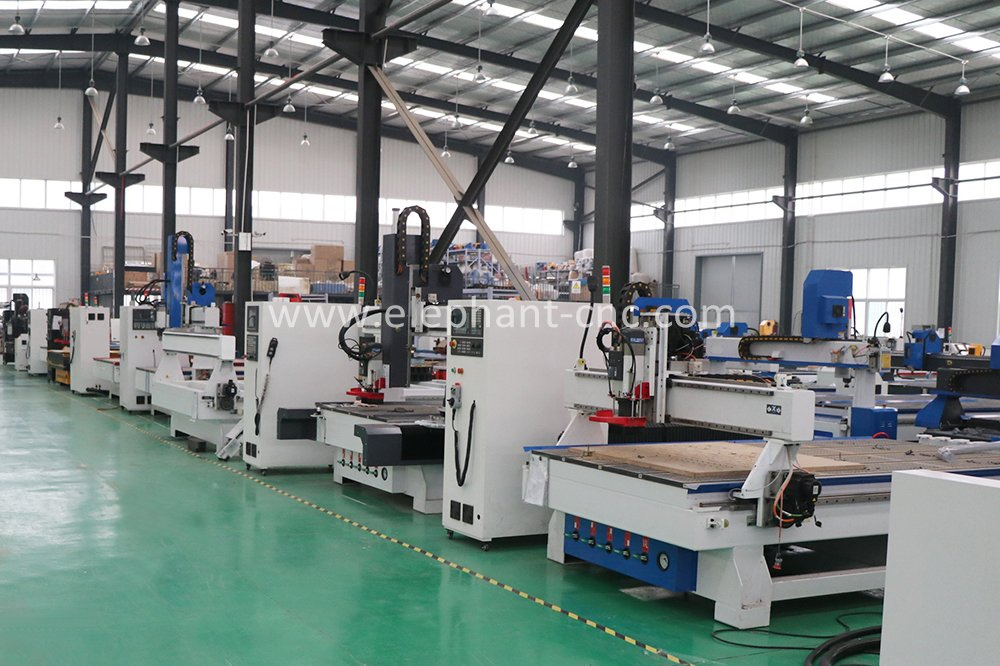

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
We have our R & D department, Quality control department, and after sale & service department. Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
We had got CE and ISO9001 certification always offer best quality machine.
Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
Just looking forward to service every customer, like you.
Please contact us ,
So we can help you select the right system to meet your needs and fit your budget !
