Automatic Feeding Fabric Laser Cutting Machine
| Price: |
US $ 4500-9000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
FMJ1610 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
CNC |
| Current: |
AC |
| Laser Type: |
CO2 |
| Laser Tube Power: |
80W-100W-130W-150W |
| Cooling Mode: |
Water-Cooling and Protection System |
| Working Voltage: |
220±10%50Hz(60Hz) |
Product Description

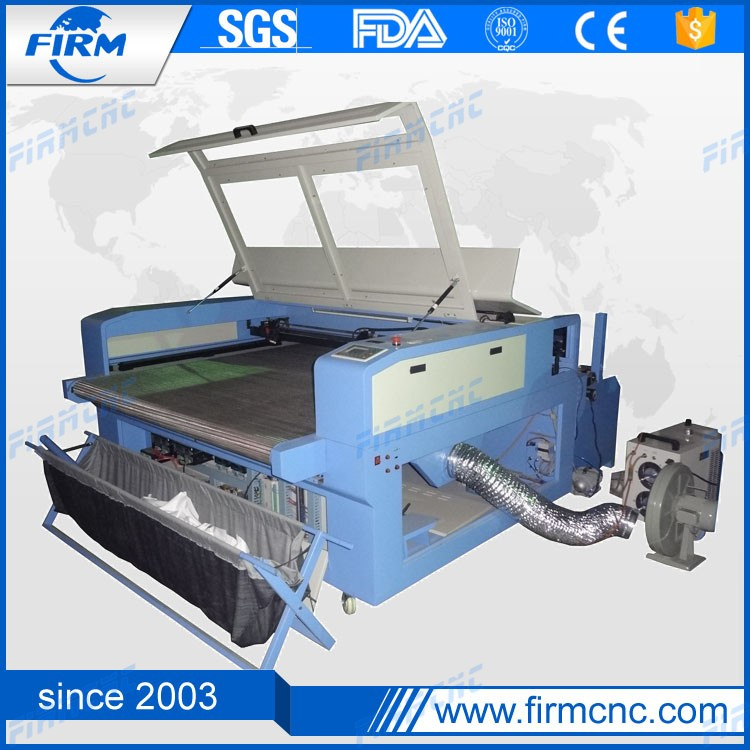

Automatic Feeding Fabric Laser Cutting Machine
This is automatic fabric laser cutting machine, with two reci 80w laser tube, have cloth roll stand to automatic feeder materials,
mainly used to cut soft materials such as fabric,cloth, leather etc
About us
we are professional laser machine manufacturer, all kinds of machines for your choose, such as:| Option | FMJ9060 | 900* 600mm | Suitable for engraving |
| | FMJ1290 | 1200 *900mm | Engraving/ cutting acrylic |
| | FMJ1490 | 1400* 900mm | Engraving cutting plywood, acrylic |
| | FMJ1325 | 1300* 2500mm | Mainly used for cutting wood, plywood, thin metal plate, acrylic |
About machine
1/ standard 80w reci laser tube ( optional 60w, 100w, 130w, 180w etc)
2/ big size FMJ1610 . 1600* 1000mm, suitable for cutting cloth, paper, fabric, leather
3/ cw5000 water chiller to cooling laser tube, make sure long service life, step motor, more efficiency and high precision
4/ leetro control system, easy to operation
5/ fulong belt drive, imported focus lens and reflecting mirrors.
6/ HIWIN Linear Rail, durable rubber belt, which can assure high cutting precision.
Technical Parameters of automatic fabric laser cutting machine| No | Model | FMJ1610 |
| 1 | Effective working size | 1600* 1000mm |
| 2 | Laser power | Two 80w RECI laser tube |
| 3 | Laser type | CO2 laser tube |
| 4 | Engraving speed | 0-20m/min |
| 5 | Cutting speed | 0-8m/min |
| 6 | Working accuracy | ±0.005mm |
| 7 | Laser tube lifetime | RECI laser tube:10000h |
| 8 | Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
| 9 | Operation temperature | 0 - 45°C |
| 10 | Operation humidity | 5 - 95% |
| 11 | Guide rail | Taiwan HIWIN square rail |
| 12 | Motor | Step motor and driver |
| 13 | Control system | LEETRO control |
| 14 | Table structure | Honeycomb table |
| 15 | Dust collector | 550W x air exhaust fan with tube ducts |
| 16 | Transmission way | Shanghai Fulong Belt drive |
| 17 | Min. shaping character | Character 2*2mm, English 1 x 1mm |
| 18 | Graphic format supported | PLT, DXF, BMP, AI, DSP |
| 19 | Software supported | CorelDraw, Photoshop, AutoCAD |
| 20 | Driving system | 3 Phases stepper motor |
| 21 | Cooling system | Water pumb/Water chiller |
| 22 | Water chiller | CW5200 |
| 23 | Recommended spare part | Laser tube and lens |
| 24 |
Main configuration | 1X Laser tube |
| 1set X Mirror and lens |
1XWater chiller 1X EXHAUST FAN 1x exhaust fan smoke pipe,
1X water pipe |
1x USB cable 1xcommunication cable
1x CD(PHCAD software 5.76 english version) |
1. Red dot pointer------ Provides a visible means of determing engraving location
2. High quality guide rail---HIWIN Brand
3. Auto up-down table------easy to put any thickness items onto the working table, cut different thickness materials.
4. Auto focus------easy to get the best result of laser
5. Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision stepper-motor
6. Water cooler for the CO2 laser-----exhaust fan, and air pump are all included in the price, as are personalized training,
7. USB Intelface-----U-Flash Disk Supported, Machine will read files from memory, stick, you can work even without a PC.
Application of laser cutting machine| | Engraver (co2 laser ) | Cut (co2 laser ) |
| Wood | √ | √ |
| Glass | √ | NO CUT |
| Acrylic | √ | √ |
| Ceramic | √ | NO CUT |
| Cloth | √ | √ |
| Leather | √ | √ |
| Rubber | √ | √ |
| Paper | √ | √ |
| Marble | √ | NO CUT |
| Matte Board | √ | √ |
| fiberglass | √ | √ |
| Wood veneer | √ | √ |
| Garments | √ | √ |
| Tile | √ | NO CUT |
| Pressboard | √ | √ |
| Plastic | √ | √ |
| Cork | √ | √ |
| Corion | √ | √ |
| Mylar | √ | √ |
Available Materials of laser cutting machine
1. Advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting,
rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving,
Gum engraving, EVA materials engraving, paper engraving and cutting.
2. Wood material: wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving.
3. Garment material: leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving,
jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting.
Our Services
Perfect afterafter Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

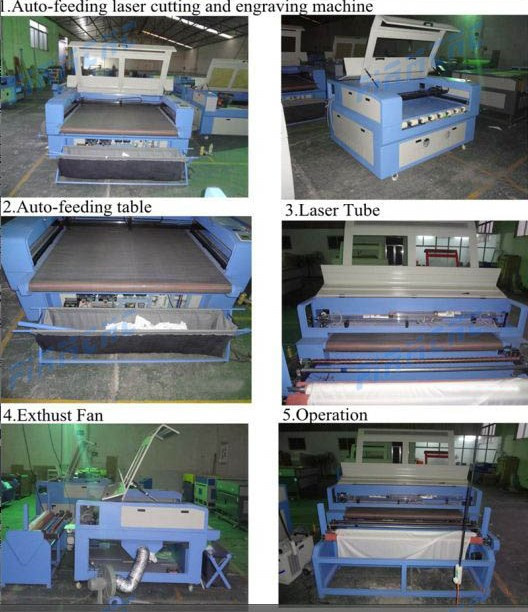

Laser cutting machine condition
1. Every machine need to be passed 48 hours up to 72 hours operational testing before send out
2. Machine warranty is one year
3. Laser tube warranty
(1)Normal laser tube warranty is 3months ,working time is about 1500-3000 working hours
(2)RECI brand laser tube warranty is 8 months ,working time is about 8000-10000working hours

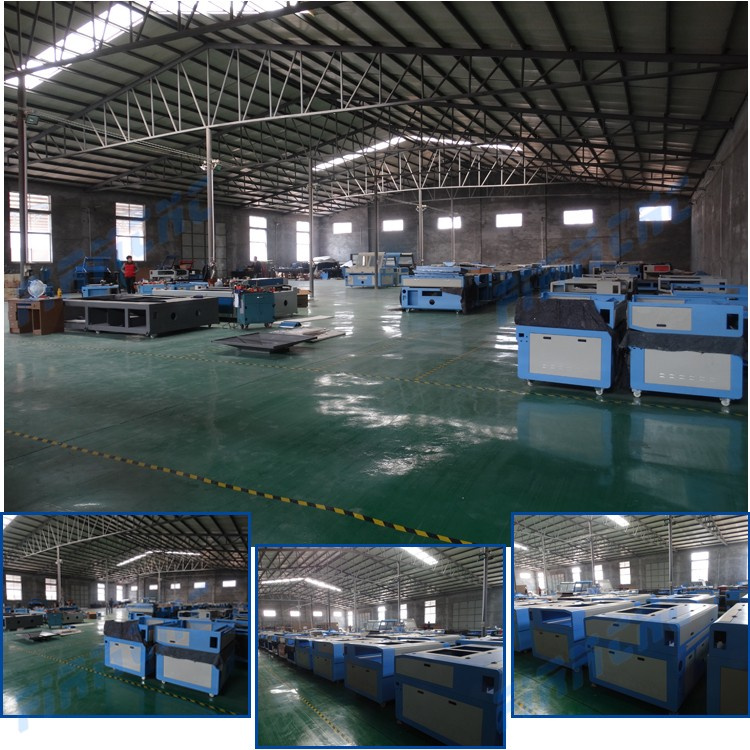

Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser machine appliances.

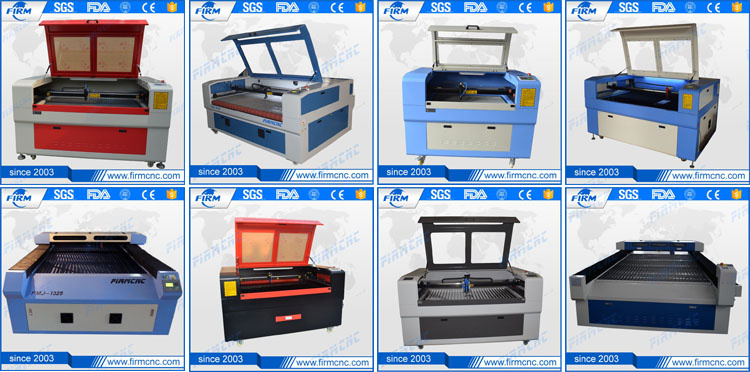

Other related laser machine for your choose
Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information
FAQ
1.Can you recommend a plasma machine to me ?
Yes, In order to give you a suitable plasma machine,pls tell me the max working area, materials for processing and the thickness
for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
