Atc Woodworking CNC Machine, Woodworking Machine CNC Router Ele 1530
| Price: |
US $ 15000-21000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE 1530 |
| Voltage: |
AC380V/50/60Hz, 3pH (Option: 220V) |
| Power(W): |
12.5kw |
| Warranty: |
12 Months |
| Dimension(L*W*H): |
1500*3000*200mm |
| Weight: |
1700kgs |
| Spindle Rotation Speed: |
0-24000rpm |
| Table Surface: |
T-Slot and Vacuum Working Table with 6 Zones |
| Driver Motor: |
850W Japan Yaskawa Servo Motor and 1kw Yaskawa Ser |
| Inverter: |
11kw Taiwan Delta Inverter |
| X Y Transmission: |
Taiwan Hiwin #25 Linear Guide with Helical Rack |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description

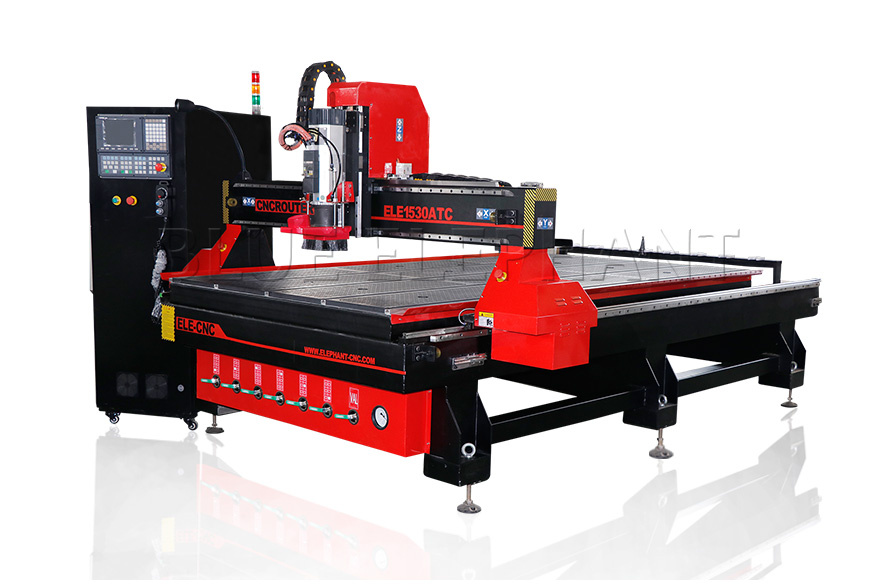

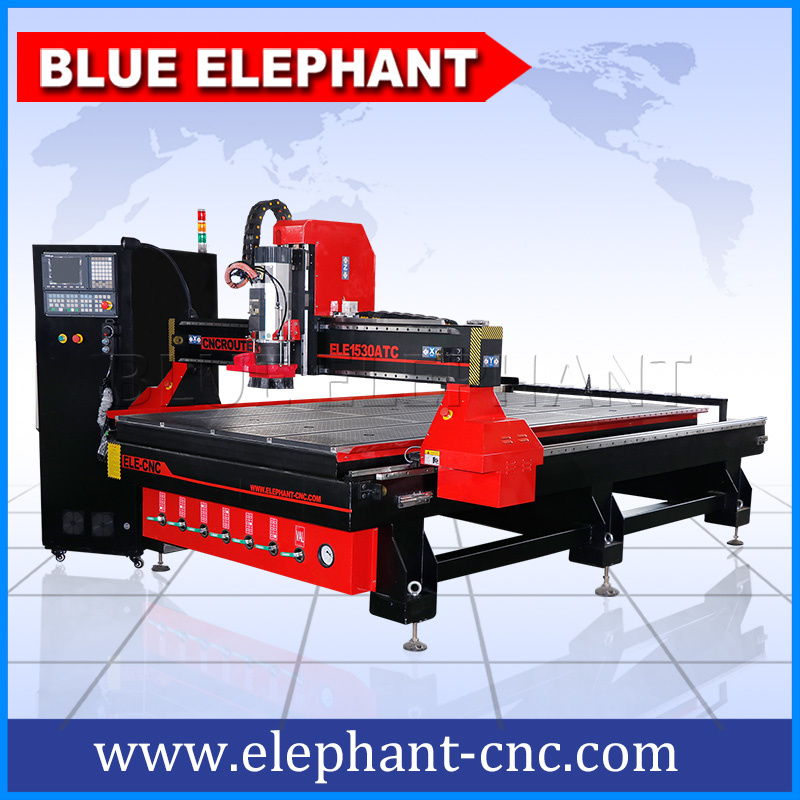

Atc Woodworking CNC Machine, Woodworking machine CNC Router ELE 1530
Advantages of mdf cutting cnc machine:
- Orginal 9kw HSD air cooling spindle, ES929, 24000RPM, has high work speed.
- Taiwan SYNTEC 6MB control system, support ATC function, also support 4 axis working at the same time.
- Orginal 850w Japan YASKAWA servo motor and 1kw driver, has high precison and long-life time.
Technical specification of mdf cutting cnc machine:
Model | ELE1530ATC |
X,Y,Z Working Area | 1500*3000*200mm |
Z axis travel | 200mm (according to your requests) |
Table Surface | Vacuum and T-slot working table with 6 zones |
Frame | Thicken steel Square Tube Heavy structure , 8mm thicken steel gantry with T type |
X, Y Structure | Helical Gear and rack transmission, Taiwan PMI Linear Rail #25 |
Z Structure | Taiwan TBI Ball Screw #2510, Taiwan PMI Linear Rail #25 |
Spindle Power | 9.0kw Italy HSD Air cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | 850w Japan YASKAWA Servo Motor & 1kw YASKAWA servo driver |
Working Voltage | 380V, 3Ph, 50Hz ( 220V for optional) |
Operating System | Taiwan SYNTEC 6MB control system |
Lubrication system | Small automatic oil lubrication system |
Tool sensor | Automatic tool sensor calibration |
Inverter | 11kw Taiwan Delta inverter |
| Dust collector | 1.5kw new type double pockets dust collector ( 380V, 3Ph, 50Hz) |
| Carousel magazine | 8*Position (Can be customized) |
PS:All the working area and specifications can be customized according to your requests.

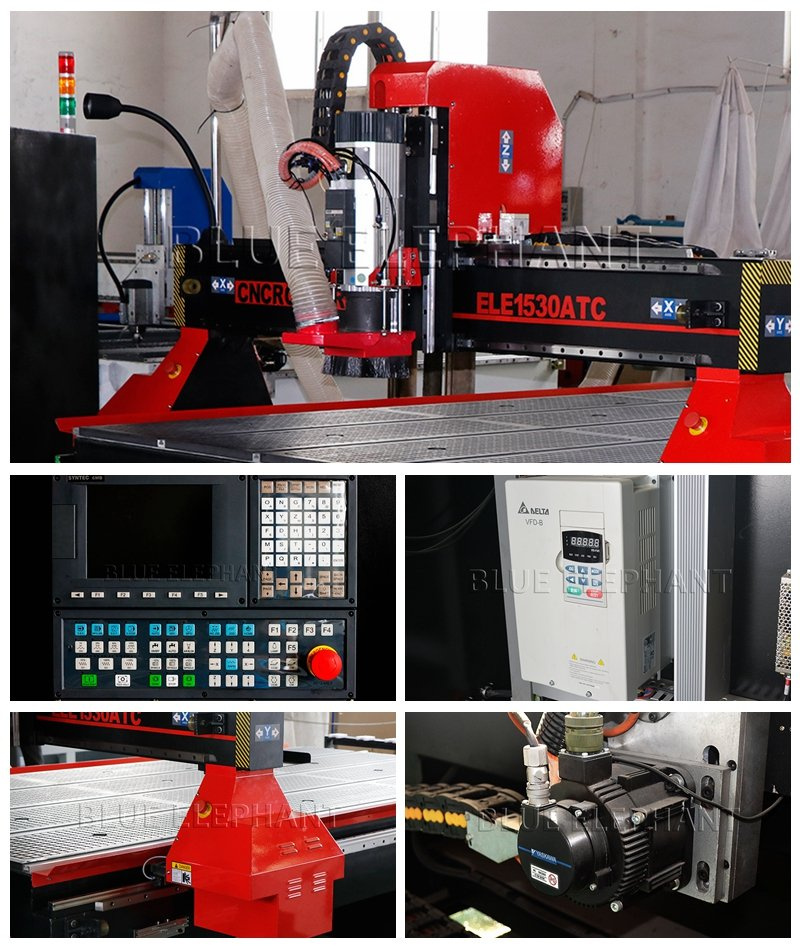

Machinery Parts of mdf cutting cnc machine:
Features of mdf cutting cnc machine:
- Effective working area 1500*3000 mm
- 8 linear tool position
- 9kw Italy HSD ATC air cooling spindle, 24000 rpm
- 11kw Taiwan Delta inverter
- Japan YASKAWA servo motors and drivers
- Taiwan SYNTEC 6MB control system
- PMI #25 linear square guide way for X,Y,Z axis
- Taiwan TBI ball #2510 screw for Z axis
- Vacuum table with 6 Zones
- Automatic Oil Lubrication System
- 1.5Kw dust collector with two bags,CE certification
- 380V,3phase,50HZ
- Wood packing
Applications:
- Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
- Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
- Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
- Relief sculpture and 3D engraving.
Samples:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
Feedback:
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

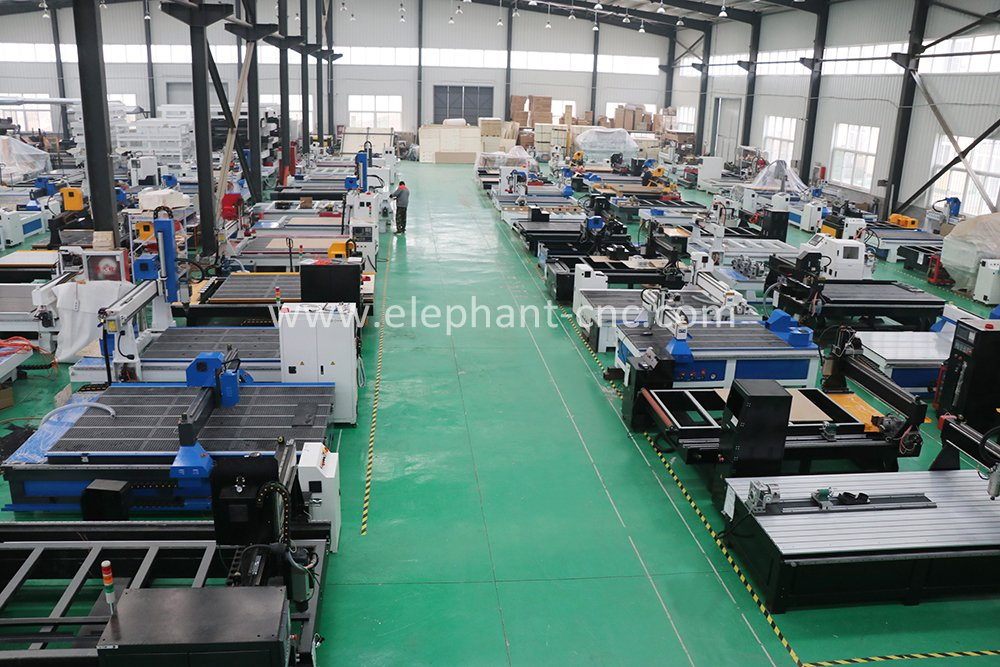

Welcome to our factory:
