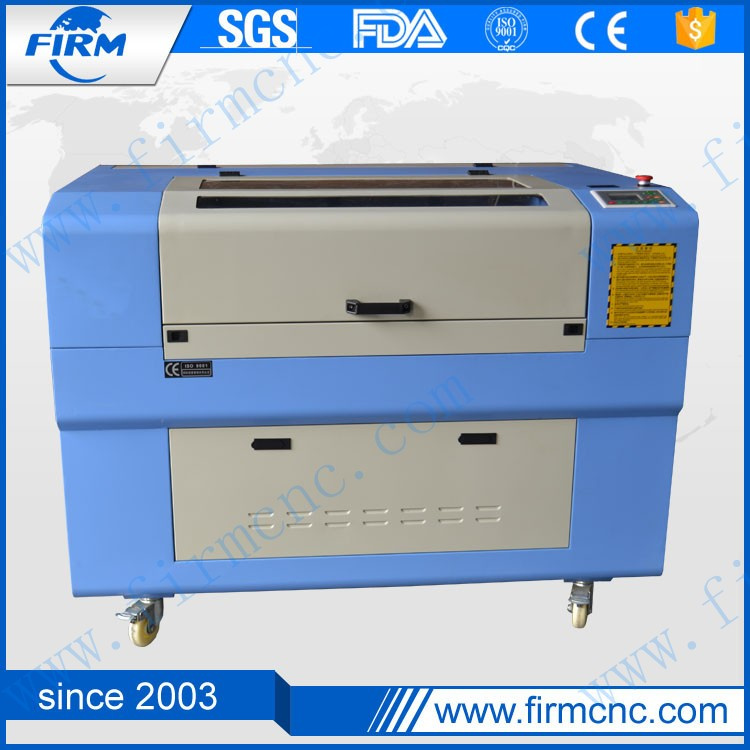

Advertising Laser Engraving Machine FM6090
| Price: |
US $ 2000/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram |
Product Specifications
| Prod Model: |
FM6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
CNC |
| Current: |
AC |
| Laser Type: |
CO2 |
| Usage: |
Rubber |
| Laser Power: |
60W, 80W, 100W, 130W |
| Engraving Speed: |
0-1200mm/S |
| Reposition Accuracy: |
± 0.01mm |
| X Y Guilding System: |
Linear Guide Rails |
| Driving System: |
Stepper Motors |
Product Description
Advertising Laser Engraving Machine FM6090
Available Materials
1. Advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting,
rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving,
Gum engraving, EVA materials engraving, paper engraving and cutting.
2. Wood material: wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving.
3. Garment material: leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving,
jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting.
Features
1.New design, High quality with competitive price.
2.Red light positioning, help find the work point, protect workers and improve work efficiency.
3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Special Front and back running-through design, the unique door for the limitless engraved materials through.
6. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
7. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display,
which can avoid over burning, to protect the water circulation from electricity-off.
8. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube,
Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
9. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision,
engrave 1×1mm little English character perfect.
10. Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;
11. Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.
Technical specification| Model | FMJ6090 |
| Working area | 900*600mm |
| Laser tube power | 60W 80W 100W 120W 130W 150W |
| Laser Type | CO2 sealed laser tube |
| Engraving Speed | 0-64000mm/min |
| Cutting Speed | 0-36000mm/min |
| Resetting positioning accuracy | ≤±0.01mm |
| Laser Output | 1-100% software setting |
| Cooling mode | Circulating-water-cooling and protection system |
| Machine control and drive | Speedy DSP controlling, stepper motor |
| Cutting Platform | knife-strip platform |
| Min. shaping character | Character2.0mm×2.0mm,English1.0mm×1.0mm |
| Power Supply | AC220V 50HZ |
| Operating system | DSP off-line control system |
| Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc. |
| Operating Temperature | 5°C-40°C |
| Operating Humidity | 5-95%(Free of Condensed Water) |
| Compatible Software | CorelDraw ,AutoCAD transmit directly |
| Optional Spare Parts | Rotary system, Industrial Chiller, Infrared Locating System,
Laser Tube, Up-down clump |
| Recommended Spare Parts | Laser Tube |

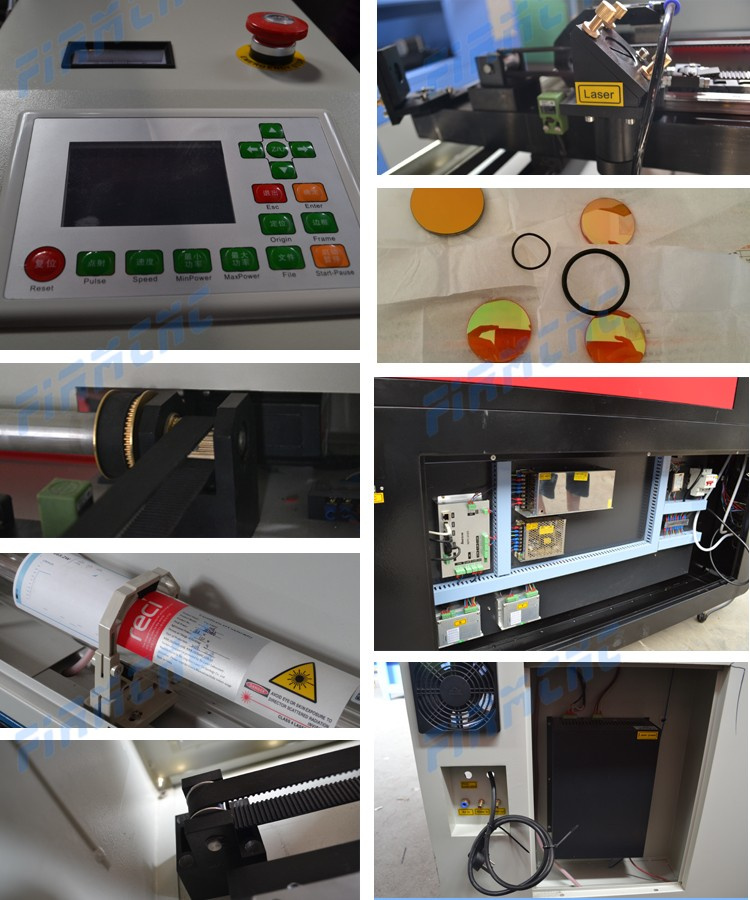

Main parts of mini laser engraving machine
Ruida control panel (optional Leetro control)
RECI co2 laser tube
Company Information

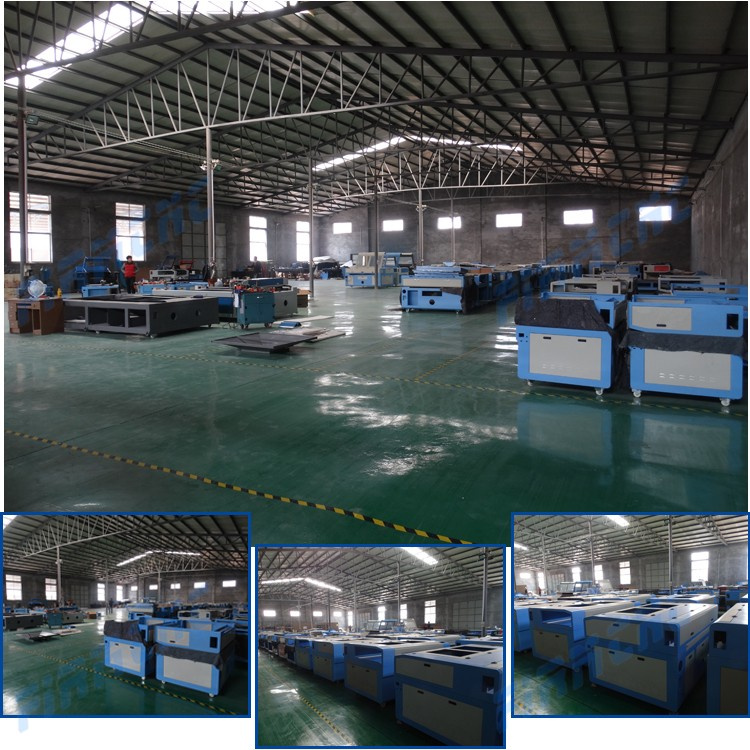

FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser machine appliances.

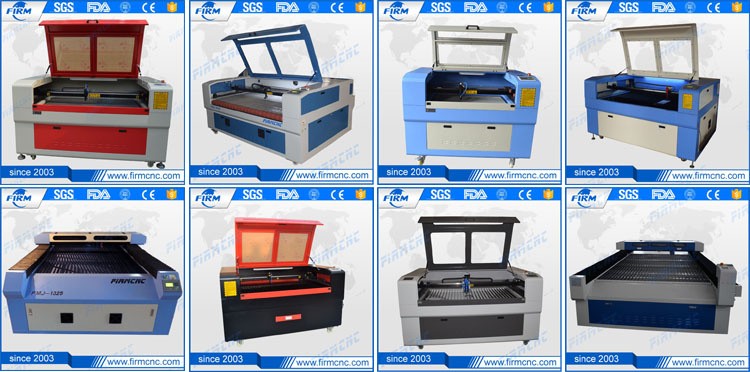

Other type laser machines for your reference
