Product Specifications
| Prod Model: |
XOLED1286408 |
| Drive Method: |
1/4duty,1/3bias |
| Polarizer Type: |
Transmissive / Negative /Glare |
| Operating Temp: |
-20--70 |
| Storage Temp: |
-30--80 |
| Voltage: |
Vdd:3.3V Vlcd:4.5V |
| Screen Size: |
≤17" |
| Application: |
Mobile Phone |
| Feature: |
3D Display |
| Response Time: |
16ms |
| 3D: |
3D |
| Interface Type: |
AV |
| Type: |
OLED |
Product Description
Features
| Diagonal Screen Size | 0.69inch |
| Color | Monochrome
(white/Blue) |
| Module Construction | COG |
| Number of Pixels | 96X16 |
| Active Area | 17.26X3.18mm |
| Pins | 14 |
| Drive IC | SSD1306 |
| Interface | 12C |
| Pixel pitch | 0.18X0.2mm |
| Assembly | Soldering |
Temperature rangeItem | Min. | Max. |
Operating Temperature (°C) | -40 | 70 |
Storage Temperature (°C) | -40 | 85 |

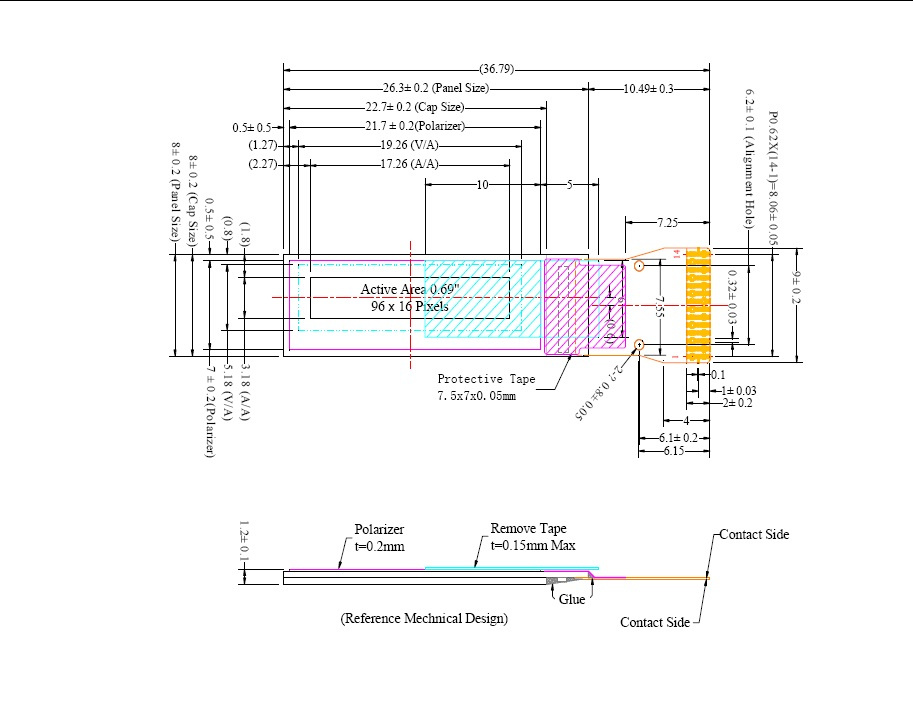

Outline Drawing

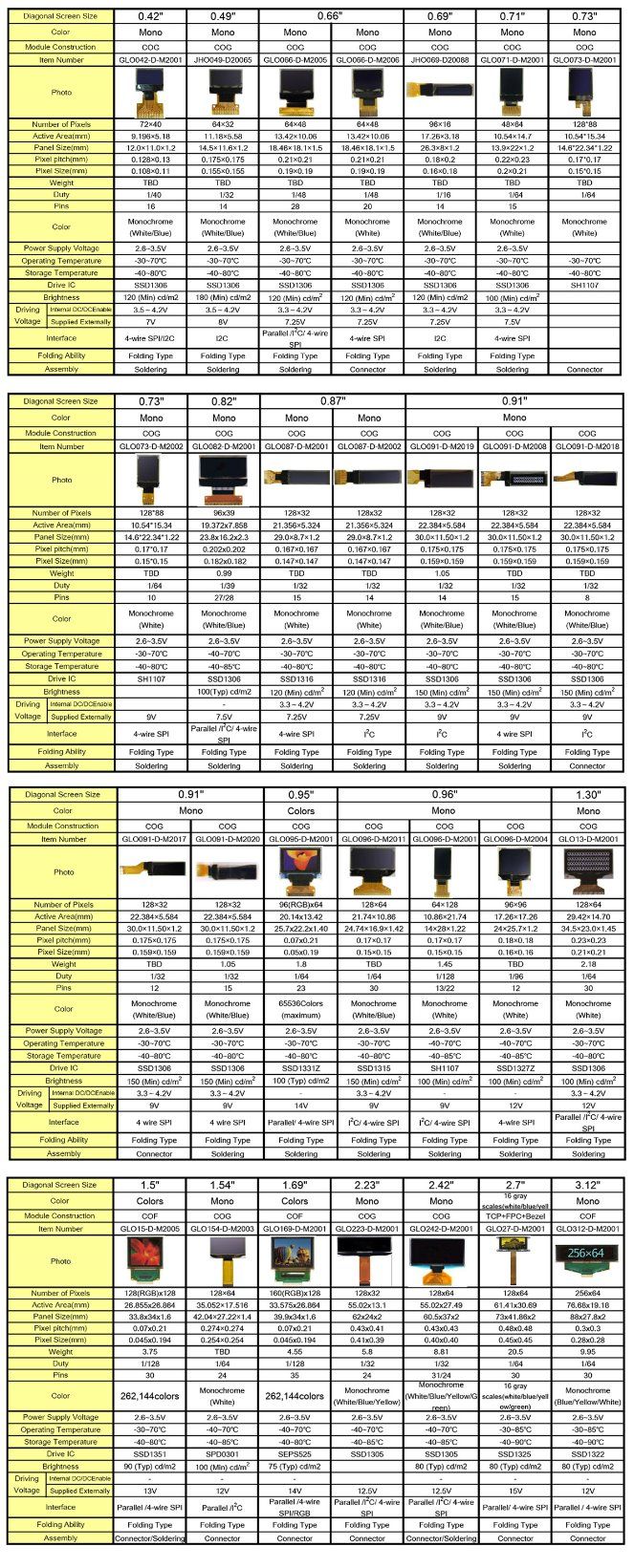

More products
