| Price: | US $ 2200/Piece |
|---|---|
| Trade Terms: | FOB,EXW,CIF |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Money Gram |
| Prod Model: | FM6090 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area(mm): | 600X900 |
| Transmission: | Hiwin Squire Rail |
| Spindle: | 1.5 Kw Watercooling Spindle |
| Engraving Speed: | 18000mm/Min |
| Gantry Height (From Table): | 150 mm |
| Control System: | DSP\Nc Studio |
| Inverter: | Fuling Inverter |
| Transmissions: | Taiwan Tbi Ball Screw |
| Motors: | Stepper |
| Table: | T-Slot |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | ISO |
| Color: | Blue |

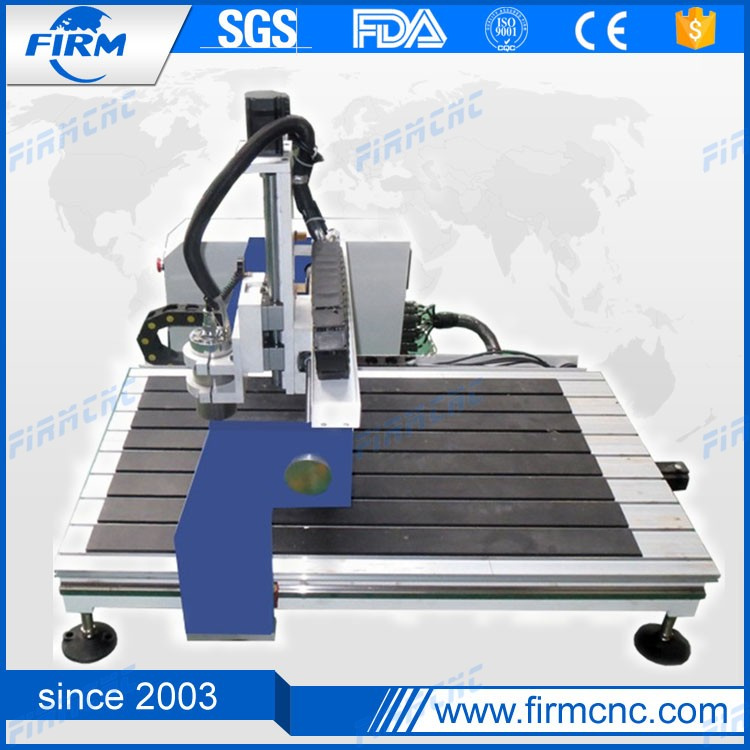

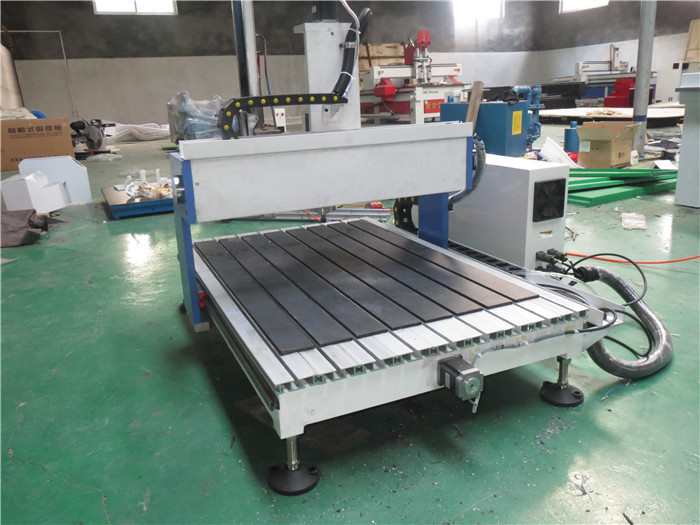

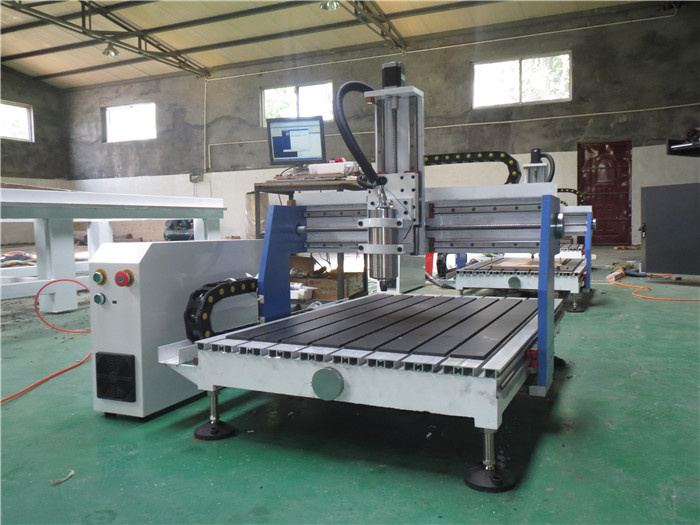

6090 Mini CNC Engraving Machine
Advantages:
1. Free samples(I can help you process samples for free.)
2.Warranty:1 year
3.English software, user manual and operation CD videos.
4.Door-to-door technical service and 24 hours technology online support with Skype,WhatsApp,QQ or by mail and phone.
5.International quality certificate:CE,ISO9001:2008,Electrical components are UL and CE certificated.
6.Every cnc router machine must be tested for 18 hours before delivery , so all of them are absolutelyqualified.
Technical Parameters:
No. | Description | Parameter |
1 | Working Area | 600mmx900mmx150mm |
2 | Dimension(L*W*H) | 1420mm×1120mm×500mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.02/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.02mm |
5 | Table Surface | T-slot table |
6 | Table Size | 800mm×1250mm |
7 | Inverter | Chinese Fuling Inverter/Taiwan Delta Inverter |
8 | Spindle | 1.5KW Chinese Hanqi water colling spindle |
9 | Limit switch | Japan Omron limit switch |
10 | Oil LubricationSystem | Manual |

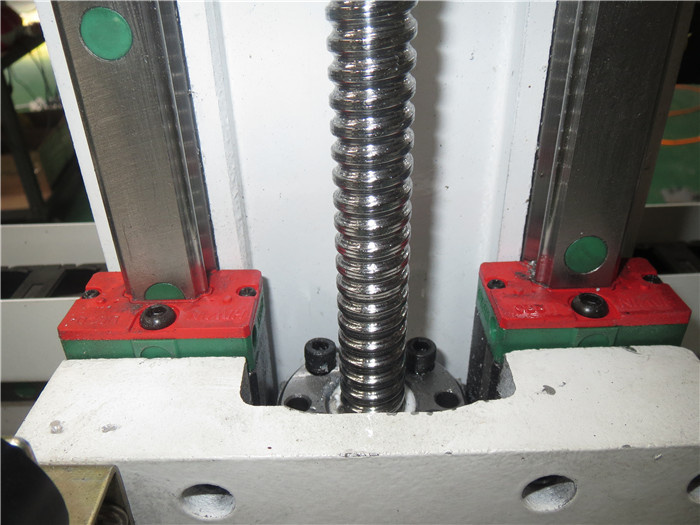

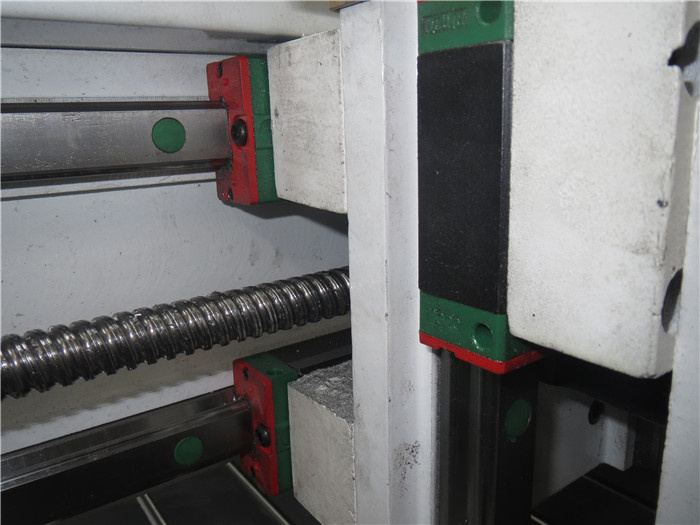

11 | X, Y,Z Transmission | Taiwan Hiwin Square Rail and TBI Ball Screw |
12 | Max. Power Consumption | 5KW |
13 | Max. Rapid Travel Rate | 12000mm/min |
14 | Max. Working Speed | 8000mm/min |
15 | Spindle Power | 1.5KW(optional:2.2KW/3KW) |
16 | Spindle Speed | 0-24000RPM |
17 | Motors | 450A stepper |
18 | Working Voltage | 220V/380V |
19 | Command Language | G Code |
20 | Operating System | DSP System/NC-studio |
21 | Computer Interface | USB |
22 | Collet | ER11/ER16/ER20 |
23 | X,Y Resolution | <0.03mm |
24 | Software Compatibility | Artcam Software/Type3 Software |
25 | Running Environment Temperature | 0 - 45 Centigrade |
26 | Relative Humidity | 30% - 75% |
27 | Packing Size | 1520mmX1220mmX700mm |
28 | N.W. | 80KG |
29 | G.W. | 160KG |
Details:
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Our Company:
Jinan Firm CNC Equipment Co ., Ltd is located in Jinan, Shandong Province,which specializes in manufacturing CNC and laser machines.
Packing & shipment :
Save space as much as possible for container loading.
Our service:
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!
FAQ:
1.How long about the machine's guarantee?
1 year
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
