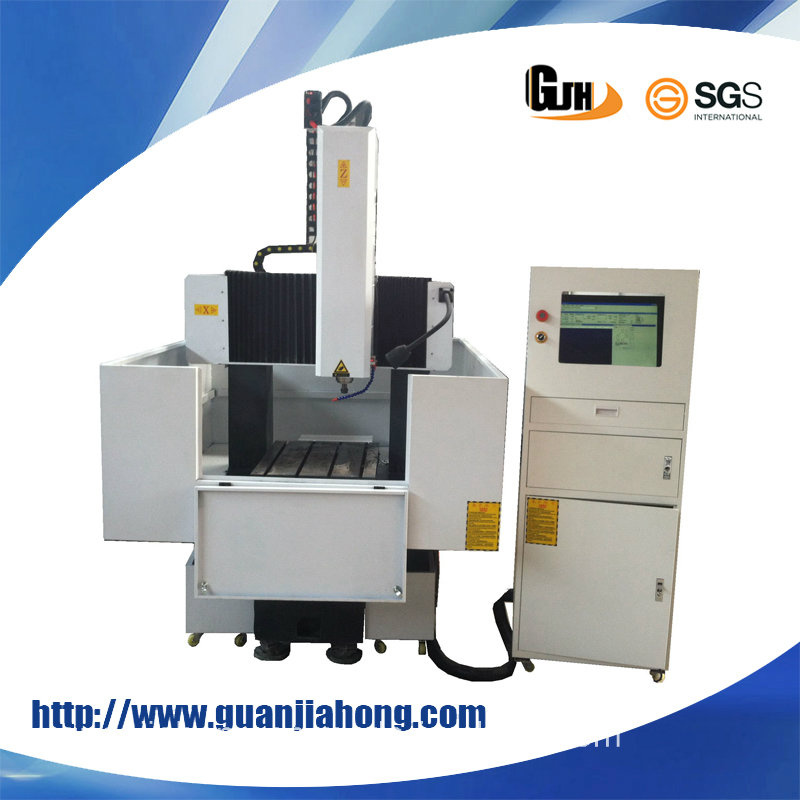

6060 and 4040, Mold CNC Router for Iron, Steel, Aluminum
| Price: |
US $ 6000-15000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
6060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
Nc Studio |
| Guild Rail: |
PMI/Hiwin Square Rail |
| Drive Mode: |
Yasakawa Servo |
| Ball Screw: |
Tbi, Taiwan |
| Feeding Height: |
as Your Requirment |
| Carving Material: |
Iron, Aluminum, Copper |
Product Description
NC studio, YASAKAWA servo, aluminum, copper, iron, metal mold engraving machine cnc router 6060 from professional cnc router machine manufacturer.Feature:1. High working speed: Above 10mm/min;
2. High quality parts: Imported ball screw and liner rail; Advantage servo system and high power variable
frequency spindle motor;
3. Professional design: Easy operation, high speed and big power;
4. Software compatibility: Type3, artcam, castmate, Wentai, JDpaint and ect.
5. Advance performance: Have breakpoint continued carving, restore power, processing time prediction
and real humanized design.

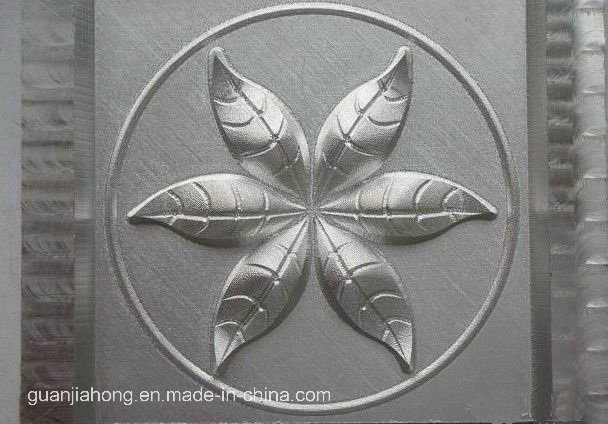

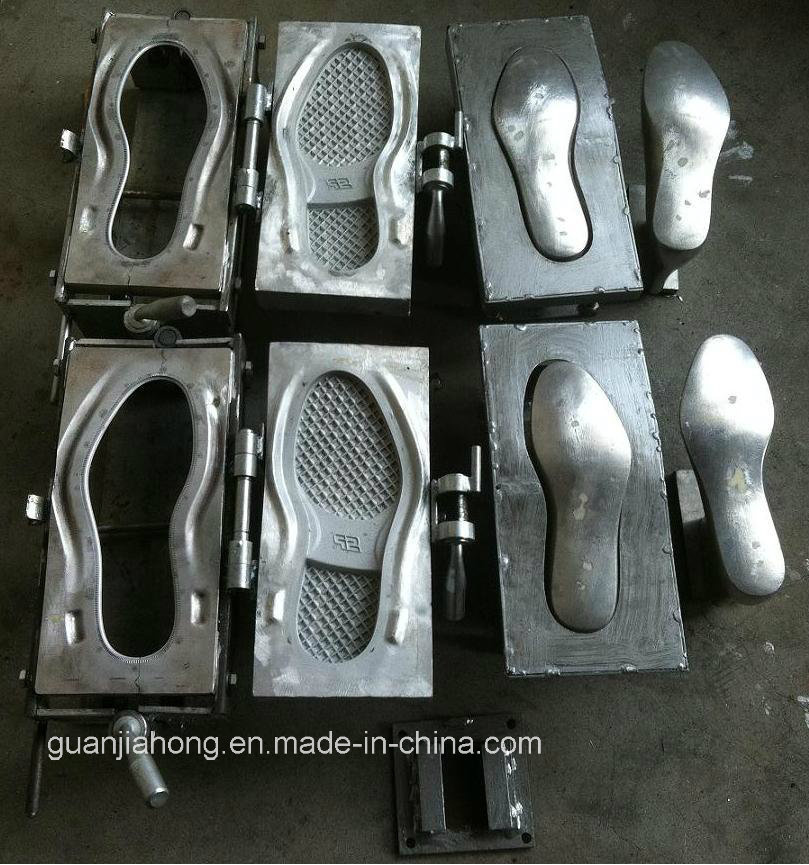

6. Good stability: Whole steel structure for table make it be strength and non-deformation...Applications:Carbon steel, stainless steel, copper, aluminum and other metal materials; Woodness material, aluminous model board, plastic board, PVC, acrylic, double color boards, density board, crystal and etc...

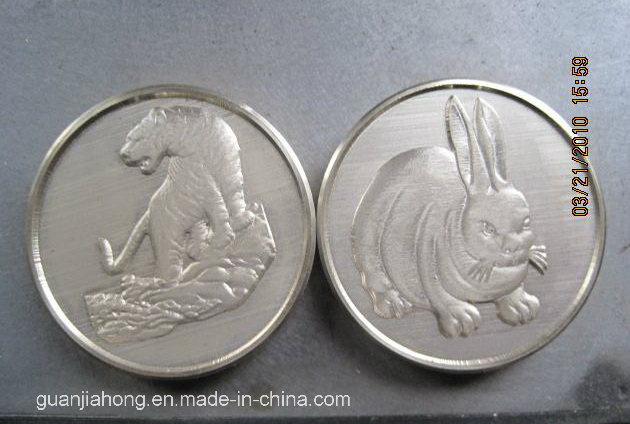

Carving type: Relief, graven images, valuable. Such handiwork, carving, cutting, milling bottom, etc.Technical support:1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. But the buyer
Should pay the fee.After-sale & guarantee service:1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machines is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/ tel and
lifetime technical support
| NO | Performance | Performance | Parameter |
| 1 | Working area | X axis | 600mm |
| | | Y axis | 600mm |
| | | Z axis | 300mm |
| 2 | Table size | | 650mm*650mm |
| 3 | Accuracy | Working accuracy | 0.02mm |
| | | Re-positioning accuracy | 0.02mm |
| 4 | Drive | X axis | Ball screw |
| | | Y axis | Ball screw |
| | | Z axis | Ball screw |
| 5 | Speed | Max travel speed | 8000mm/min |
| | | Max engraving speed | 6000mm/min |
| 6 | Spindle(water-cooling) | Spindle power | 2.2KW |
| | | Spindle speed | 0_24000r/min |
| 7 | Running mode | | servo |
| 8 | Working voltage | | AC220V/50HZ |
| 9 | Command code | | G code |
| 10 | Operating system | | 53CNc studio |
| 11 | Table | | Cast Iron T slot |
| 12 | Guild rail | | Square guild rail |
| 13 | Auto lubrication | | YES |
| 14 | Dustproof | | X Y Z axis |
| 15 | Machine weight | | 1800KGS |
| 16 | Machine size | | 1600*1500*2000mm |
If you have specific requirement for metal mold cnc router ,customization is available.
Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
