600*900mm Mini Wood CNC Engraving Machine
| Price: |
US $ 2200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Specifications
| Prod Model: |
FM6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Xy Working Area: |
600X900mm ( as You Customize) |
| Table Surface: |
T-Slot Table |
| Transmission: |
Hiwin Square Guide Rail, Taiwan Tbi Ball Screw |
| High Precision: |
0.02/300mm |
| Max. Working Speed: |
8000mm/Min |
| Spindle: |
1.5kw Water Colling Spindle |
| Max. Rapid Travel Rate: |
12000mm/Min |
| Table Size: |
800*1250mm |
| Computer Interface: |
USB |
| Control System: |
Nc-Studio/DSP |
Product Description

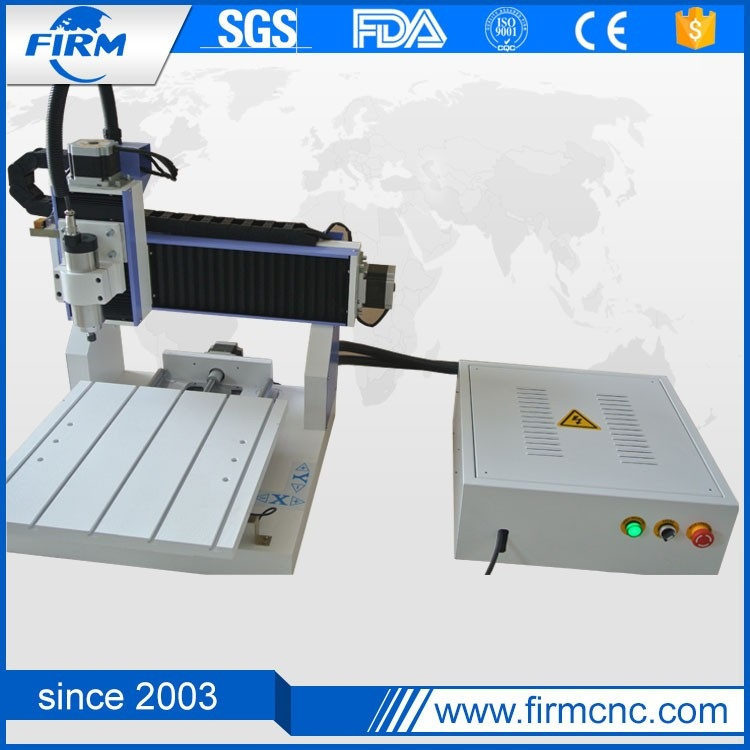

600*900mm Mini Wood CNC Engraving Machine
Advantages:
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.High precision
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Technical Parameters:| No. | Description | Parameter |
| 1 | Working Area | 600mmx900mmx120mm |
| 2 | Dimension(L*W*H) | 1420mm×1120mm×500mm |
| 3 | X,Y,Z Traveling Positioning
Accuracy | ±0.02/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.02mm |
| 5 | Table Surface | T-slot table |
| 6 | Table Size | 800mm×1250mm |
| 7 | Inverter: | Chinese Fuling Inverter/Taiwan Delta Inverter |
| 8 | Spindle | 1.5KW Chinese Hanqi water colling spindle |
| 9 | Limit switch | Japan Omron limit switch |
| 10 | Oil LubricationSystem | Manual |
| 11 | X, Y,Z Transmission | Taiwan Hiwin Square Rail and TBI Ball Screw |
| 12 | Max. Power Consumption | 5KW |
| 13 | Max. Rapid Travel Rate | 12000mm/min |
| 14 | Max. Working Speed | 8000mm/min |
| 15 | Spindle Power | 1.5KW(optional:2.2KW/3KW) |
| 16 | Spindle Speed | 0-24000RPM |
| 17 | Motors | 450A stepper |
| 18 | Working Voltage | 220V/380V |
| 19 | Command Language | G Code |
| 20 | Operating System | DSP System/NC-studio/Mach3 |
| 21 | Computer Interface | USB |
| 22 | Collet | ER16/ER20/ER25 |
| 23 | X,Y Resolution | <0.03mm |
| 24 | Software Compatibility | Artcam Software/Type3 Software |
| 25 | Running Environment
Temperature | 0 - 45 Centigrade |
| 26 | Relative Humidity | 30% - 75% |
| 27 | Packing Size | 1520mmX1220mmX700mm |
| 28 | N.W. | 80KG |
| 29 | G.W. | 160KG |

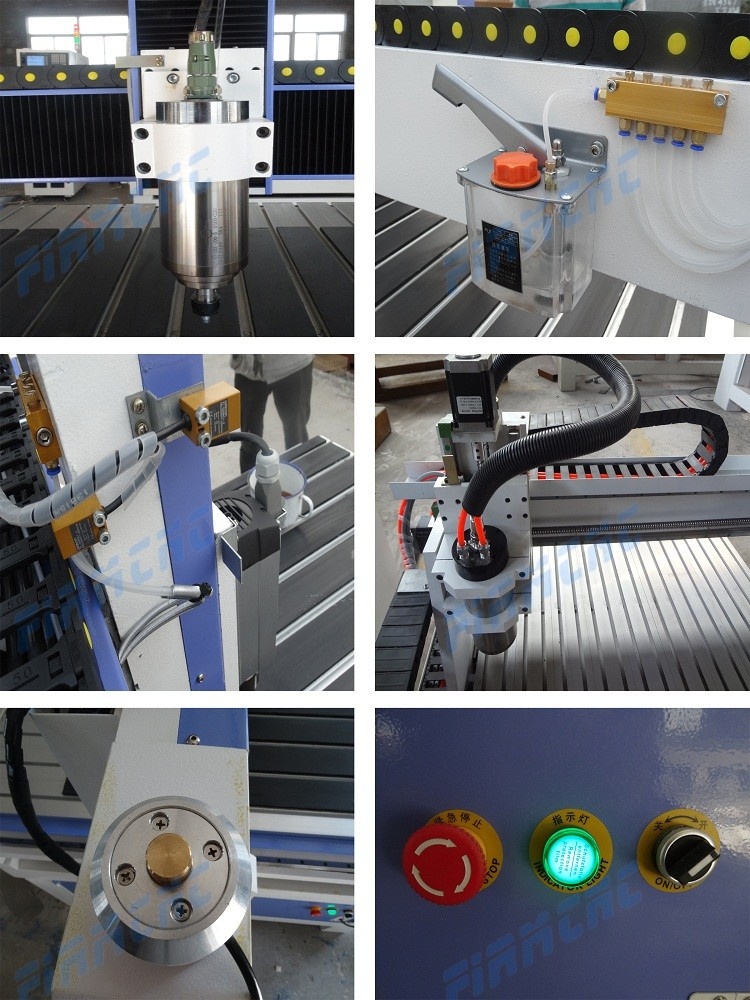

Details:

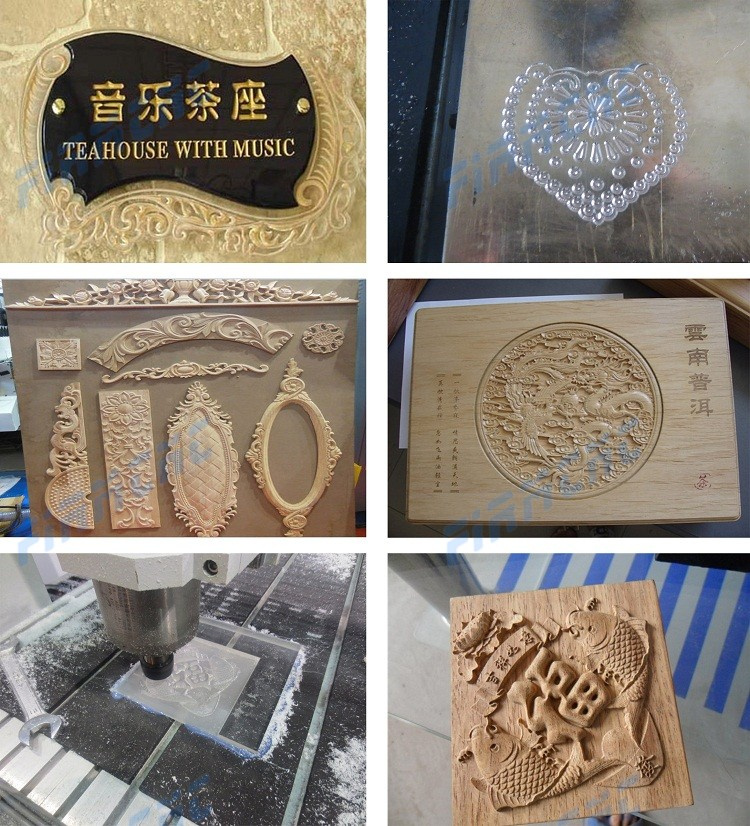

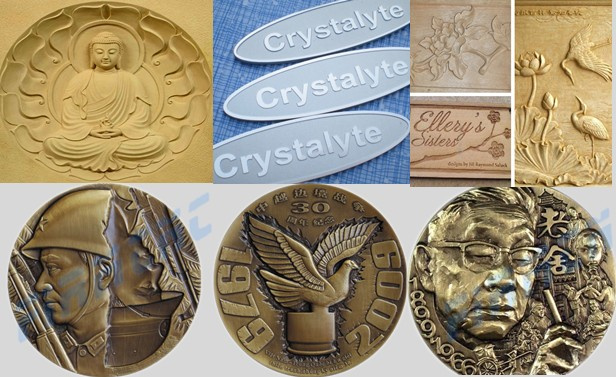

Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.

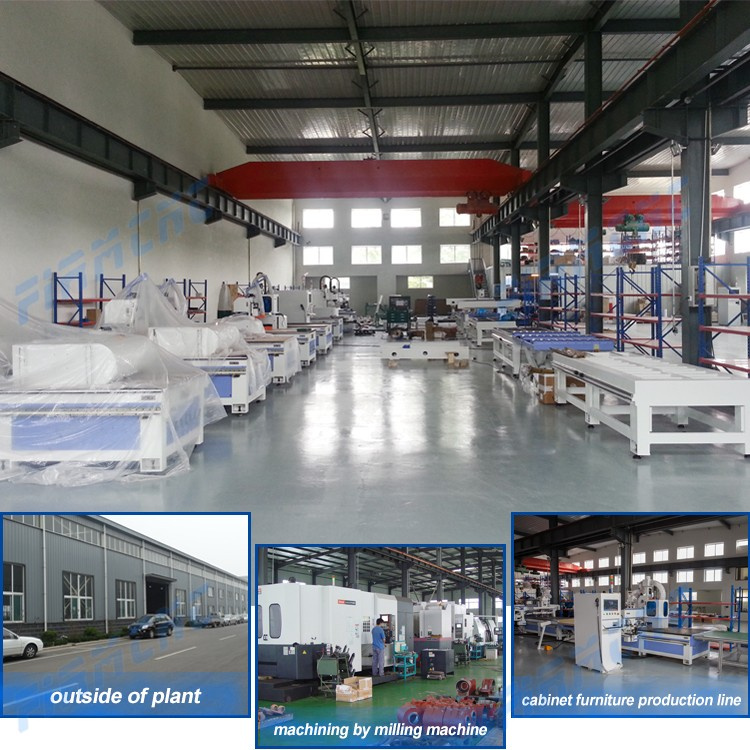

Our Company:
Jinan Firm CNC Equipment Co ., Ltd is located in Jinan, Shandong Province ,which specializes in manufacturing CNC and laser machines.
Our main products are CNC Router and Laser Machine. 5-Axis Machine Center, 4-Axis
Machining Center, 3-Axis ATC CNC Router , General 3-Axis CNC Router, CNC Plasma
Cutting Machine. We have two factories for product. The application covers Woodworking, Advertising , Marble, Metal, Nonmetal, MDF, Plastic, etc. Our products are widely sold in many European, American countries, Africa, Asia, ect.
We are still trying our best to product innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please do
not hesitates to contact us for future cooperation. We hope to get mutual benefits with you in the near future.
Packing & shipment :
Save space as much as possible for container loading.
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube
Our service:
1. Free samples(I can help you process samples for free.)
2.Warranty:1 year
3.English software, user manual and operation CD videos.
4.Door-to-door technical service and 24 hours technology online support with Skype,WhatsApp,QQ or by mail and phone.
5.International quality certificate:CE,ISO9001:2008,Electrical components are UL and CE certificated.
6.Every cnc router machine must be tested for 18 hours before delivery , so all of them are absolutelyqualified.
FAQ:
1.How long about the machine's guarantee?
1 year
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
