| Price: | US $ 3800-19999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | ELE-1325 |
|---|---|
| Product Name: | 4X8 FT CNC Router Machine |
| Spindle Power: | 3kw Hsd Air Cooling |
| Driving System: | Stepper Motor and Drivers |
| Controller: | DSP A11 Controller |
| Software: | Type3 Software, (Option: Artcam Software) |
| Working Voltage: | AC 380V/3phase/50Hz |
| Z Axis Transmission: | Taiwan Tbi Ball Screw |
| X Y Transmission: | Helical Rack Transmission |
| Working Table: | Vacuum and T-Slot |
| Frame: | Welded Structure |
4x8 ft wood working cnc router machine

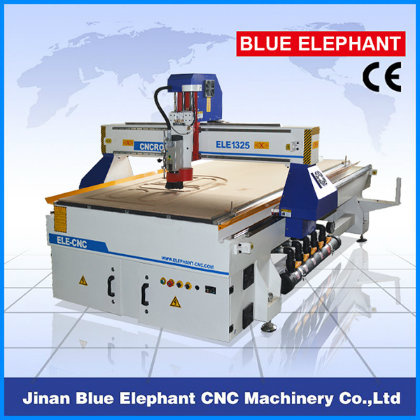

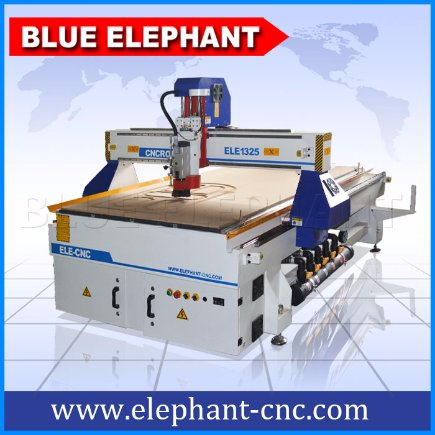

Main Picture:
Features of wood cnc router:
1. ELE-1325 is an economic processing center, with a row of knife. It is equipped with leading
international components.
2. The work table is international leading vacuum adsorption. It is made from bakelite with
high-strength, vacuum adsorption. It can adsorb different size materials.
3. Optional wheels help move the machine,more convenient. Optional air gun help clean the
worktable.
4. With DSP control system, It can support offline operation.
5. HIWIN/PMI linear rail from Taiwan for 3 axes, more stable and precise,low noise,and its lifetime
is 10 times longer than common rail way.
6.Standard configured with Italy HSD air cooling spindle, high power and efficient. Very famous brand,has after-sale service all over the world. Matched with Taiwan DELTA inverter.
7.Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger power,longer lifetime,and it makes the machine more stable.
8.Standard configured with stepper motor FL118 and YAKO 2811 big driver,very powerful. For option,we can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.
The applications of wood cnc router:
1). WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2).Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding, and other advertising materials derivatives making.
3). Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4). Relief Sculpture and 3D Engraving
5).Cylindrical object
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum&T-slot Table |
6 | Frame | Welded Structure,heavy duty T-structure |
7 | X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
8 | Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
9 | Max. Power Consumption | 2.0KW |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 3KW HSD air cooling spindle(water cooling spindle for optional) |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Delta servo motor (optional) |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
16 | Command Language | G Code |
17 | Operating System | DSP (Options: Ncstudio /Mach3 Software) |
18 | Computer Interface | USB |
19 | Flash Memory | 128M(U Disk) |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |

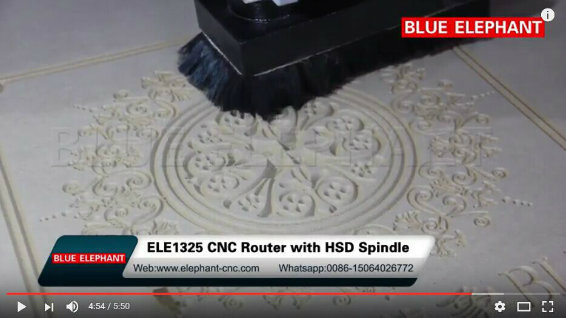

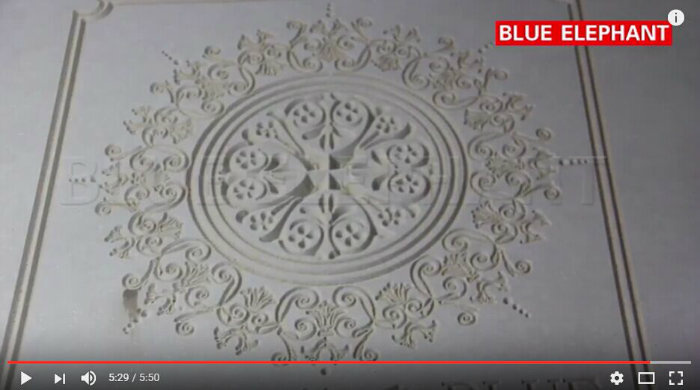

The samples of wood cnc router:
1,before-sale,we will try to know your requirement about our cnc router specification
and what kind of work you will do .then we will offer our best solution for your requirement.
then it can confirm each customer can get their real needed machine.
2.during production: we will send photos of machines during making. so customers can know more
details about the procession of making their machines. and give them suggestions.
3.before shipping, take delivery photo , Machine will be adjusted before it is delivered.
4.after shipping: we will check when the machine arrive your sea port and approximate date of
arrival. so customers can know when it will arrive and make enough preparation.
5.after arrival: we will confirm with customers if machine is in good condition. and see if any spare
parts missing .
6.about teaching: there are some manual and video about how to use machine , if you have question about it. we will have professional technicist to help you install and teach how to use through
skype ,calling, video or mail.
7. about warranty: we offer 1 year warranty for whole machine and half year warranty for spindle.
if any parts of our machine is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easily and have a fun of it.
if you have any problems of machine in 2 or 3 , 5 years , you can contact us . we will always here
waiting for you.
1. how should i pay for my order ? what is the procession of this purchase ?
we accept TT by bank. you can do 30% prepayment at first, then we will start to make production. when the machine is ready, we will take pictures to you, and then you can do the ballance.
after we got your payment. i will send the machine to you.
2. how about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine, including how to install the machine, how to use
machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype . our engineer has many years of experience for cnc machine service. he can speak very good english , so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better serivce after sales. we know how to fix the problem in each
parts easliy. so welcome to visit to our factory
4. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
5. How about the documents after shipment?
Aftershipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
