| Price: | US $ 6999-19999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1325 |
|---|---|
| Voltage: | AC380V/50/60Hz, 3pH (Option: 220V) |
| Weight: | 1400kg |
| Power(W): | 3kw |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |

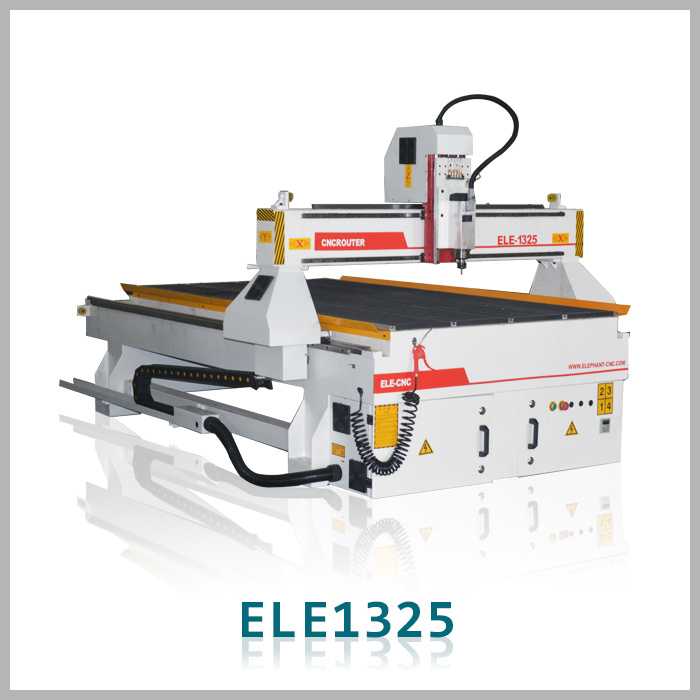

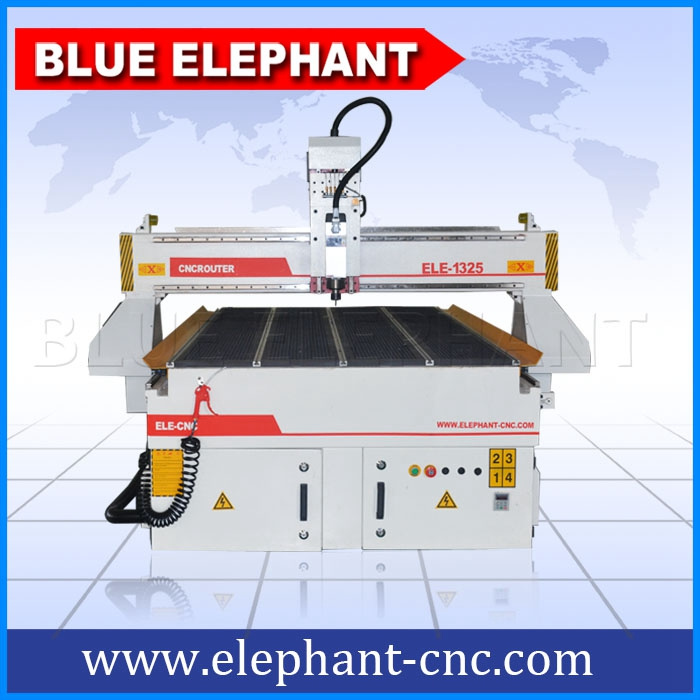

4X8 FT Automatic 3D Wood Carving Machine 1325 Wood Working CNC Router for Sale
Features:
ELE-1325 is an economic processing center, with a row of knife.The work table is international leading vacuum adsorption.It can adsorb different size materials.
Optional wheels help move the machine,more convenient. Optional air gun help clean the worktable.
With DSP control system, It can support offline operation.
HIWIN/PMI linear rail from Taiwan for 3 axes, more stable and precise,low noise,and its lifetime is 10 times longer than common rail way.
Standard configured with Italy HSD air cooling spindle, high power and efficient. Very famous brand,has after-sale service all over the world. Matched with Taiwan DELTA inverter.
Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger power,longer lifetime,and it makes the machine more stable.
Standard configured with stepper motor FL118 and YAKO 2811 big driver,very powerful. For option,we can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.
Parameters :
Description | Parameter |
X,Y,Z Working Area | 1300X2500X200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
Table Surface | Vacuum&T-slot Table |
Frame | Welded Structure,heavy duty T-structure |
X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
Max. Power Consumption | 2.0KW |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | 3KW HSD air cooling spindle(optional) |
Spindle Speed | 0-24000RPM |
Drive Motors | Delta servo motor (optional) |
Working Voltage | AC380V/50/60Hz,3pH (Option: 220V) |
Operating System | DSP (Options: Ncstudio /Mach3 Software) |
Applications:
·WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
·Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
·Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
·Relief Sculpture and 3D Engraving & Cylindrical object
Samples:
Shipping& Package
Outside package: Standard marine export plywood cases
Inner package: Stretch film and plastic film for humidity
Shipping: I suggest you choose sea shipping, can save shipping cost
Our Service:
1, Within 7 days since your local customs clearance: if the CNC router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the CNC router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the CNC router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

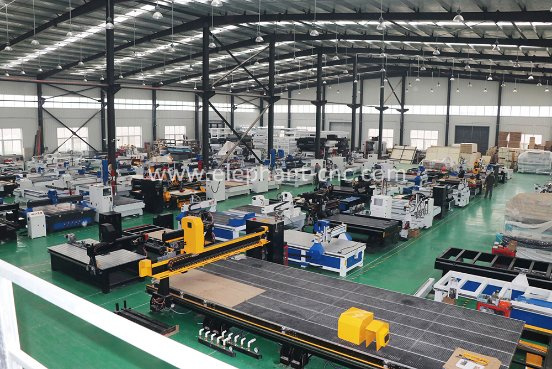

Welcome to our factory!
