| Price: | US $ 3800-8700set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 2030 |
|---|---|
| Voltage: | AC 220V/1pH/50Hz(380V/3pH Optional) |
| Dimension(L*W*H): | 3700*2140*1850mm |
| Power(W): | 7kw |
| Spindle Power: | 6kw Changsheng Water Cooling Spindle |
| Table Surface: | Vacuum&T-Slot Working Table |
| Driver Mortors: | Stepper System |
| Operating System: | DSP A18 for 4 Axis |
| Spindle Speed: | 0-24000rpm |
| Inverter: | 7.5kw Fuling Inverter |
| Working Area: | 2000*3000mm |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |

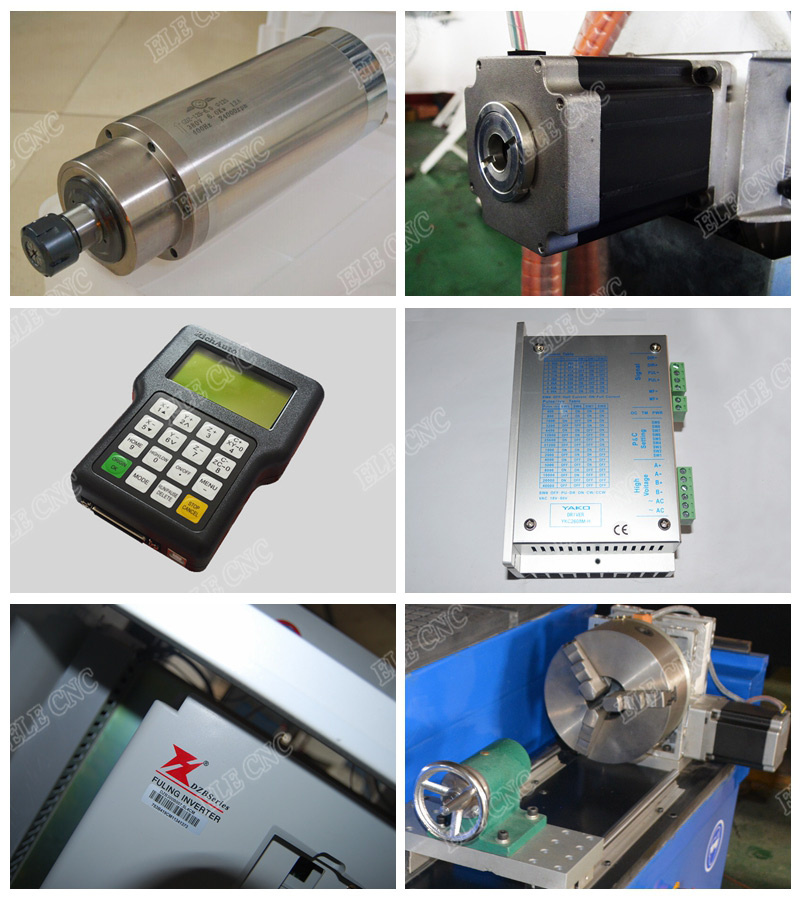

Features of 4 axis cnc router engraver machine:
Parameters of 4 axis cnc router engraver machine:
Description | Parameter |
X,Y,Z Working Area | 2000x3000x200mm |
Table Surface | Vacuum and T-slot Table |
Frame | Welded Structure |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and TBI Ball Screw |
Spindle Power | 6KW Changsheng water cooling spindle |
Spindle Speed | 0-24000RPM |
Motors | FL118 stepper motor |
Driver | YAKO 2608 |
Inverter | 7.5kw Fuling inverter |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | DSP A18 |
Computer Interface | USB |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
PS:All the working area and specifications can be customized according to your requests.
Applications:
Samples:
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

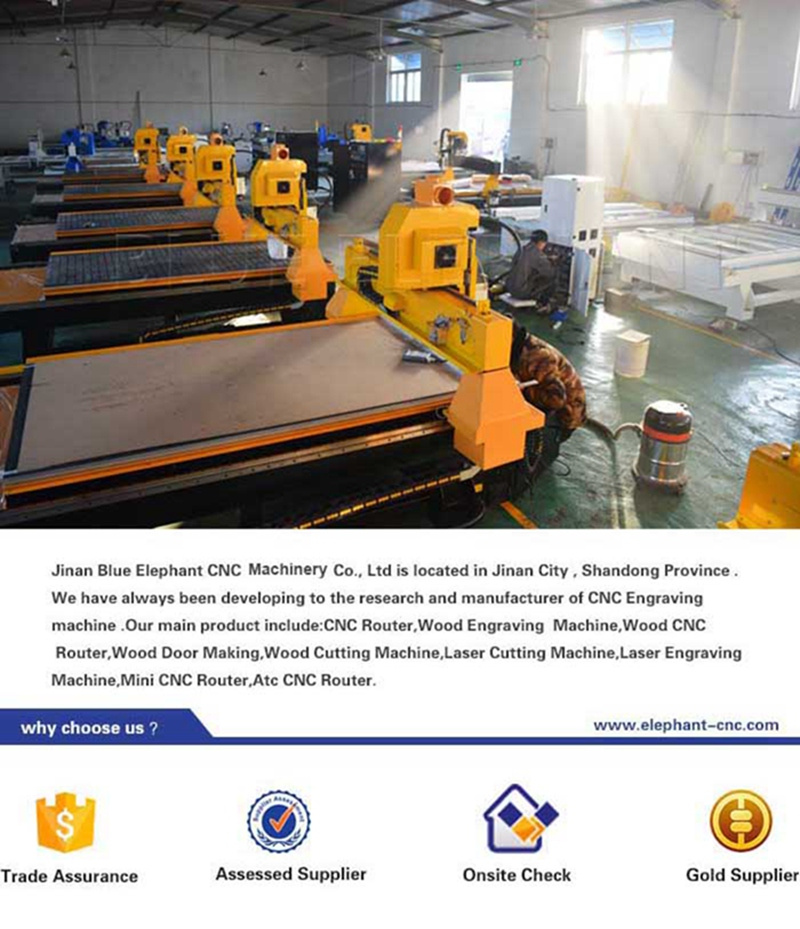

Welcome to our factory:
Just looking forward to service every customer, like you.
