| Price: | US $ 3598-8920/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |

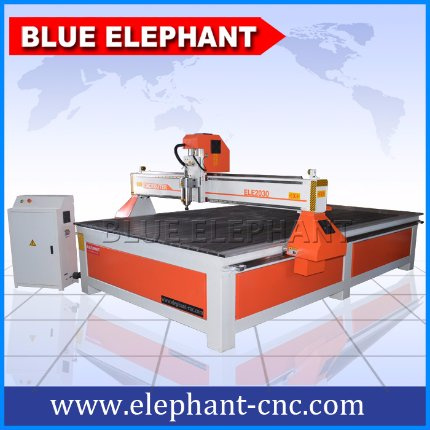

| Prod Model: | ELE2030 |
|---|---|
| Power(W): | 5kw |
| Working Area: | 2000*3000*200mm |
| Control System: | Ncstudio Control System |
| Spindle: | Water Cooling Spindle |
| Spindle Power: | 3kw |
| Spindle Speed: | 0-24000rpm |
| Motor: | FL118 Stepper Motor |
| Driver: | Yako 2608 Driver |
| Inverter: | 3.7kw Fuling Inverter |
| Table Surface: | T-Slot & PVC Working Table |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | ISO |

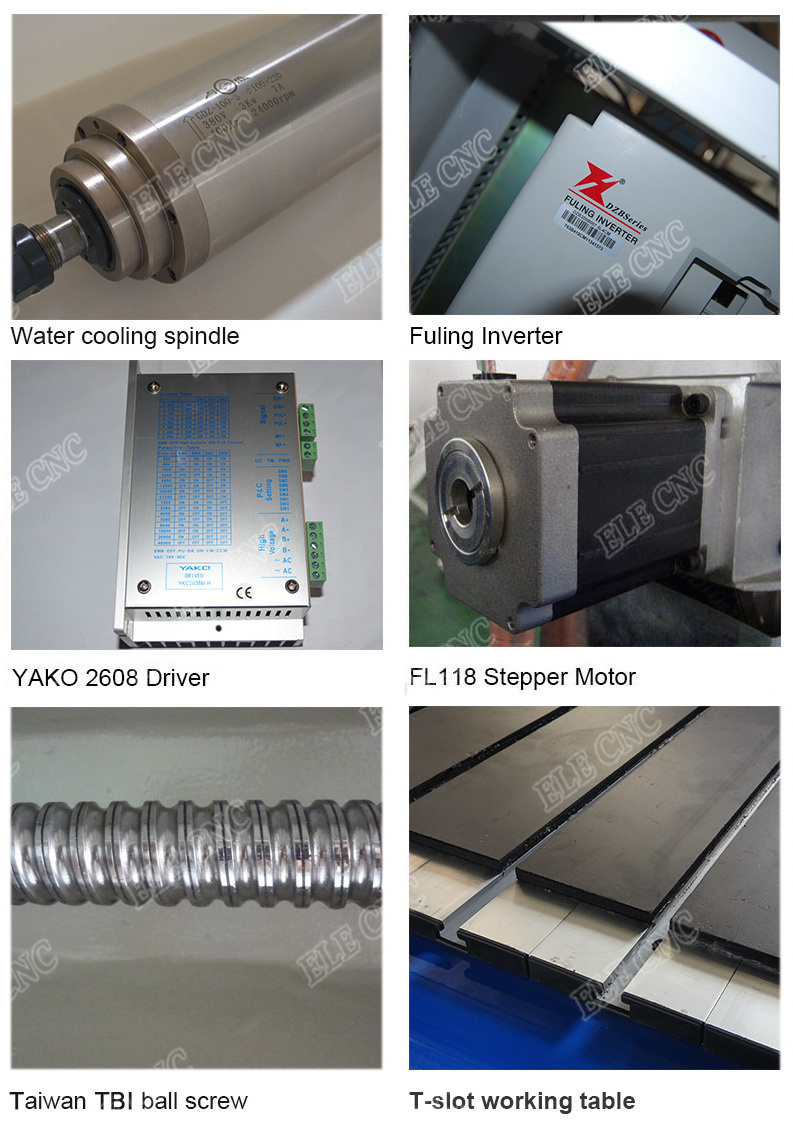

Features of 3d wood cutting cnc machine:
Technical Parameters of 3d wood cutting cnc machine:
Description | Parameter |
X,Y,Z Working Area | 2000*3000*200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | T-slot & PVC Table |
Spindle | 3kw Changsheng water cooling spindle |
X, Y Structure | #20Taiwan HIWIN Linear guide and helical rack |
Z Structure | Ball screw and #20 Taiwan HIWIN Linear guide |
Driver and Motor | Stepper |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
Software | Artcam /Type 3 software |
Spindle Speed | 0-24000RPM |
Lubrication system | Manual |
Inverter | 3.7kw Fuling Inverter |
Command Language | G Code |
Control System | NCstudio |
Computer Interface | USB |
Flash Memory | 512M(U Disk) |
Collet | ER20 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
PS:All the working area and specifications can be customized according to your requests.
Application:
Samples:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 10 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
