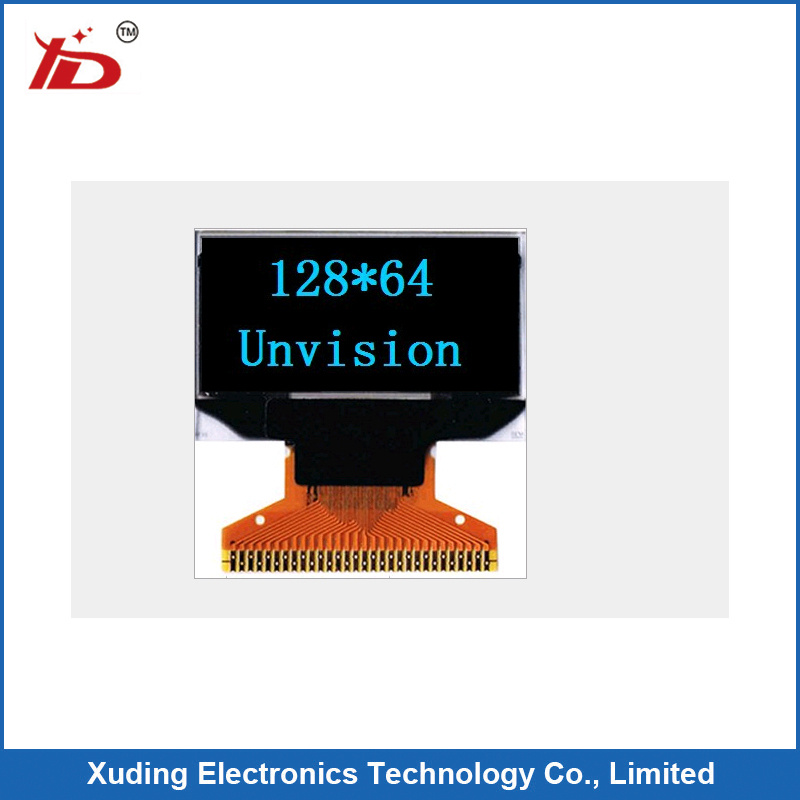

2.42 Inch OLED Display, 128*64 Pixels with Blue/White/Green/Yellow Display Color

Product Specifications

Prod Model:	XOLED1286410
Drive Method:	1/4duty,1/3bias
Polarizer Type:	Transmissive / Negative /Glare
Operating Temp:	-20--70
Storage Temp:	-30--80
Voltage:	Vdd:3.3V Vlcd:4.5V
Application:	Mobile Phone
Aspect Ratio:	4:3
Feature:	3D Display
Response Time:	16ms
3D:	3D
Interface Type:	VGA
Screen Size:	2.42``
Optimum Resolution:	128*64
Type:	OLED

Product Description

Features

Product Description No.   Item   Specification   1 Display type PM OLED 2 Display size   2.42 inch(Diagonal)  2 Display mode   Passive Matrix 3 Display color Monochrome (White/Yellow/Blue/Green) 4 Number of Pixels 128x64 5 Active area   55.01(W) × 27.49(H) mm  6 Panel size   60.50(W) × 37.00(H) × 2.00(D) mm  7 Pixel pitch 0.43(H) x 0.43(V) mm 8 Pixel Size 0.40(H)x 0.40(V) mm 9 Viewing angle All 10 Brightness 120 cd/m2 11 Interface   8-bit 68XX/80XX Parallel, 4-wire SPI, I2C 12 Controller IC  SSD1305 13 Contrast Ratio >2,000 14 Operating temperature   -40ºC~+70ºC 15 Storage temperature -40ºC~+85ºC

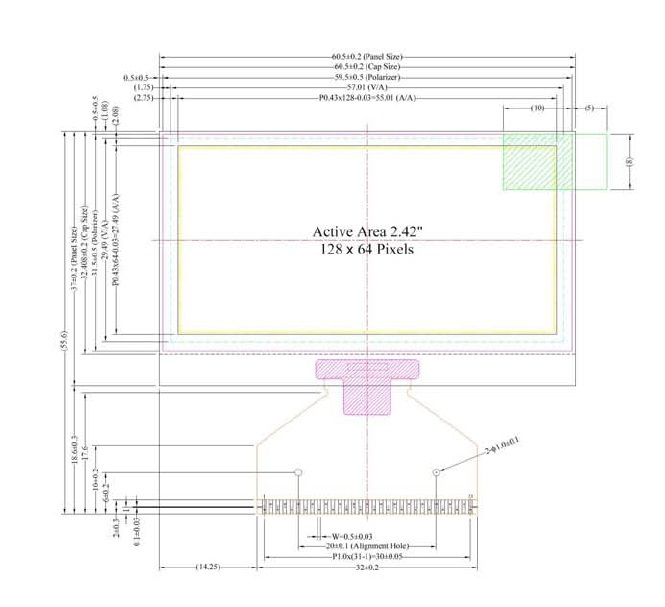

Outline Drawing

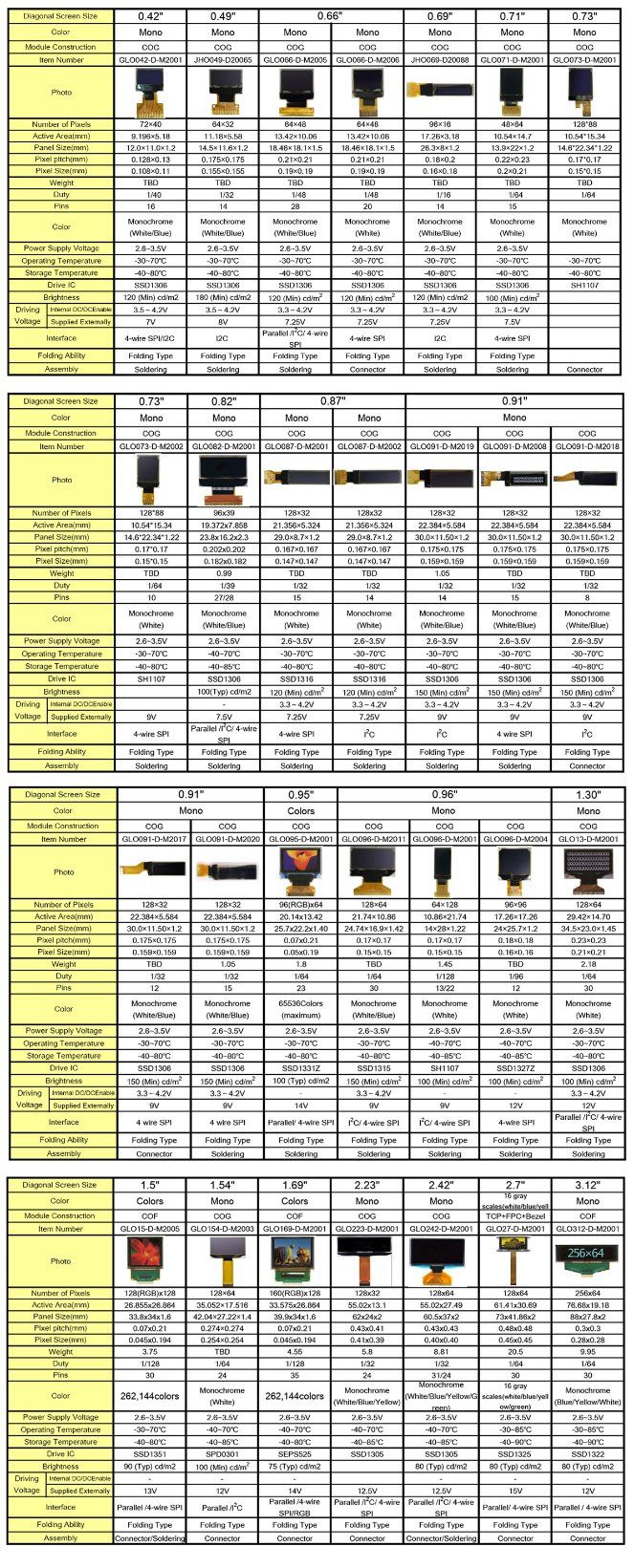

More products

Trade Information for the 1.3inch OLED Display




Company Profile:
Applied: Household appliances, machine
Product name: LCD polarizer Graphic LCD module
Brand Name: XUDING
Cerificate: Rohs
Manufacturing Experience: 10 year
Place of Origin: Guangdong China
Model size ( Versatility ): Length *width * Highth:
Pitch: 2.45mm
Viewing sirection: Length *width
Viewing direction: 3H / 6H / 9H / 12H / Full viewing angle
Display type: Mono segent LCD display / Dot matrix display mode
VA TN HTN STN FSTN
Positive Negative
Different polarizer options
Polarizer type: Reflective / Transmissive / Transflective
Wide temperature range
Operating temperature: (-20 TO -70)
Storage temperature: (-40 TO -80)
Connector: PIN Zebra FPC
Cob Cog
Low power consumption
Operating voltage: 2.8V to 5.0V
Drive mode: 1/3BIAS 1/4DUTY
Backlight (Custmer Design ): Yellow Green Blue Amble
Controller: SPLC780/KS0066U or eqv.


***In compliance with ISO9001: 2008 Quality Management
***One year's guarantee for unartificial damage

Dongguan xu ding electronics technology Co., Ltd. (XUDING) professional sales LCD/LCM/TFT LCD display. Its products are widely used in electric power terminal, digital control, instrumentation, medical equipment, security, tax control equipment, industrial automation and other fields.

XUDING with independent research and development capabilities, and more than 5 years experience of quality personnel complete facilities, reasonable workshop layout, advanced equipment, professional technical support, and for the supplier to our company in the LCD panel industry customers long-term support and trust

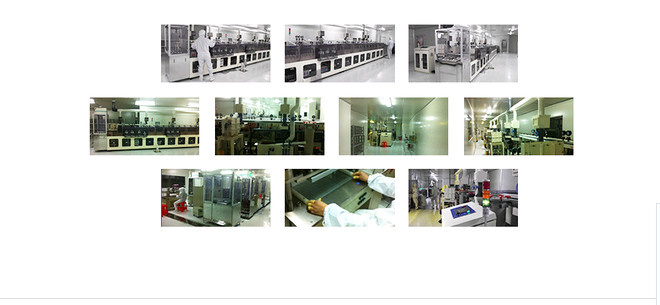

Our production plant has stringent quality control to guarantee Absolute product quality. Our production equipment are state-of-the-art Japanese technology Including COB, TAB, COG, etc.

Thank you for choosing Xu Ding electronic science and technology, long-term cooperation and common development, we will serve you wholeheartedly!
