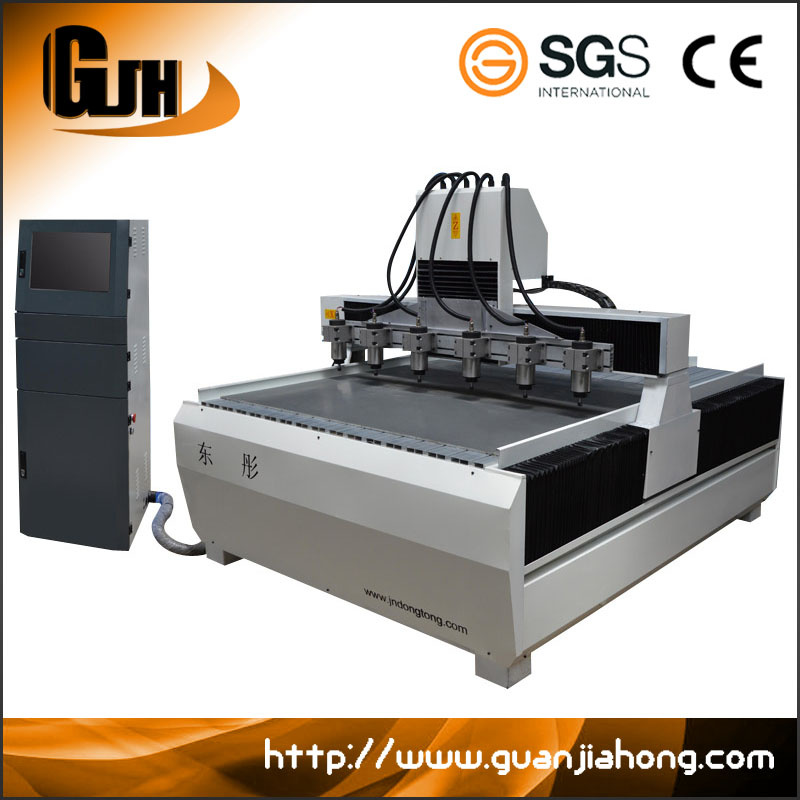

1615-6 Multi-Spindle Wood CNC Router Machine
| Price: |
US $ 6000-8000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Specifications
| Prod Model: |
DT1615-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Engraving Router |
| Spindle Layout: |
Spindle Over |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Customized: |
Customized |
| Condition: |
New |
| Color: |
Customized |
| Spindle Number: |
6 |
Product Description
Multi spindle CNC wood/stone/marble carving machine from professional cnc router manufacturer.Feature:1. Specially developed and designed for small workpiece but mass production, high precision, high
speed and high cost performance.
2. The lathe bed is welded by steel structure seamlessly, has good stiffness and non-deformation.
3. Using computer cabinet, the original Weihong control system has stable performance and high
reliability .
4. Automatic oil lubrication system, it is more convenient for maintenance.
5. With function about continued carving when it has breakpoint, power recovery and processing time
prediction
6. Imported ball screw rod and round rail, original screw nut,imported linear and square rail Application industry:1. Stone industry: Natural marble, granite, artificial stone, tombstone, milestone,ceramic tile, glass and
other materials of 3D relief and line carving, cutting, edge,drilling and 2D carving.
2. Woodworking industry: The furniture of door, window, cabinet, craft wood door, paint free door,
folding screen, process window, wave board processing, including the processing for wood art.
3. Advertising industry: Suitable for processing various design and colorful mould, just like: Signs,
architectural models, badges, badge, name plate, exhibition board, indicator, craft decoration,
furniture decoration, etc.
4. Handcraft industry: Can engrave in wood, bamboo, artificial marble, organic board,double color
boards, crystal and other material.
5. Also can carve and achieve all kind of effects for reliefs, movie, hollow and plate engraving, cutting
and valuable. such handiwork, graphic engraving,cutting, the bottom of milling,etc.
Technical support:1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.After-sale & guarantee service:1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/
tel and lifetime technical support
NO | Performance index | Performance index | Parameter | Optional |
| 1 | Working area | X | 1000mm | |
| | | Y | 1500mm | |
| | | Z | 150mm | |
| 2 | Table size | | 1600mm*1500mm | |
| 3 | Precision | Working precision | 0.02mm | |
| | | Repositioning precision | 0.02mm | |
| 4 | Drive mode | X axis | Ball screw | |
| | | Y axis | Ball screw | |
| | | Z axis | Ball screw | |
| 5 | Speed | Max motion speed | 10000mm/min | |
| | | Max engraving speed | 8000mm/min | |
| 6 | Spindle | Spindle power | 1.5KW | 0.8KW_3KW |
| | | Spindle speed | 0_24000r/min | |
| 7 | Drive mode | | Servo | Servo |
| 8 | Operating voltage | | AC220V/50HZ | |
| 9 | Operating system | | NC studio | |
| 10 | New weight | | 1500KG | |
If you have specifc requirement for multi-spindle cnc router, customization is available.
Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
