Product Specifications
| Prod Model: |
DT1615-1-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
1600*1500 |
| Control System: |
Nc Studio |
| Guild Rail: |
PMI /Hiwin Square Rail |
| Ball Screw: |
PMI, Taiwan |
| Spindle Layout: |
Spindle Over |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
| Spindle Number: |
6 |
Product Description

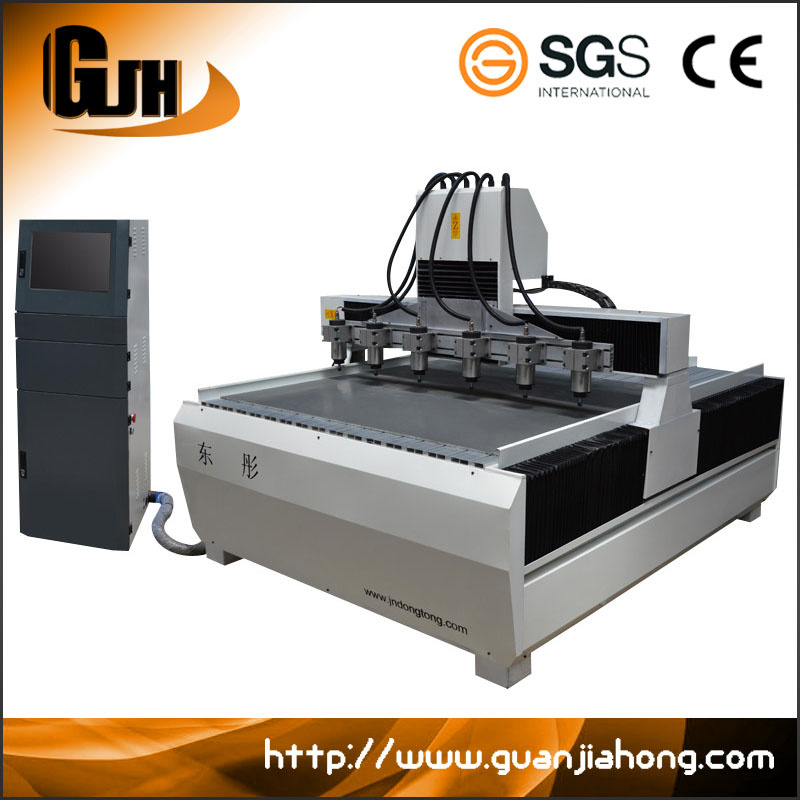

CNC router engraving machine from professional cnc router manufacturer.Feature:1. DT1615-6 engraving machine is our company specially developed and designed for
small workpiece but mass production, high precision, high speed and high cost performance.
2. The lathe bed is welded by steel structure seamlessly, has good stiffness and non-deformation.
3. Gunuine NC studio control system has stable performance and high reliability .
4. Automatic oil lubrication system, it is more convenient for maintenance.
5. Continued carving when it has breakpoint, power recovery and processing time prediction
6. Imported ball screw rod and round rail, original screw nut, Imported linear and square rail
Application industry:1. Stone industry: Natural marble, granite, artificial stone, tombstone, milestone,
ceramic tile, glass and other materials of 3D relief and line carving, cutting, edge,
drilling and 2D carving.

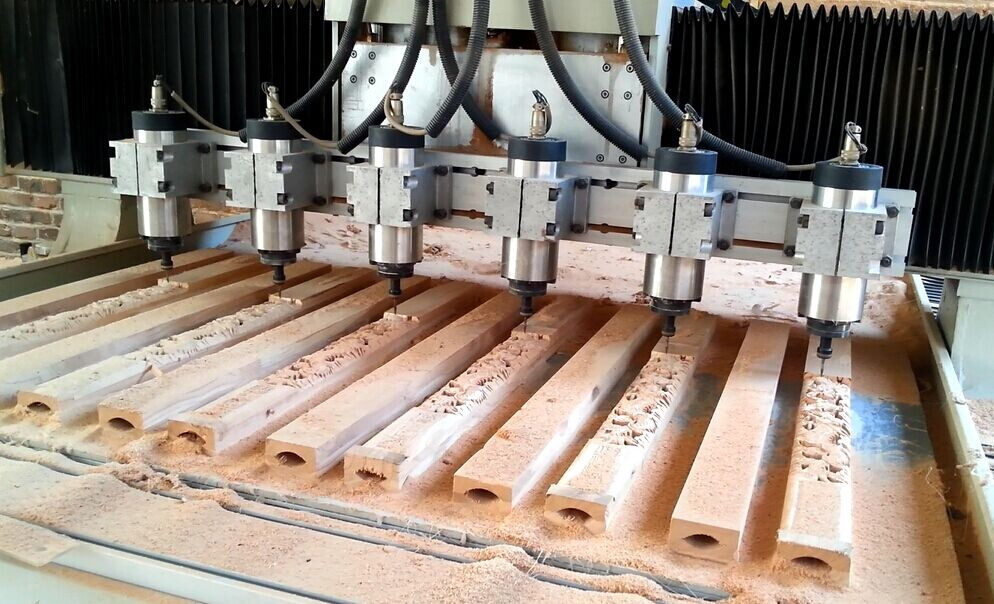

2. Woodworking industry: The furniture of door, window, cabinet, craft wood door,
paint free door, folding screen, process window, wave board processing, including
the processing for wood art.
3. Advertising industry: Suitable for processing various design and colorful mould, just
like: Signs, architectural models, badges, badge, name plate, exhibition board,
indicator, craft decoration, furniture decoration, etc.
4. Handcraft industry: Can engrave in wood, bamboo, artificial marble, organic board,
double color boards, crystal and other material.5. Also can carve and achieve all kind of effects for reliefs, movie, hollow and plate
engraving, cutting and valuable. such handiwork, graphic engraving, cutting, the
bottom of milling,etc.
Technical support:1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.After-sale & guarantee service:1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by
email/fax/ tel and lifetime technical support
NO | Performance index | Performance index | Parameter | Optional |
| 1 | Working area | X | 1000mm | |
| | | Y | 1500mm | |
| | | Z | 150mm | |
| 2 | Table size | | 1600mm*1500mm | |
| 3 | Precision | Working precision | 0.02mm | |
| | | Repositioning precision | 0.02mm | |
| 4 | Drive mode | X axis | Screw | |
| | | Y axis | Screw | |
| | | Z axis | Screw | |
| 5 | Speed | Max motion speed | 10000mm/min | |
| | | Max engraving speed | 8000mm/min | |
| 6 | Spindle | Spindle power | 1.5KW | 0.8KW_3KW |
| | | Spindle speed | 0_24000r/min | |
| 7 | Drive mode | | | Servo |
| 8 | Operating voltage | | AC220V/50HZ | |
| 10 | Operating system | | 53C | |
| 11 | New weight | | 1500KG | |
If you have specific requirement for CNC router engraving machine, customization is available.
