Product Specifications
| Prod Model: |
DT1615-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
1600*1500 |
| Movement: |
Gantry |
| Structure: |
Whole Welding Process |
| Running Mode: |
Stepper |
| Optional: |
Yaskawa Servo |
| Control System: |
Nc Studio (Genuine) |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Layout: |
Spindle Over |
| Certification: |
SGS |
| Spindle Number: |
6 |
Product Description

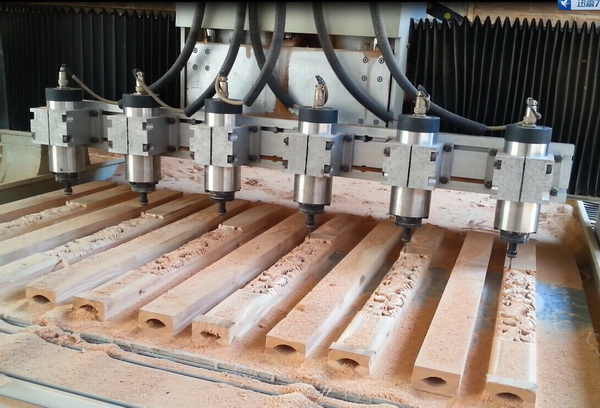

1600x1500mm, Muti-Spindle, Stepper/ Servo, PMI Screw, Woodworking Carving Machine CNC Router --- from professional carving machine CNC router machine maufacturer.Feature: 1. DT1615-6 engraving machine is our company specially developed and designed for small workpiece but mass production, high precision, high speed and high cost performance.
2. The lathe bed is welded by steel structure seamlessly, has good stiffness and non-deformation.
3. Using computer cabinet, the original Weihong control system has Stable performance and high reliability
.4. Automatic oil lubrication system, it is more convenient for maintenance.
5. With function about continued carving when it has breakpoint, power recovery and processing time prediction
6. Imported ball screw rod and round rail, original screw nut, Imported linear and square rail
Application industry:1. Stone industry: Natural marble, granite, artificial stone, tombstone, milestone, ceramic tile, glass and other materials of 3D relief and line carving, c
utting, edge, drilling and 2D carving.2. Woodworking industry: The furniture of door, window, cabinet, craft wood door, paint free door, folding screen, process window, wave board processing, including the processing for wood art.
3. Advertising industry: Suitable for processing various design and colorful mould, just like: Signs, architectural models, badges, badge, name plate, exhibition board, indicator, craft decoration, furniture decoration, etc.
4. Handcraft industry: Can engrave in wood, bamboo, artificial marble, organic board, double color boards, crystal and other material.
5. Also can carve and achieve all kind of effects for reliefs, movie, hollow and plate engraving, cutting and valuable. such handiwork, graphic engraving, cutting, the bottom of milling,etc.

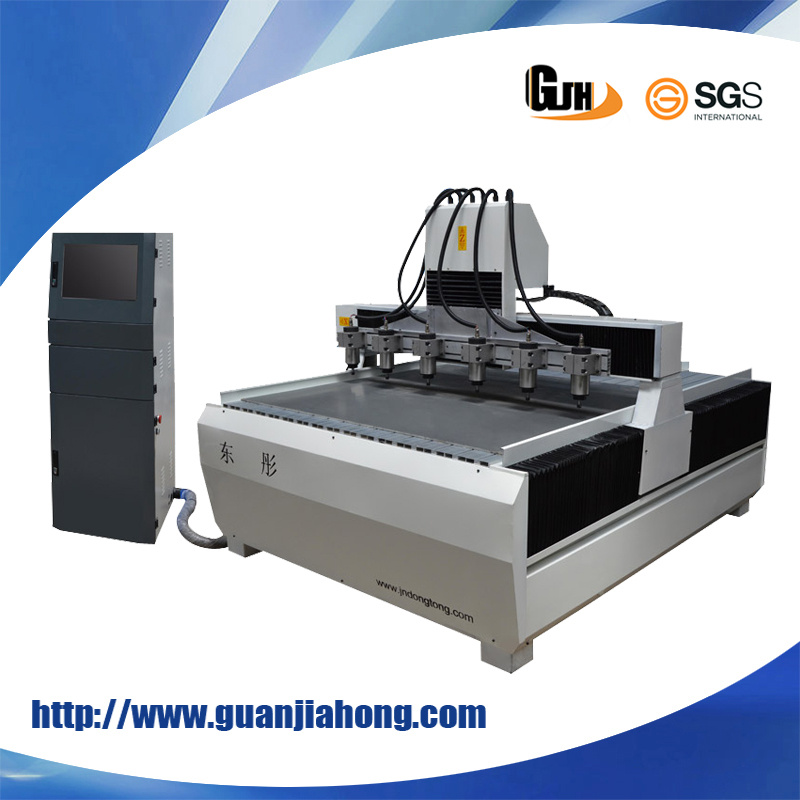

If you have specific requirement for Carving machine CNC router machine, customized is available.Rear Images for our CNC Router machine, that is our reliable quality products.

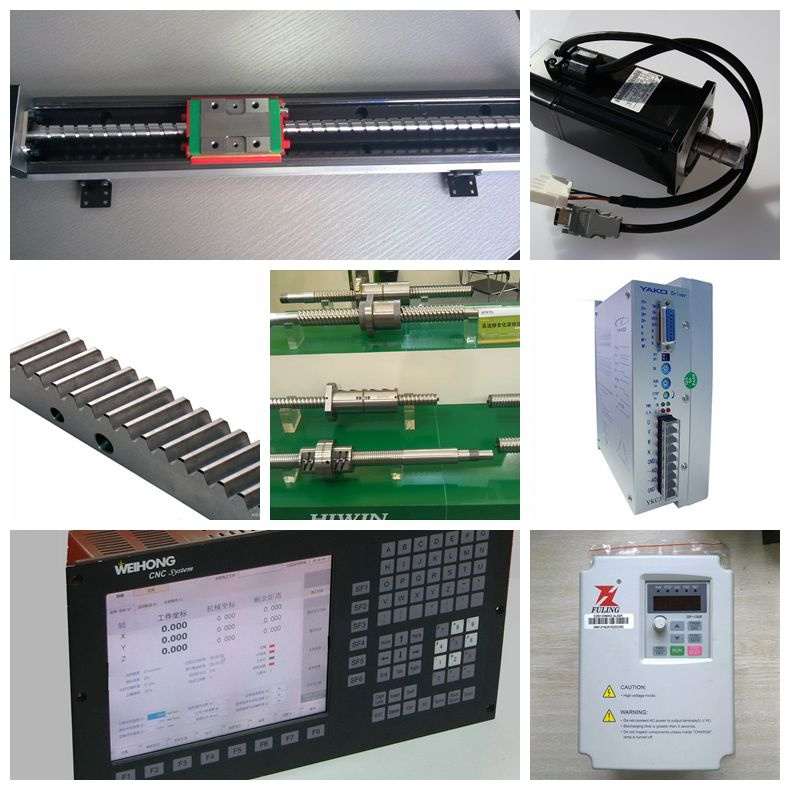

High quality Control system and High Precision Accessories:

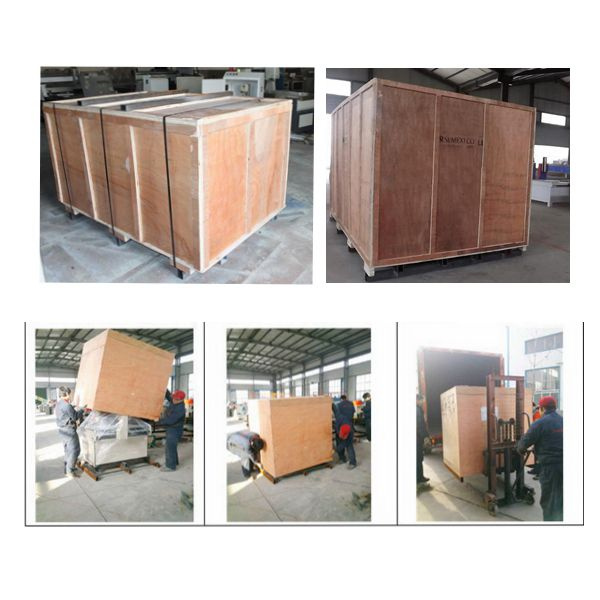

Strong Packing Gurantee: the Proudcts' precisions:
If you have specific requirement for CNC router machine, customized is available.Guarantee & After-sale service1. One year warranty under normal use and we supply lifelong maintenance.
2.24 hours technical support by Phone, Email, Skype, Msn, or romote.
3. Free training to make sure you master the operation of the cnc router.
OEM Service Available
1. Usually, we will manufacturer the machine as our regular design.
2. X Y Z Working Area could be custmer-oriented designing.
3. Special configuration could be customer-oriented designing.
Technical Parameter:
| NO | Performance index | Performance index | Parameter | Optional |
| 1 | Working area | X | 1000mm |
|
|
| Y | 1500mm |
|
|
| Z | 150mm |
|
| 2 | Table size |
| 1600mm*1500mm |
|
| 3 | Precision | Working precision | 0.02mm |
|
|
|
Repositioning precision | 0.02mm |
|
| 4 | Drive mode | XX axis | Screw |
|
|
| YY axis | Screw |
|
|
| ZZ axis | Screw |
|
| 5 | Speed | Max motion speed | 10000mm/min |
|
|
| Max engraving speed | 8000mm/min |
|
| 6 | ()Spindle
Air cooling |
Spindle power | 1.5KW | 0.8KW_3KW |
|
| Spindle speed | 0_24000r/min |
|
| 7 | Drive mode |
|
| Servo |
| 8 | Operating voltage |
| AC220V/50HZ |
|
| 9 | Command code |
| GG code |
|
| 10 | Operating system |
| 53C |
|
| 11 | New weight |
| 1500KG |
|
Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
