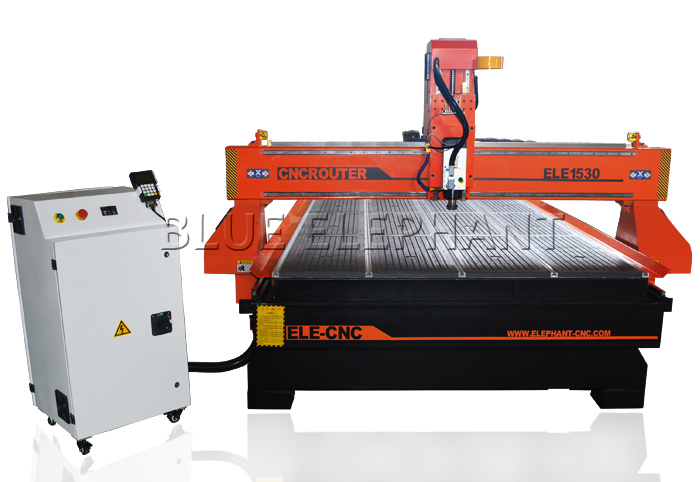

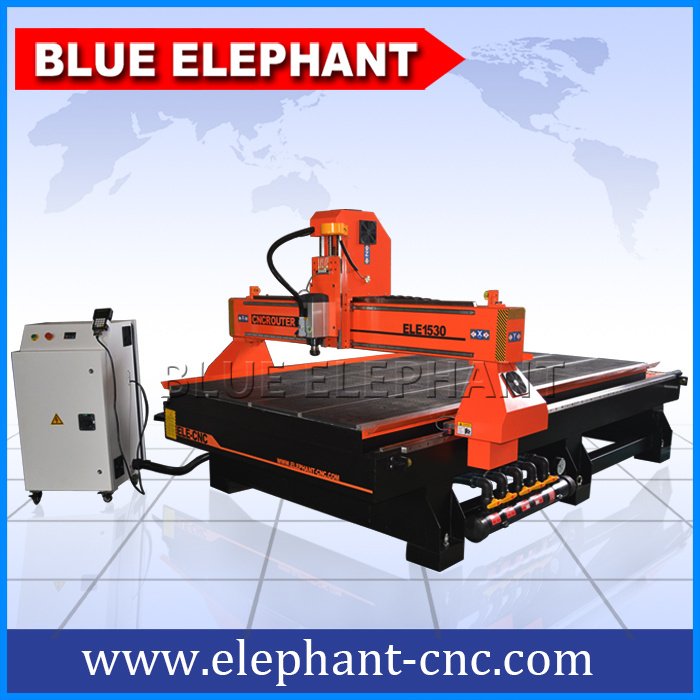

1530 Wood Door Cutting CNC Router with DSP Control Wood CNC Router Engraving and Cutting CNC Routers Price
| Price: |
US $ 4999-8999/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE-1530 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
CNC Router for CNC Wood Carving Machine |
| Working Area: |
1500*3000mm |
| Transmission: |
X, Y Rack Pinion Drive, Z Ball Screw Drive |
| Table Structure: |
T-Slot Vacuum |
| Spindle Power: |
9kw Italy Cooling Spindle |
| Spindle Speed: |
24000rpm |
| Traveling Speed: |
45m/Min |
| Working Speed: |
20m/Min |
| Voltage: |
AC 380V/3pH/50Hz |
| Control System: |
DSP/Mach 3 |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description
1530 Wood Door Cutting CNC Router with Dsp Control Wood Cnc Router Engraving and Cutting CNC Routers Price
Parameters| Description | Parameter |
| X,Y,Z Working Area | 1500x3000mm |
| Table Size | 1500x3000 mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | T-slot Table (Option: Vacuum and T-slot working table) |
| Frame | Welded Structure |
| X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| Max. Power Consumption | (Without Spindle) 3.2Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | Italy cooling spindle |
| Spindle Speed | 0-18000RPM |
| Drive Motors | stepper |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collet | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |

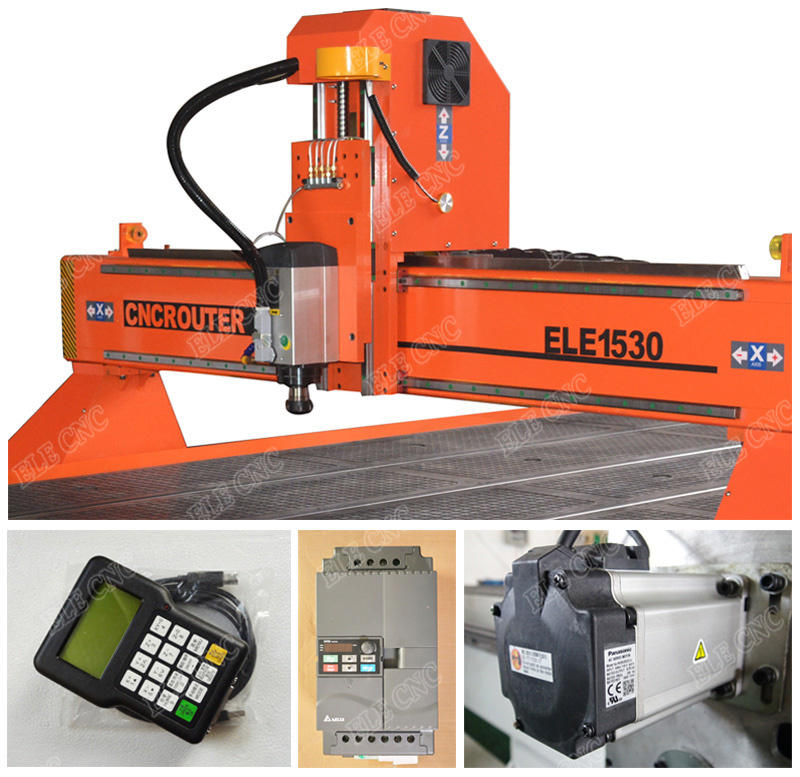

Features of 1530 cnc router:
- 1500x3000x200 working area
- 4.5Kw Italy HSD air cooling spindle ,24000rpm
- 5.5 KW Taiwan DELTA inverter
- DSP control system
- YASKAWA 850w servo motor and 1KW servo driver
- Imported Taiwan HIWIN 25# Square Linear Guide
- Z axis Original Taiwan TBI ball screw Transmission
- Automatic oil mist cooling sprayer system
- 5.5KW Air type vacuum pump
- Vacuum and T-slot table
- Separated control cabinet with two sides open
- Manual Oil Lubrication system
- Japan Ormon Limit Switch,
- France Schneider safety switch
- 21 different size cutter free
- Import milling cutter for aluminum 3mm 10pcs ,6mm 10pcs
- Voltage 220V 3phase 60HZ
- Plywood case Package
- Type3/Artcam software
Product Details of 1530 cnc router:

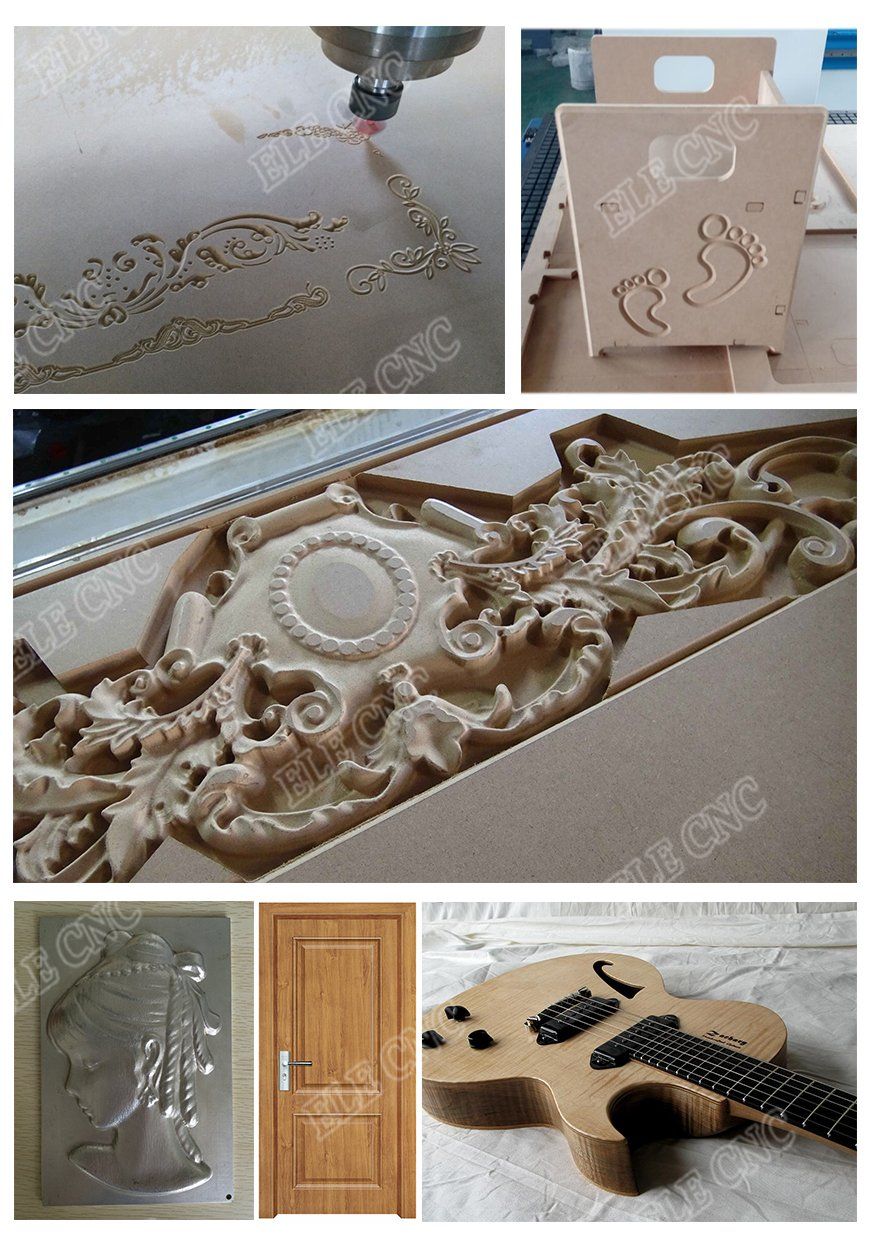

Applications1). WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2).Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word
making, blaster molding, and other advertising materials derivatives making.
3).Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4).relief sculpture and 3D engraving
5).Cylindrical object
Optional terms1.servo motor(you also can choose the famous servo system from Taiwan Or Japan)
2.rotary device(For engraving on cylindrical shape materials.)
Please kindly tell us your cylindrical shape materials' length and diameter. Then we can add right rotary axis to the machine, and quote the right price for your rotary axis.Safety Level:
1, Soft limit switch (Shock absorption pad)
2, Japanese Omron limit switch
3, French Schneider electronics
4, French Schneider rotary safety switch on the control box
5, Wires, high soft shielding twisted-pair cable, fire-resistant and with low failure rate, could be bent min 30,000,000 times
SamplesRelated ProductsWe also have any other models. Such as ATC cnc machine, mini cnc machine, multi-head cnc machine, cnc machine with rotary.
It also can be cusmized according to your working area or processing material.
Packaging and shippingPackaging : 1.outside package:Standard marine export plywood cases
2.inner package:Stretch film and plastic film for humidity
Shipping: maritime transport,air transport,land transport and the logistics transport
Customer Service1. Small parts will be supplied to you for free, such as, software CD, dongle.
2. Any problem will be replied to you within 24 hours!
3. By video, solution manual in English, Email, skype, QQ, telephone etc.
4, We supply lifelong after-sale service under our professional's guide for free!
5, Free training in our factory.FAQA This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by email / skype/ phone /trademanager online
service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
1 set machine, mixed order is also welcomed.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.

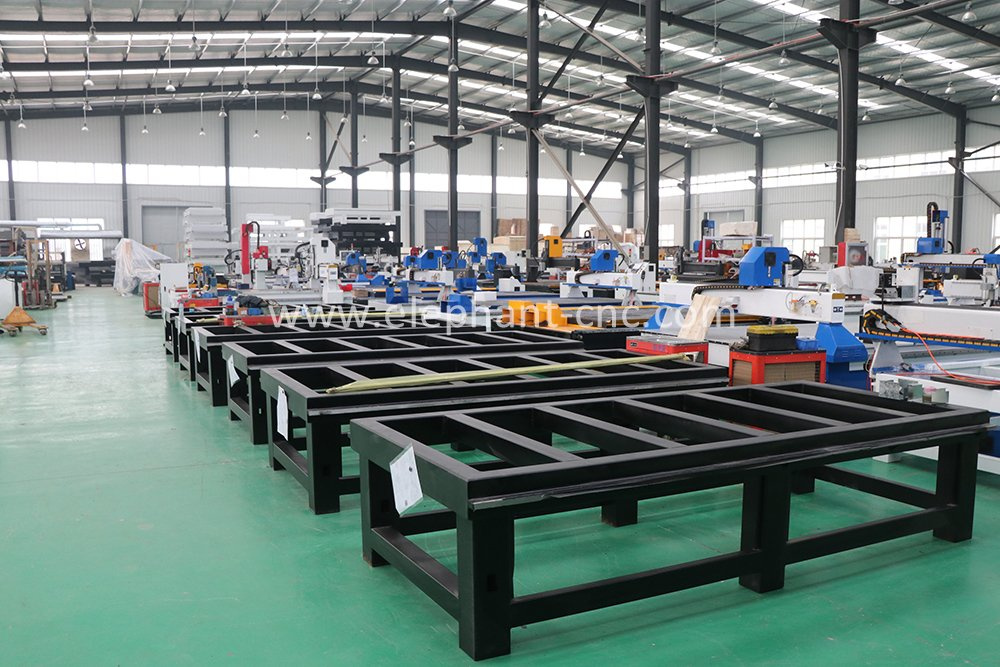

6. Send your order by air or by sea.Our Factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
