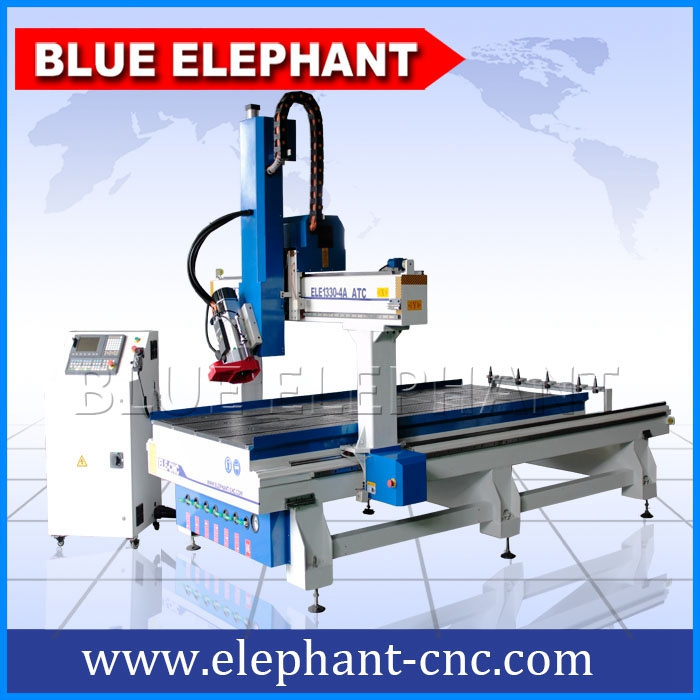

1330 4 Axis Router CNC Carving Engraving Machine
| Price: |
US $ 16999-29999set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE 1330 |
| Voltage: |
380V, 3 Phase, 50/60Hz(Optional:220V) |
| Dimension(L*W*H): |
3700*2140*1950mm |
| Control System: |
Taiwan Syntec Control System |
| Spindle: |
9kw Italy Hsd Atc Air Cooling Spindle |
| Spindle Speed: |
0-24000rpm |
| Motor And Driver: |
850W Japan Yaskawa |
| Inverter: |
11kw Delta |
| Table Surface: |
Vacuum&T-Slot Working Table |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description

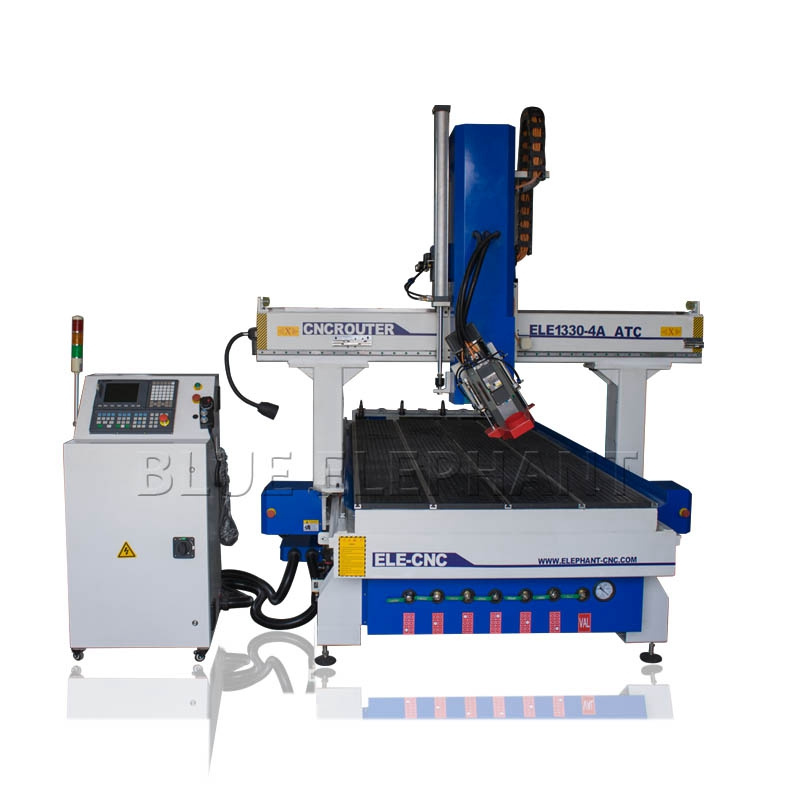

1330 4 axis router cnc , carving engraving machine

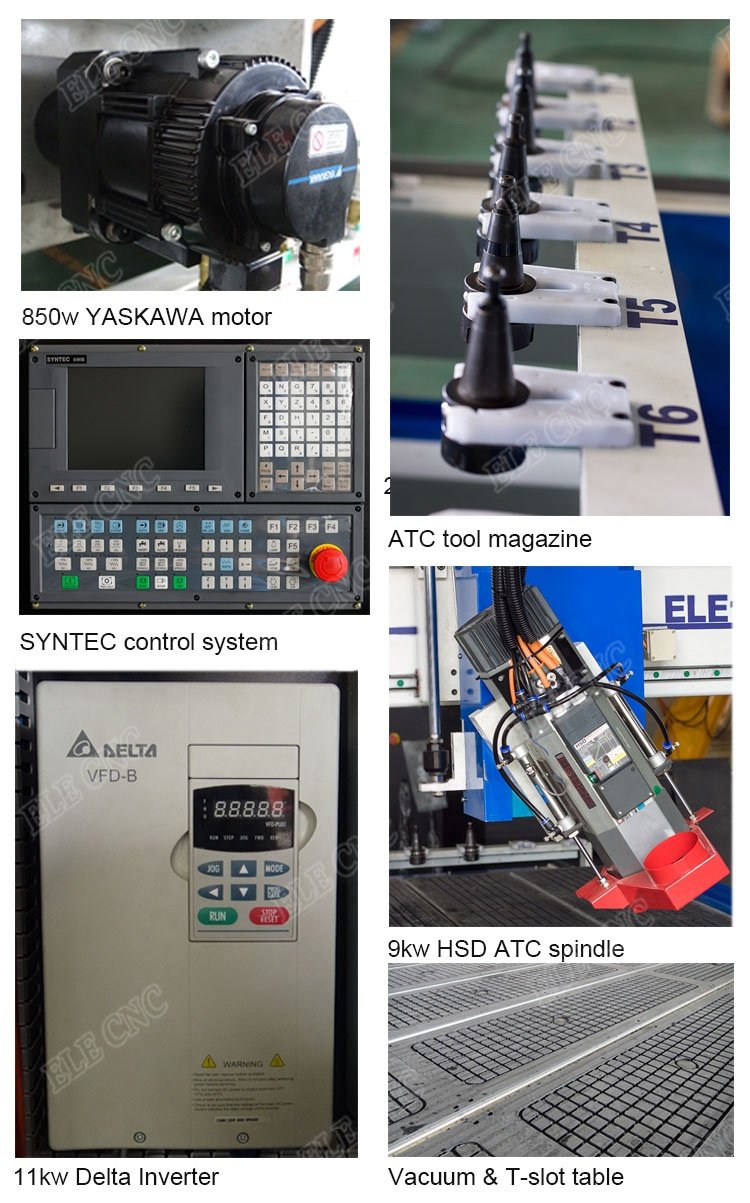

Features: 1).9 kw HSD ATC air cooling spindle from Italy
2).11kw DELTA inverter from Taiwan
3).Original Taiwan SYNTEC control system
4).850w Japan YASKAWA servo motor
5).4kw Becker vacuum pump
6).Vacuum and T-slot working table
7).1.5kw new type dust collector.
8).Automatic lubrication system
9).25# HINWIN square linear guide
10).Taiwan TBI ball screw
11).1.4m SYNTEC control box
Parameters:| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x3000x400mm |
| 2 | Table Size | 1300×3000mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot working table |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and TBI Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 3.2Kw |
| 10 | Max. Rapid Travel Rate | 33000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 9kw Italy HSD ATC air cooling spindle |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | 850W Japan YASKAWA servo motor |
| 15 | Working Voltage | 380v, 3 phase, 50/60HZ
(Option: AC220V/50/60Hz,3PH) |
| 16 | Command Language | G Code |
| 17 | Operating System | Taiwan SYNTEC 4 axis control System |
| 18 | Computer Interface | USB |
| 19 | Optional | Japan shimpo reducer,Becker vacuum pump,dust collector |
| 20 | Collet | IOS30 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
Details:
Applicantion:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engravingPackaging& DeliveryPackaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.

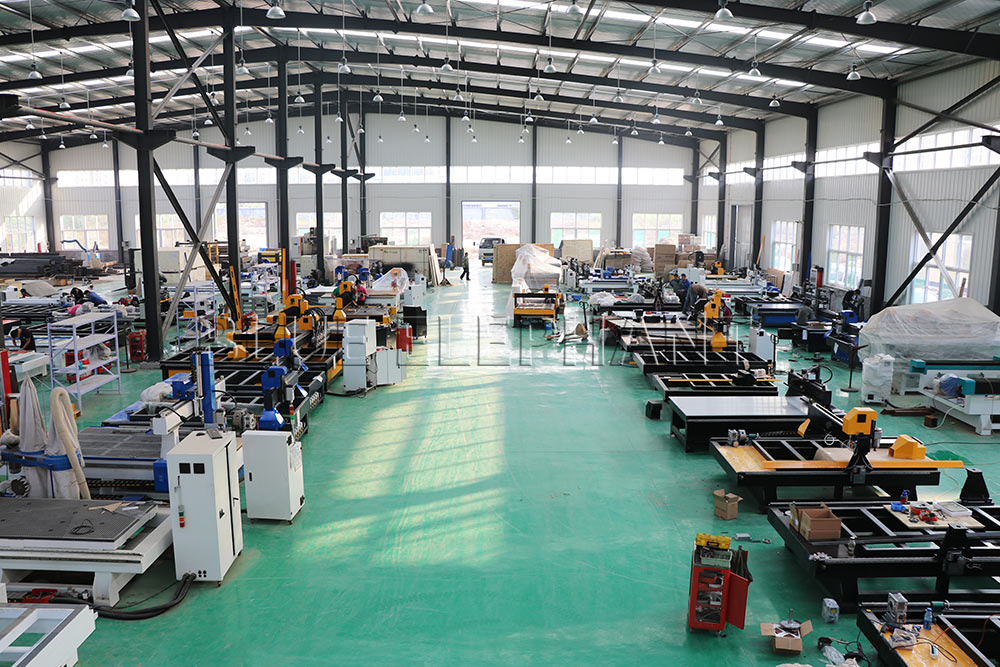

Welcome to our factory:
