| Price: | US $ 4999-9999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

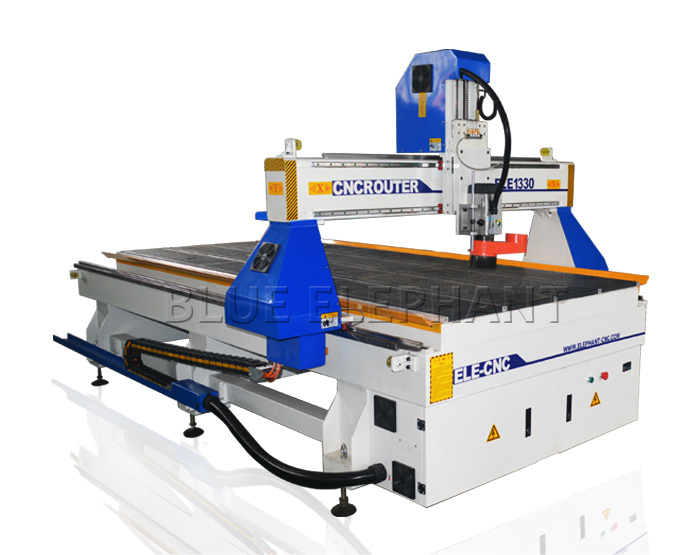

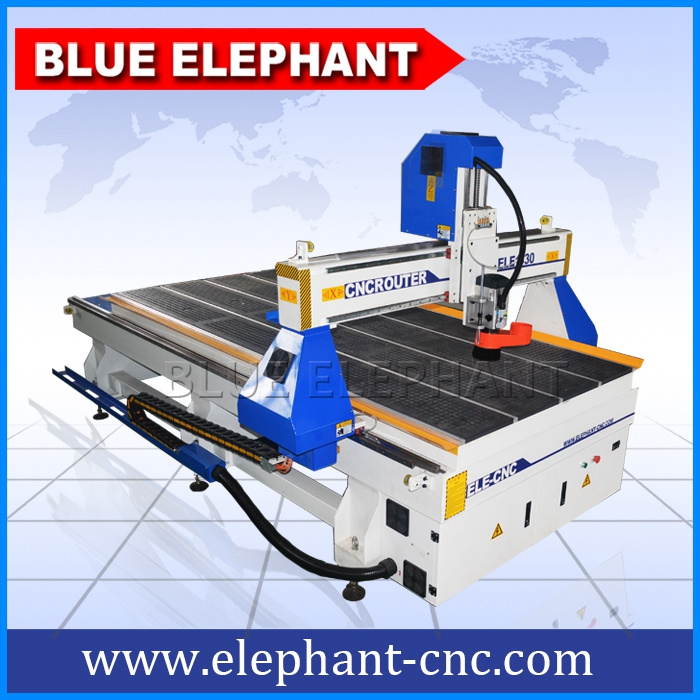

| Prod Model: | ELE 1330 |
|---|---|
| Voltage: | 380V, 3 Phase, 50/60Hz(Optional:220V) |
| Dimension(L*W*H): | 3700*2140*1950mm |
| X,Y,Z Working Area: | 1300X3000X400mm |
| Control System: | Ncstudio |
| Spindle Power: | 4.5kw Italy Hsd Air Cooling Spindle |
| Inverter: | 5.5kw Delta |
| Motor And Driver: | 750W Leadshine Mixed Servo |
| Spindle Speed: | 0-18000rpm |
| Frame: | Big Steel Tube Welded Structure |
| Table Surface: | Vacuum&T-Slot Working Table |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x200mm |

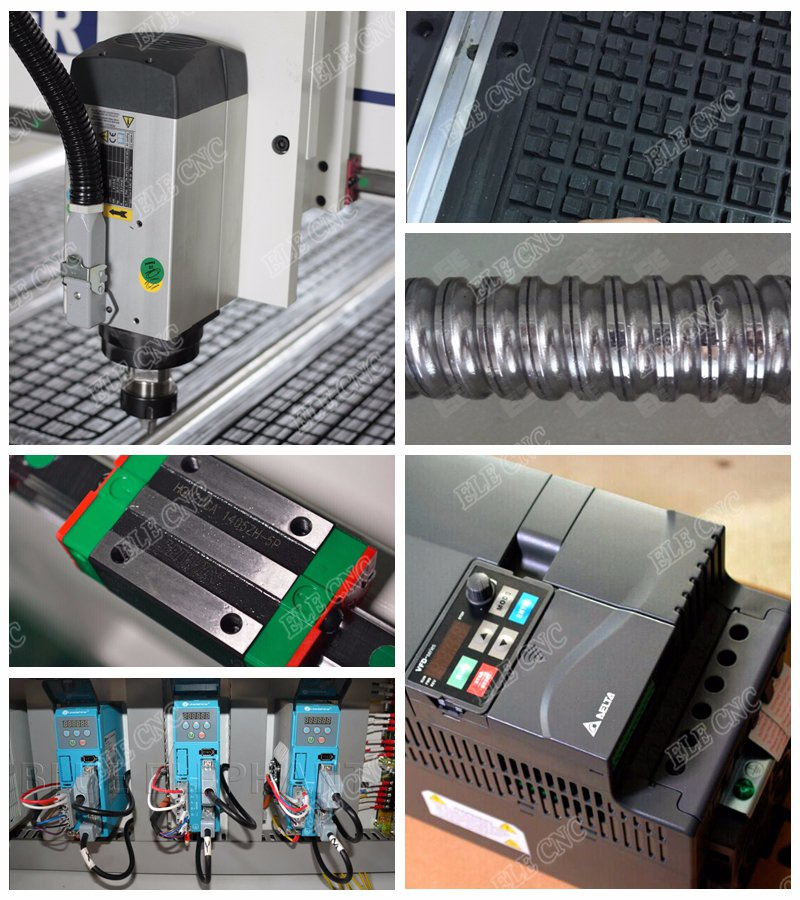

| Spindle | 4.5kw HSD air cooling spindle |
| Inverter | 5.5kw Delta Inverter |
| Motor driver | 750w Leadshine mixed servo |
| Spindle Speed | 0-18000RPM |
| Control System | NCstudio |
| Table Surface | T-slot&vacuum Table |
| X, Y Structure | #20 Taiwan HIWIN Linear guide and helical rack |
| Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Lubrication system | Manual |
| Command Language | G Code |
| Computer Interface | USB |
| Collet | ER32 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

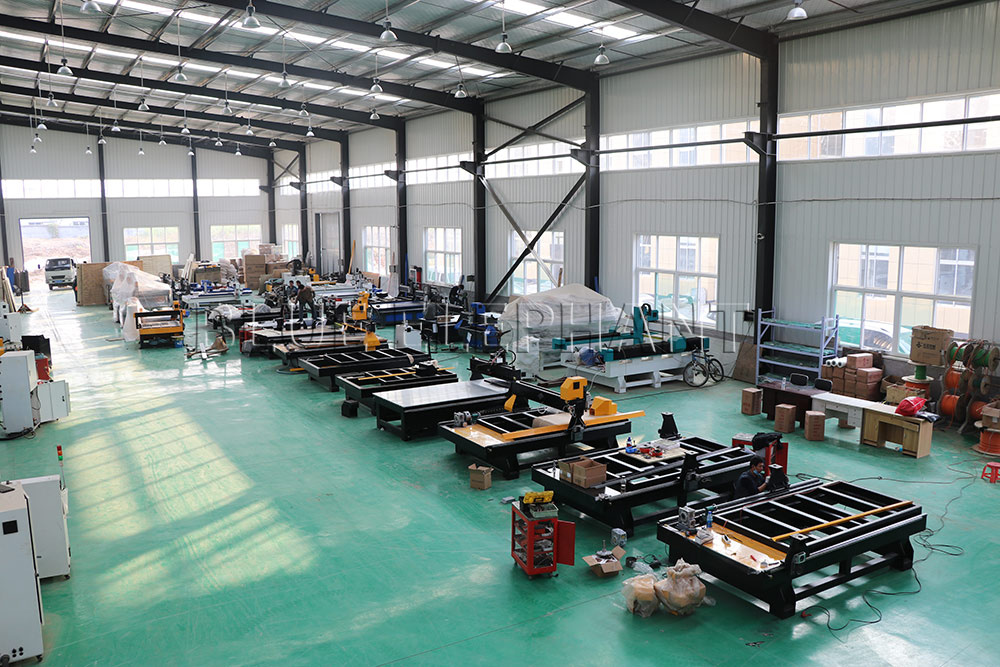

Welcome to our factory:
Contact us:
Web: www.elephant-cnc.com
If you have any questions, please send an inquiry to me.
