Product Specifications
| Prod Model: |
1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V/220V |
| Weight: |
1500kgs |
| Drive Mode: |
Stepper |
| Dimension: |
1300*2500*200mm |
| Control System: |
Nc Studio or Richauto |
| Guild Rail: |
Hiwin Square Rail |
| Ball Screw: |
PMI, Taiwan |
| Spindle Layout: |
Spindle Over |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Spindle Number: |
3 |
Product Description

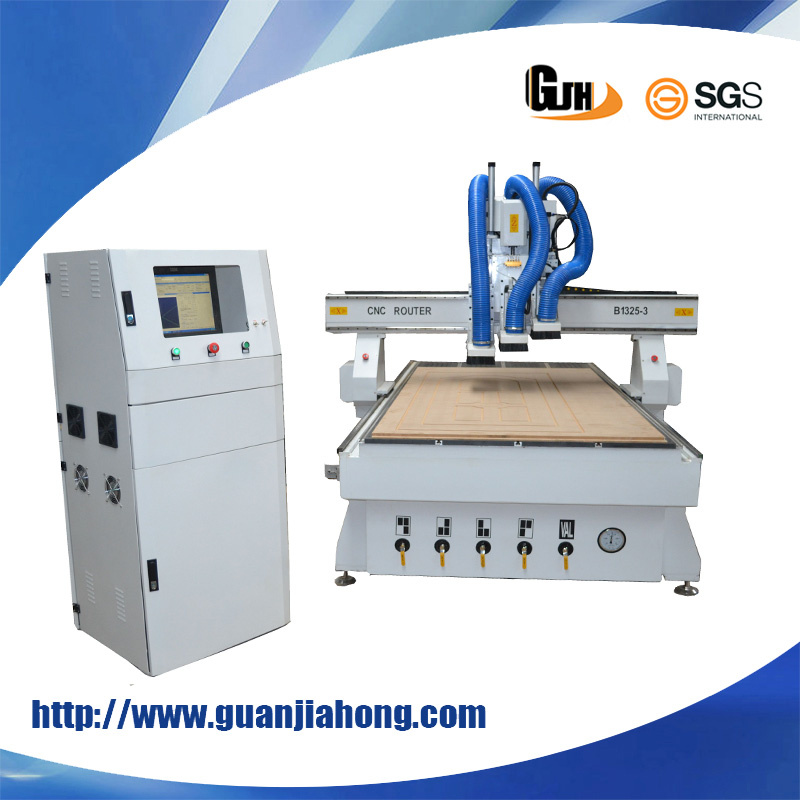

Multi-workstage Fulling Inverter, Yako Driver, 1325, ATC, Engraving/ Milling Cnc Router
Applicable industries and materials:
Processing various kinds of moulds and furniture such as door, window, cabinet, craft wooden door, screen and so on.
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
3. Special configuration could be customer-oriented designing.
| NO | Performance index | Performance index | Parameter |
| 1 | Working area | X axis | 1300mm |
| | | Y axis | 2500mm |
| | | Z axis | 200mm |
| 2 | Table size | | 1300mm*2500mm |
| 3 | Accuracy | Processing precision | 0.05mm |
| | | Reposition precision | 0.05mm |
| 4 | Drove mode | X axis | Rack |
| | | Y axis | Rack two motor |
| | | Z axis | Ball screw |
| 5 | Speed | Max travel speed | 30000mm/min |
| | | Max engraving speed | 15000mm/min |
| 6 | Spindle(water-cooling) | Spindle power | 5.5KW |
| | | Spindle speed | 0_24000r/min |
| 7 | Running mode | | Stepper |
| 8 | Operating voltage | | AC220V/50HZ |
| 9 | Command code | | G Code |
| 10 | Operating system | | Nc Studio 53C |
| 11 | Table | | Vacuum |
| 12 | Machine's size | | 3100x2200x1800mm |
Features:
1. Whole machine is welded with seamless steel structure; The stability is excellent, not easy to be deformed. Vacuum table with 6 vacuum zones, which can adsorb different size materials.
2. Three axes adopt Taiwan PMI high precision linear orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts ball screw, with high precision and long life time.
3. Well compatibility: CAD/CAM designing software e. G. Type 3/ Artcam/ Castmate/ Wentai etc.
4. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.
5. Adopting advanced Nc Studio system, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
6. Adopting 3.5Kw air-cooling spindle make the machine have high precision, long life-time and steady working capacity.
7. Perfect oil-inject system makes maintenance much easier.
8. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
Guarantee & After-sale service
1. One year warranty under normal use and we supply lifelong maintenance.
2.24 hours technical support by Phone, Email, Skype, Msn, or romote.
3. Free training to make sure you master the operation of the cnc router.
OEM Service Available
1. Usually, we will manufacturer the machine as our regular design.
2. X Y Z Working Area could be custmer-oriented designing.
