| Price: | US $ 3999-8999/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

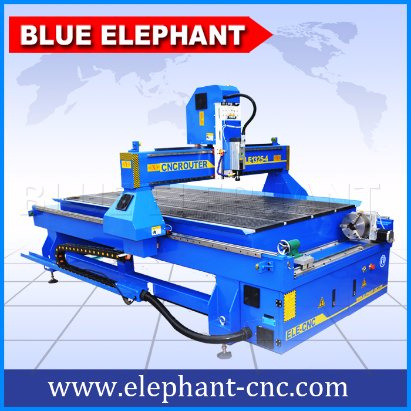

| Prod Model: | ELE 1325 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| X,Y,Z Working Area: | 1300X2500X200mm |
| Spindle: | Italy Hsd Air Cooling Spindle |
| Control System: | DSP Control System |
| Weight: | 1500kg |
| Spindle Power: | 3kw |
| Motor: | Stepper Motor |
| Driver: | Stepper Driver |
| Table Surface: | T-Slot and Vacuum Working Table |
| Spindle Speed: | 0-18000rpm |
| Collet: | Er25 |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |

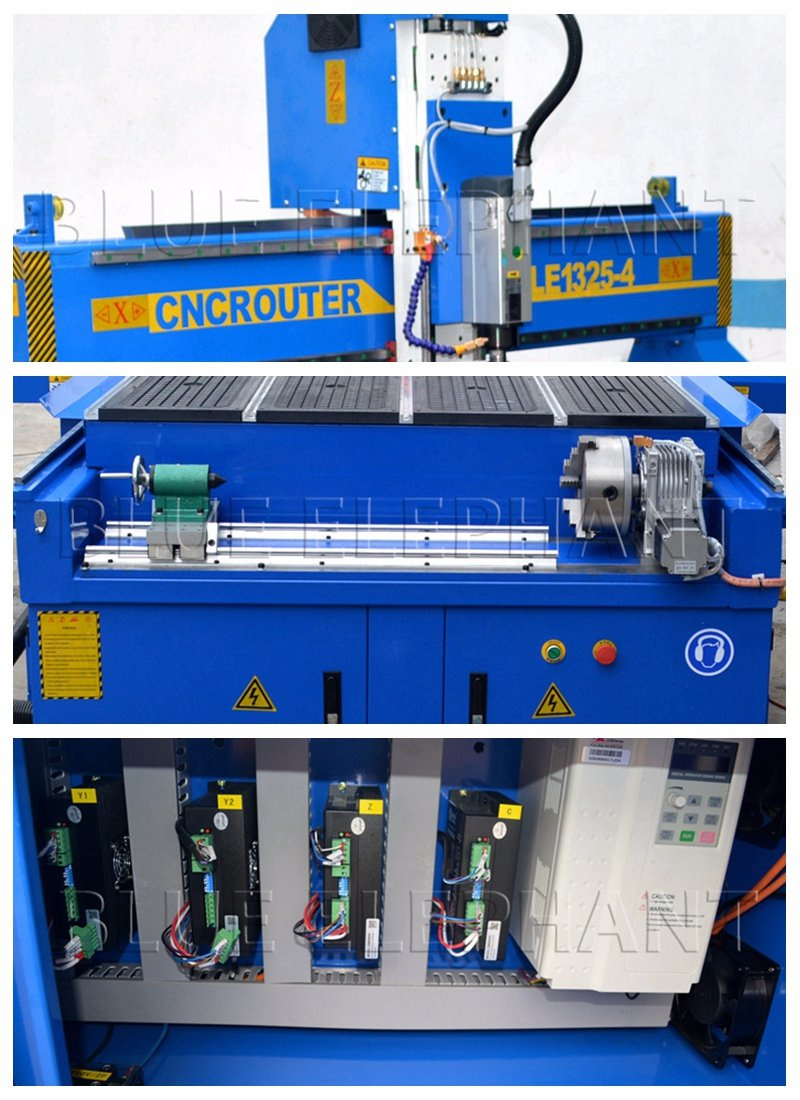

Features :
Parameters :
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum and T-slot Table |
Frame | Welded Structure |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 3KW |
Spindle Speed | 0-18000RPM |
Drive Motors | Stepper System |
Working Voltage | AC380V/220v,50/60Hz,1ph/3PH |
Command Language | G Code |
Operating System | DSP System(Options: Ncstudio/Mach3 PC Software) |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
PS:All the working area and specifications can be customized according to your requests.
Applications:
1.Wood furnitur industry : Wave plate , fine pattern , antique furniture , wooden door , screen , craft sash , composite gates , cupboard doors , interior doors , sofa legs , headboards and so on .
2.Advertising industry : Advertising indentification , sign making , acrylic engraving and cutting , crystal word making , blaster molding , and other advertising materials derivatives making .
3.Die industry : A sculpture of copper , aluminum , iron and other metal molds , as well as artificial marble , sand , plastic sheeting , PVC pipe , wooden planjs and other non-metallic mold .
4.Relief sculpture and 3D engraving
5.Cylindrical object
Samples:

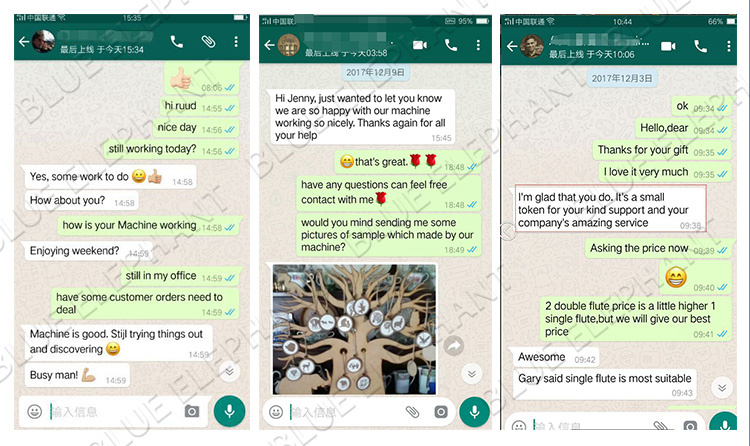

Customers Feedback:

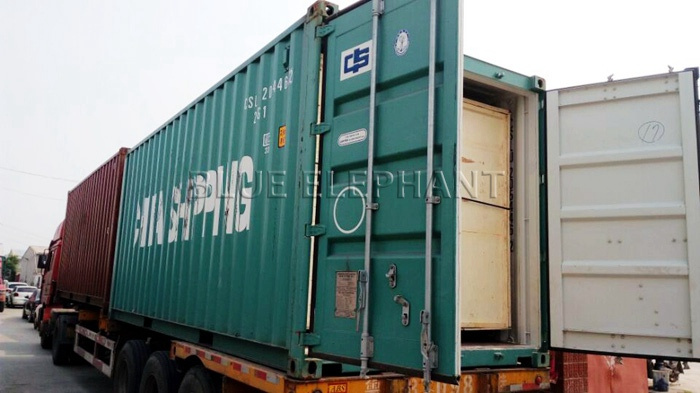

Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
