Product Specifications
| Prod Model: |
DT1325A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Advertising |
| Engraving Machine Type: |
CNC Engraving Machine |
| Power: |
High Power |
| Drive Type: |
Stepper Drive |
| Control: |
CNC |
| Certification: |
SGS |
| Current: |
AC |
| Condition: |
New |
| Table Size: |
1300*2500 |
| Screw: |
PMI From Tainwan |
Product Description

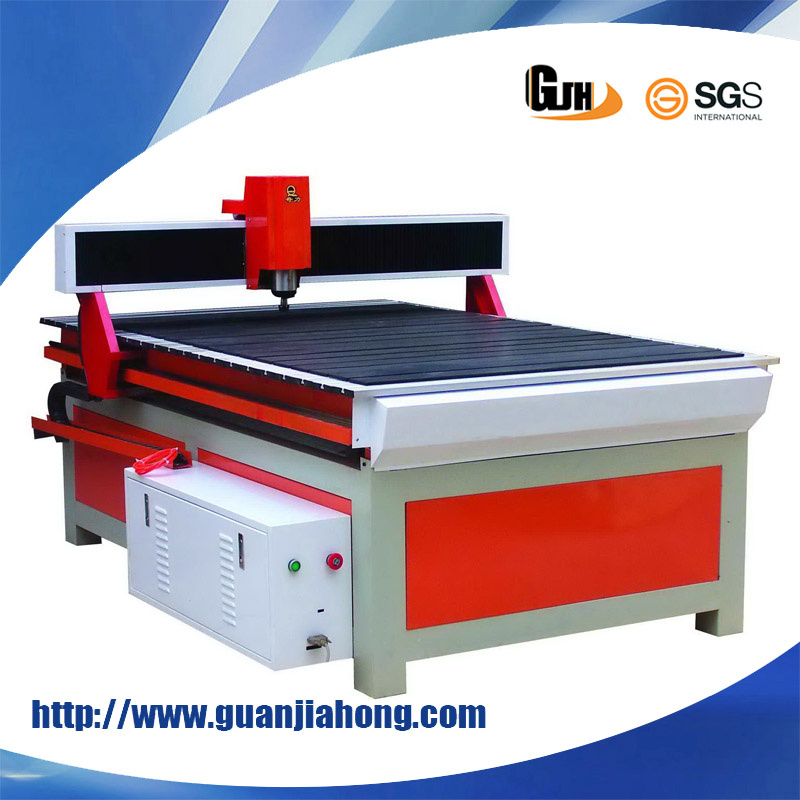

1325 High Speed Advertising/ Woodworking CNC Router From Professional cnc router machine maufacturor.Feature: 1. DT1325A specially designed for advertisement.
2. The machines'body is strong, rigid, high precision, eliable and durable. 3. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision...4. Using well-known domestic brands of water-cooled brushless spindle, low noise, and strong cutting ability, to ensure the long time working.5. High-performance driven motor to ensure that the machines high speed and accuracy6. Designer perfectly, selects the best machine accessories, to minimize the failure rate preferred7. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing8. Compatibility, compatible Type3/ Artcam/ Castmate/Wentai, and so on a variety of CAD/CAM design softwareApplication:1. Woodworking industry: three-dimensional wave board processing, cabinet door, craft wooden door, folding screen, process window milling shape carved furniture products.
2. Advertising industry: advertising signs, PVC board, chevron board, double color boards, logo making, acrylic cutting, plastic molding, characters, crystal cutting, plate making, cutting PVC board, acrylic, LED/neon trough, the hole shape literally cut, blister light boxes mould
3. Arts and crafts industry: in the wood, bamboo, marble, organic board, double color boards, such as material for a variety of exquisite design and text on the sculpture.Technical parameter:| NO | Performance index | Performance index | Parameter | Optional |
| 1 | Working area | X axis | 1300mm |
|
|
| Y axis | 2500mm |
|
|
| Z axis | 150mm |
|
| 2 | Table size |
| 1300mm*2500mm |
|
| 3 | Accuracy | Processing precision | 0.02mm |
|
|
| Repositioning precision | 0.02mm |
|
| 4 | Drove mode | X axis | rack |
|
|
| Y axis | rack |
|
|
| Z axis | screw |
|
| 5 | Speed | Max travel speed | 8000mm/min |
|
|
| Max engraving speed | 6000mm/min |
|
| 6 | Spindle(water-cooling) | Spindle power | 3KW | 0.8KW_3KW |
|
| Spindle speed | 0_24000r/min |
|
| 7 | Running mode |
| stepper | Servo |
| 8 | Operating voltage |
| AC220V/50HZ |
|
| 9 | Command code |
| G code |
|
| 10 | Operating system |
| Genuine Weihong 53C |
|
| 11 | Net weight |
| 1300KG |
|

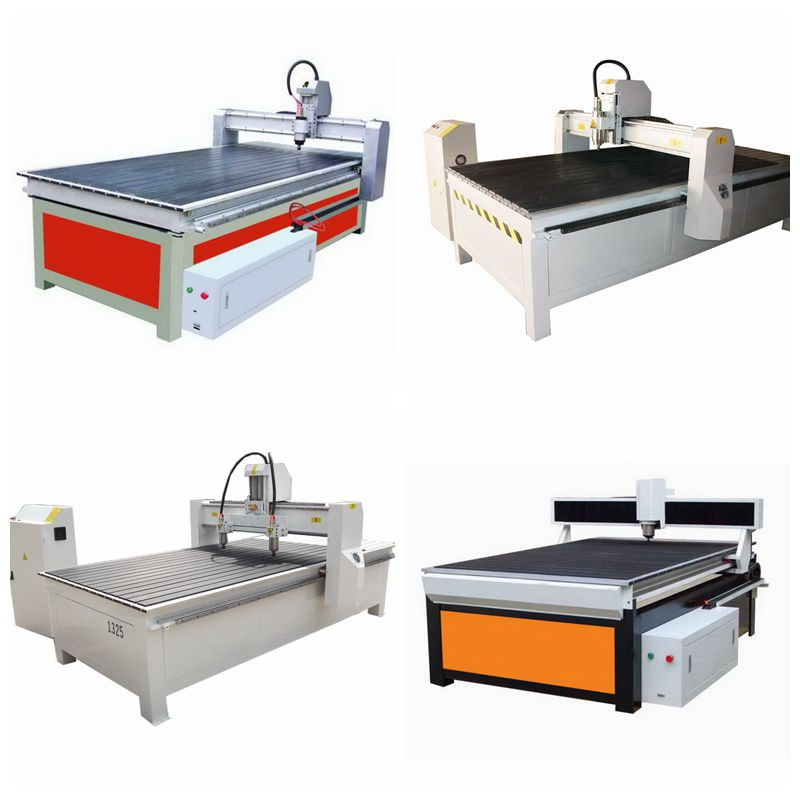

So many DT1325-1 modles are waiting for your choice:
From our Perfect Wood Engraving Samples, you can check our best quality:
High Quality Accessories bring our machine HIGH PRECISION:
Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.Guarantee & After-sale service
1. One year warranty under normal use and we supply lifelong maintenance.
2.24 hours technical support by Phone, Email, Skype, Msn, or romote.
3. Free training to make sure you master the operation of the cnc router.
OEM Service Available
1. Usually, we will manufacturer the machine as our regular design.
2. X Y Z Working Area could be custmer-oriented designing.
3. Special configuration could be customer-oriented designing.
Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
