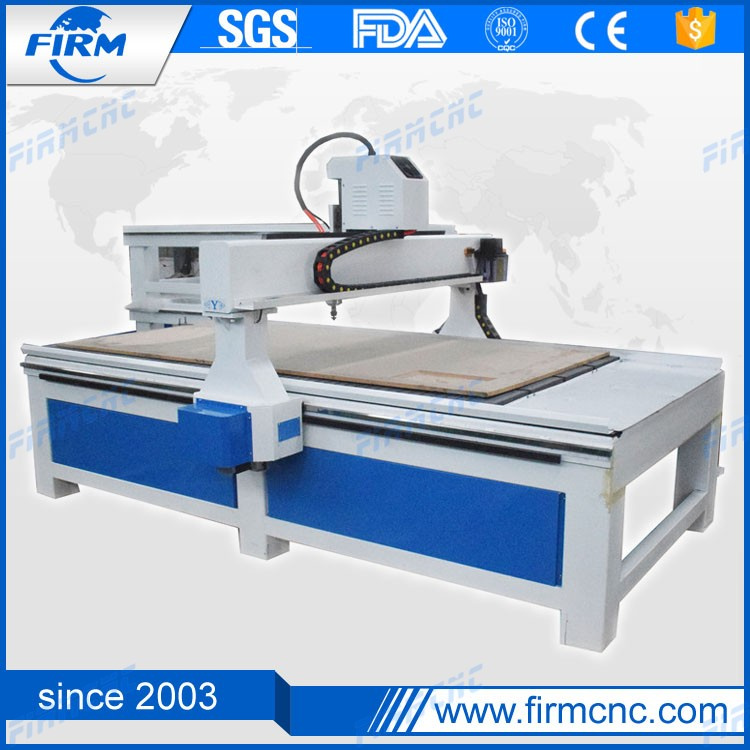

1325 Furniture Engraving Cutting Machine Wood Carving CNC Router
| Price: |
US $ 1-8950/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |

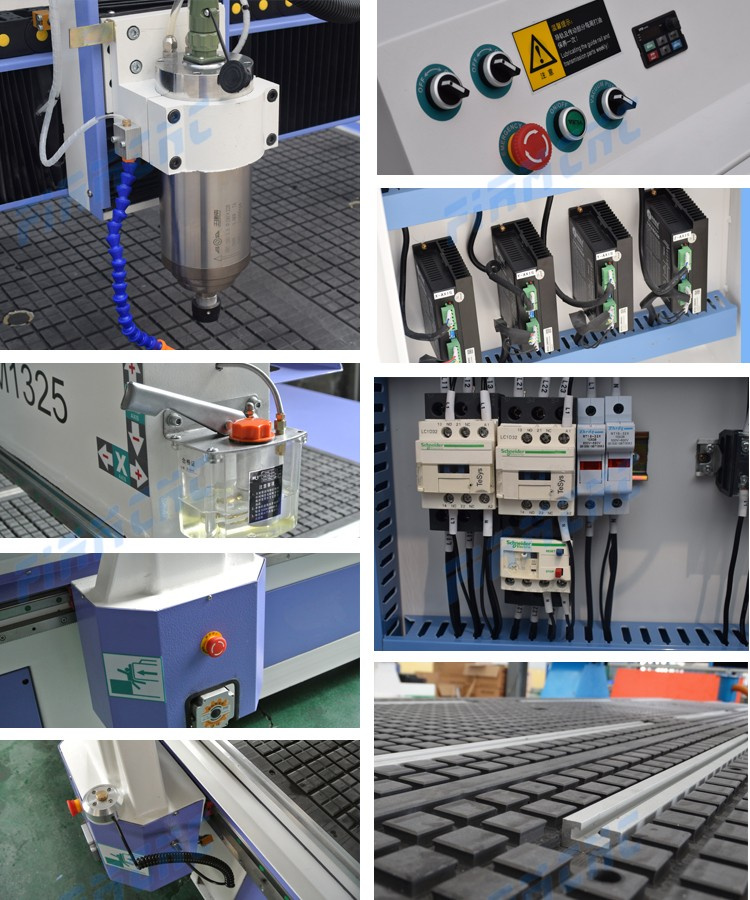

Product Specifications
| Prod Model: |
FM1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
1300*2500*200mm |
| Structure: |
Welded Steel Tube Structure |
| Spindle: |
3.0kw Water Cooling Spindle |
| Control System: |
DSP Control System |
| Motor And Driver: |
Leadshine Stepper Motor and Driver |
| Inverter: |
Fulling Inverter |
| Table: |
T-Slot and Vacuum |
| Rails: |
Taiwan Hiwin Square Rails |
| Ball Screw: |
Taiwan Tbi Ball Screw |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description
1325 Furniture Engraving Cutting Machine Wood Carving CNC RouterFeatures:
1. Fuselage strong deformation, good rigidity, high precision, reliable performance, Durable in use.
2. Main configuration or chooses import, joint venture brand components, stable performance.
3. Table overall thickening, USES the whole cast iron structure.good to ensure long service life.
4. Using domestic well-known brand water-cooled spindle, low noise, large cutting force,
can ensure bulk processing for a long time.
Technicla parameter
No. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 2 | X,Y,Z Traveling Positioning Accuracy | ±0.03mm |
| 3 | X,Y,Z Repositioning Accuracy: | ±0.03mm |
| 4 | Table Surface | Vacuum and T-slot table |
| 5 | Frame | Welded steel Tube Structure |
| 6 | X, Y Structure | Rack and Pinion Drive |
| 7 | Z Structure | Taiwan TBI Ball Screw |
| 8 | Max. Rapid Travel Rate | 40000mm/min |
| 9 | Max. Working Speed | 30000mm/min |
| 10 | Spindle Power | 3KW |
| 11 | Spindle Speed | 0-24000RPM |
| 12 | Working Voltage | AC220V/60HZ ,1PH (Option:380V) |
| 13 | Command Language | G Code |
| 14 | Operating System | DSP Control System |
| 15 | Computer Interface | USB |
| 16 | Collet | ER25 |
| 17 | X,Y Resolution | <0.03mm |
| 18 | Running Environment Temperature | 0 - 45 Centigrade |
| 19 | Relative Humidity | 30% - 75% |
| 20 | Packing Size | 3170X2070X1800mm |
| 21 | N.W. | 1500KG |
| 22 | G.W. | 1650KG |
Application1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble,sand, plastic board PVC materials, wood board etc.4.Other field:It can engrave many image, embossment,and widely used in artistic industry.
Package: 1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.3) fumigation-free4)With shipping mark if you like.5)Outside: Marked packing size, model, weight and other information
After sale service1. 24 hour Technical support by phone, e-mail or MSN around the clock.2. Friendly English version manual and operation video CD disk.3.7-15 working days after down payment or full payment.4. Machine will be adjusted before it is delivered; operation disk/CD was included.5. Our technician can give you remote guide online (Skype or MSN) if you have any question.6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

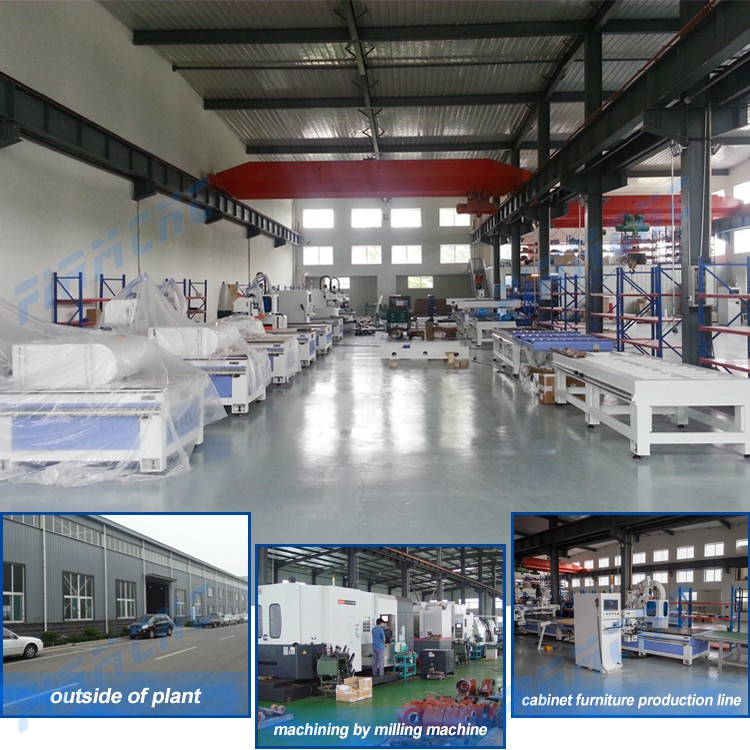

Company information:FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser marking machine appliance manufacture.We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser marking machine appliances.
JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330 Fax : 0086-0531-69986330
Website: http://firmcnc.en.alibaba.com/, http://firmcnc.en.made-in-china.com
www.firmcnc.com
Cell phone: +86-13954117091
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China
Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
