Product Specifications
| Prod Model: |
1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
1300*2500 |
| Control System: |
Nc Studio |
| Drive Mode: |
Stepper |
| Guild Rail: |
Hiwin Square Rail |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Spindle Over |
| Certification: |
SGS |
Product Description

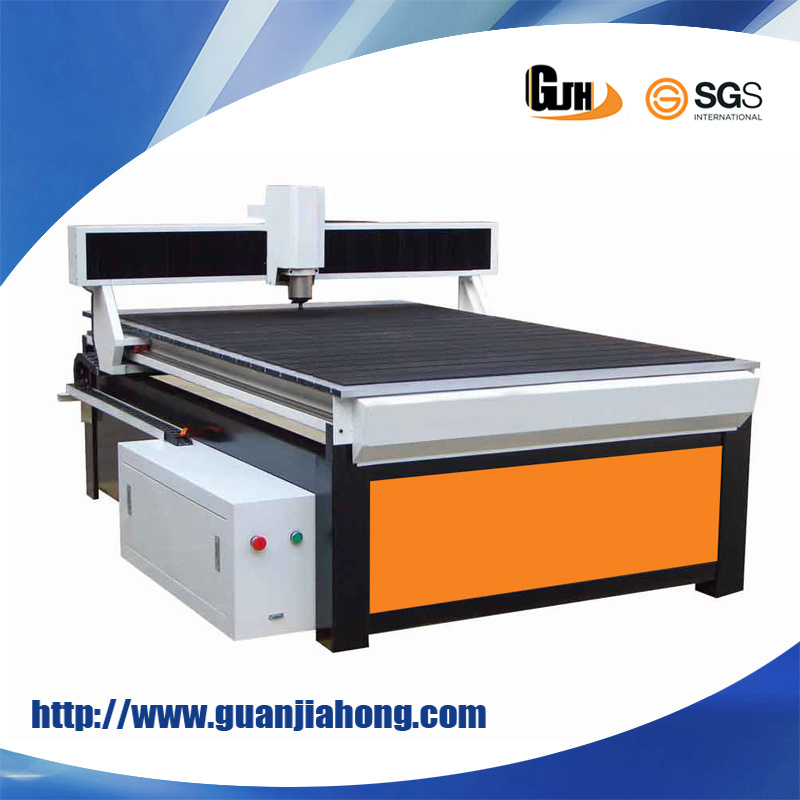

Professional cnc router machine maufacturor for 9 years!
Feature:
1. DT1325 specially designed for advertisement.
2. The machines'body is strong, rigid, high precision, eliable and durable.
3. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-
Precision...
4. Using well-known domestic brands of water-cooled brushless spindle, low noise, and strong cutting
Ability, to ensure the long time working.
5. High-performance driven motor to ensure that the machines high speed and accuracy
6. Designer perfectly, selects the best machine accessories, to minimize the failure rate preferred
7. Breakpoint specific memory, power outages continued carving, processing time forecast, and other
Functions to ensure that accidental processing
8. Compatibility, compatible Type3/ Artcam/ Castmate/Wentai, and so on a variety of CAD/CAM design
Software
Application:
1. Woodworking industry: Three-dimensional wave board processing, cabinet door, craft wooden door,
Folding screen, process window milling shape carved furniture products.
2. Advertising industry: Advertising signs, PVC board, chevron board, double color boards, logo making,
Acrylic cutting, plastic molding, characters, crystal cutting, plate making, cutting PVC board, acrylic,
LED/neon trough, the hole shape literally cut, blister light boxes mould
3. Arts and crafts industry: In the wood, bamboo, marble, organic board, double color boards, such as
Material for a variety of exquisite design and text on the sculpture.
It is our pleasure to produce any tpye cnc machines as per your requirement.
| NO | Performance index | Performance index | Parameter | Optional |
| 1 | Working area | X axis | 1300mm |
|
|
| Y axis | 2500mm |
|
|
| Z axis | 150mm |
|
| 2 | Table size |
| 1300mm*2500mm |
|
| 3 | Precision | Processing precision | 0.02mm |
|
|
| Repositioning precision | 0.02mm |
|
| 4 | Drove mode | X axis | rack gear |
|
|
| Y axis | rack gear |
|
|
| Z axis | screw |
|
| 5 | Speed | Max travel speed | 50000mm/min |
|
|
| Max engraving speed | 20000mm/min |
|
| 6 | Spindle(water-cooling) | Spindle power | 3KW | 0.8KW_3KW |
|
| Spindle speed | 0_24000r/min |
|
| 7 | Running mode |
| stepper | Servo |
| 8 | Operating voltage |
| AC220V/50HZ |
|
| 9 | Command code |
| G code |
|
| 10 | Operating system |
| Weihong 53C |
|
| 11 | Net weight |
| 1300KG |
|
Parts of machine can be customized as your requirement:
1. Motor (stepper or servo motor)
2. Spindle ( air-cooling or water-cooling spindle)
3. Guide rail (round guide rail or square guide rail)
4. The table of machine (Vacuum table, T-slot table, table moving)
5. Other parts
OEM Service Available
1. Usually, we will manufacturer the machine as our regular design.
2. X Y Z Working Area could be customer-oriented designing.
3. Special configuration could be customer-oriented designing.
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/ tel and lifetime technical support
Configuration as you require:
1. System: NC studio, SYNTEC , Richauto......
2. Motor: Yaskawa, Pansonic, Estun, Delta......
3. Guild rail: PMI, Hiwin ......
4. Spindle: HSD, HQD......
If you have specfic requirement for advertising cnc router machine, customization is available.
