Product Specifications
| Prod Model: |
1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
1300*2500 |
| Guild Rail: |
Hiwin Square Rail |
| Ball Screw: |
PMI, Taiwan |
| Drive Mode: |
Stepper |
| Control System: |
Nc Studio, Shanghai |
| Function: |
Lettering |
| Automation: |
Automatic |
| Control: |
CNC |
| Current: |
AC |
| Application: |
Stone Industry |

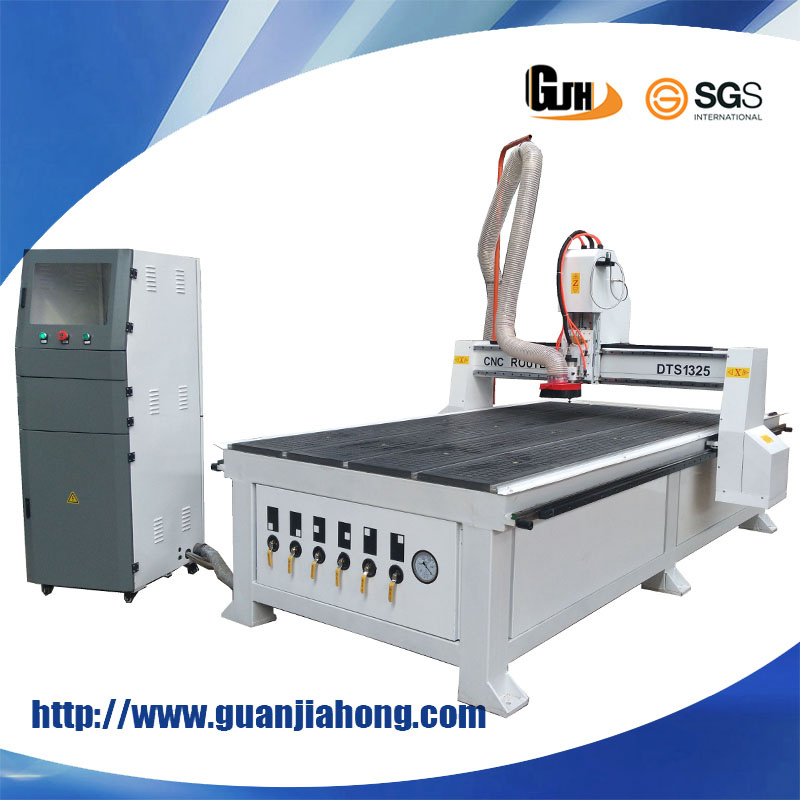

Product Description
Professional cnc router machine maufacturer for 9 years!
Feature:
1. DT1325 specially designed for advertisement.
2. The machines'body is strong, rigid, high precision, eliable and durable.
3. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision...
4. Using well-known domestic brands of water-cooled brushless spindle, low noise, and strong cutting ability, to ensure the long time working.
5. High-performance driven motor to ensure that the machines high speed and accuracy
6. Designer perfectly, selects the best machine accessories, to minimize the failure rate preferred
7. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing
8. Compatibility, compatible Type3/ Artcam/ Castmate/Wentai, and so on a variety of CAD/CAM design software
Application:
1. Woodworking industry: Three-dimensional wave board processing, cabinet door, craft wooden door, folding screen, process window milling shape carved furniture products.
2. Advertising industry: Advertising signs, PVC board, chevron board, double color boards, logo making, acrylic cutting, plastic molding, characters, crystal cutting, plate making, cutting PVC board, acrylic, LED/neon trough, the hole shape literally cut, blister light boxes mould
3. Arts and crafts industry: In the wood, bamboo, marble, organic board, double color boards, such as material for a variety of exquisite design and text on the sculpture.
It is our pleasure to produce any tpye cnc machines as per your requirement.
| NO | Performance index | Performance index | Parameter | Optional |
| 1 | Working area | X axis | 1300mm |
|
|
| Y axis | 2500mm |
|
|
| Z axis | 150mm |
|
| 2 | Table size |
| 1300mm*2500mm |
|
| 3 | Precision | Processing precision | 0.02mm |
|
|
| Repositioning precision | 0.02mm |
|
| 4 | Drove mode | X axis | rack gear |
|
|
| Y axis | rack gear |
|
|
| Z axis | screw |
|
| 5 | Speed | Max travel speed | 50000mm/min |
|
|
| Max engraving speed | 20000mm/min |
|
| 6 | Spindle(water-cooling) | Spindle power | 3KW | 0.8KW_3KW |
|
| Spindle speed | 0_24000r/min |
|
| 7 | Running mode |
| stepper | Servo |
| 8 | Operating voltage |
| AC220V/50HZ |
|
| 9 | Command code |
| G code |
|
| 10 | Operating system |
| NC studio 53C |
|
| 11 | Net weight |
| 1300KG |
|
If you have specific requirement for CNC woodworking engraving machine, customization is available.
