| Price: | US $ 6000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | FM1325 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: | 0.03/300mm |
| Repeatability: | 0.03mm |
| Table Structure: | T-Slot Table |
| Lathe Structure: | Welding Steel Structure |
| X,Y Structure: | Rack Pinion, Hiwin Linear Rails |
| Z Structure: | Ball Screw, Hiwin Square Rails |
| Max. Rapid: | 33000mm/Min |
| Max. Working Speed: | 25000mm/Min |
| Spindle Power: | Air Cooling Spindle |

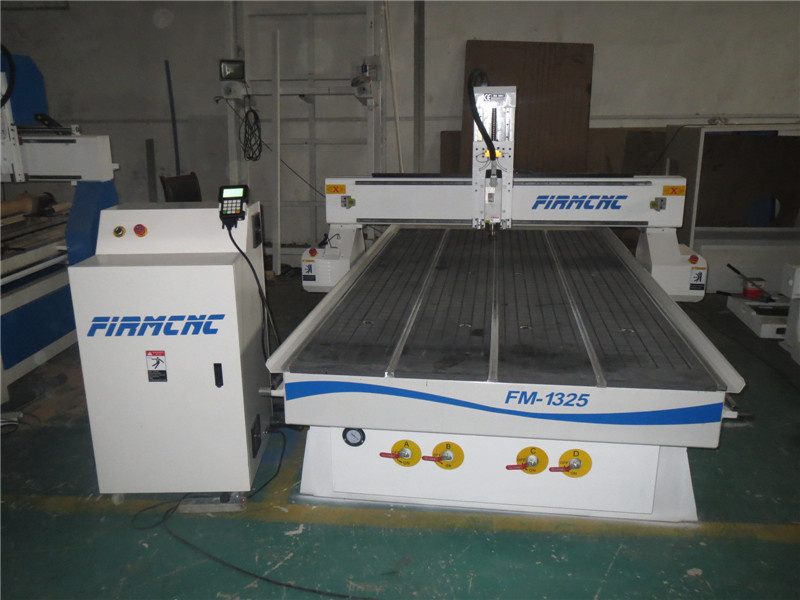

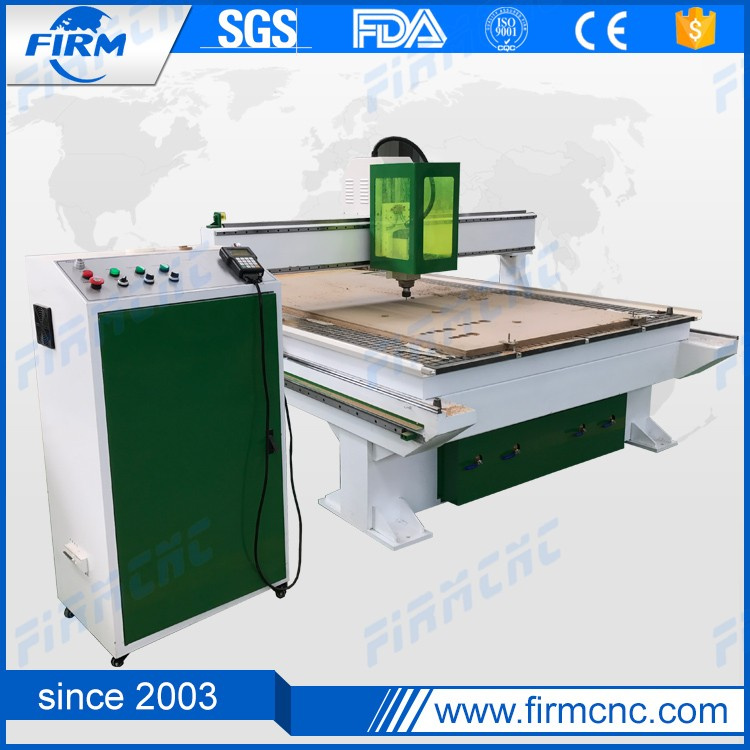

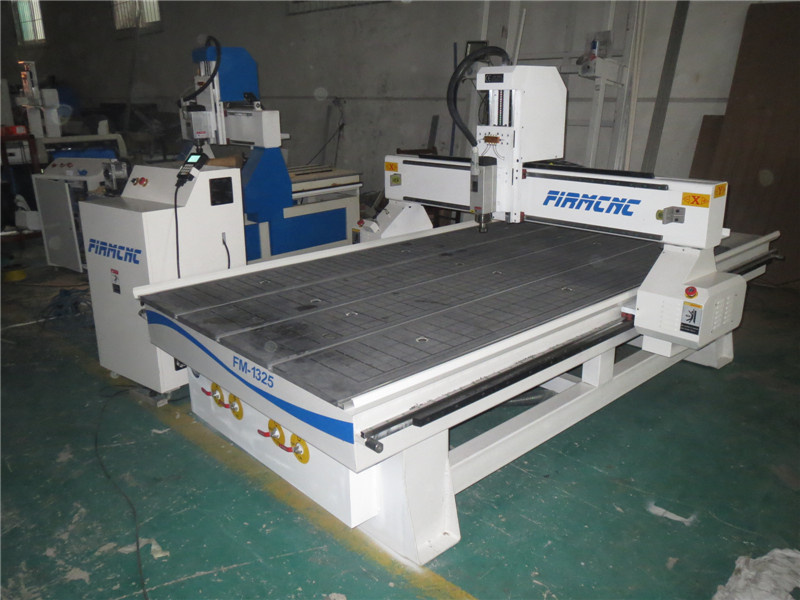

1325 CNC Wood Carving Engraving Milling Machine
Technical Parameters:
No. | Description | Parameter |
1 | X,Y,Z Working Area | 1300mmx2500mmx200mm |
2 | Table Size | 1450mm×2940mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.02/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.02mm |

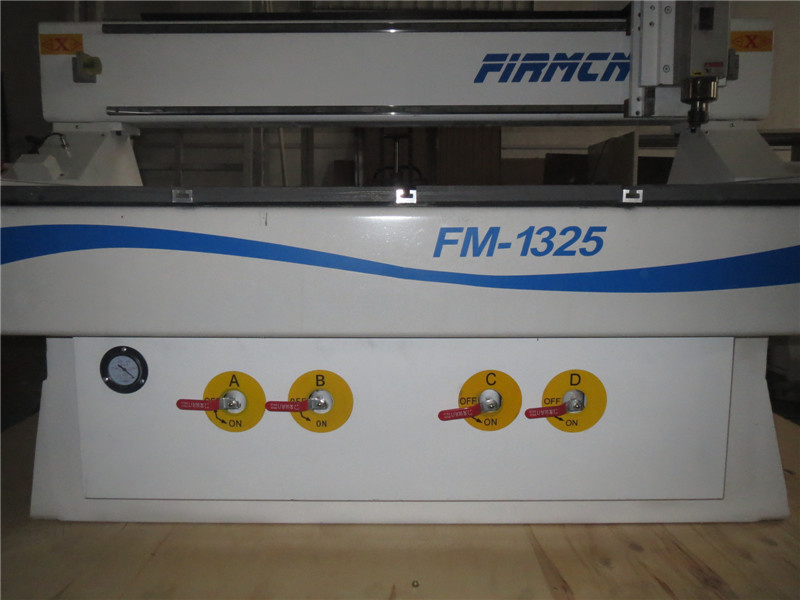

5 | Table Surface | Vacuum and T-slot table |
6 | Frame | Welded steel tube structure |
7 | Inverter: | Chinese Fuling Inverter/Taiwan Delta Inverter |
8 | Spindle | Hanqi water colling spindle/ Italy HSD air cooling spindle |
9 | Limit switch | Japan Omron limit switch |

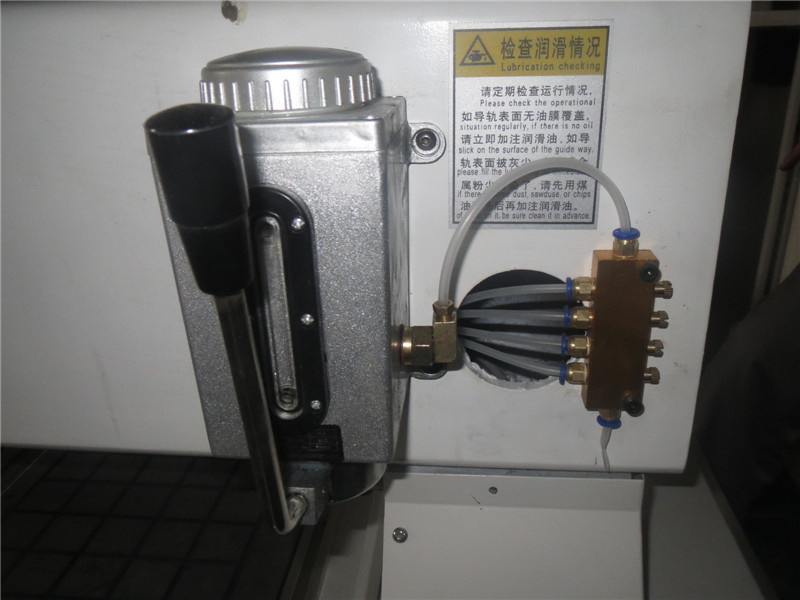

10 | Oil LubricationSystem | Manual |
11 | X, Y Structure | Rack and Pinion Drive, Hiwin Square Rail |
12 | Z Structure | Hiwin Square Rail and Ball Screw |
13 | Max. Power Consumption | 8~12KW |
14 | Max. Rapid Travel Rate | 33000mm/min |
15 | Max. Working Speed | 25000mm/min |
16 | Spindle Power | 3.5/4.5/5.5/6 KW |
17 | Spindle Speed | 0-18000RPM |

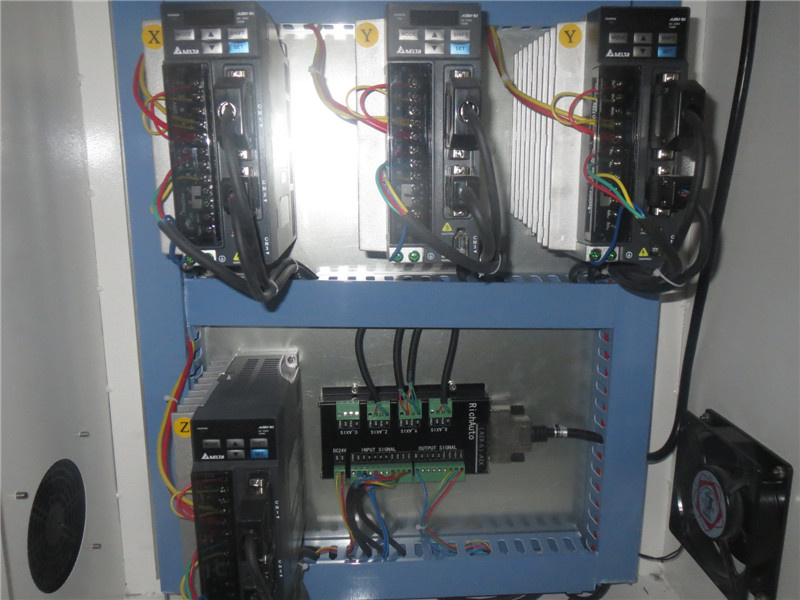

18 | Motors | 450B stepper/Yaskawa Servo |
19 | Working Voltage | 380V/220V |
20 | Command Language | G Code |
21 | Operating System | DSP System/Nc-studio/Syntec Software |
22 | Computer Interface | USB |
23 | Flash Memory | 128M(U Disk) |
24 | Collet | ER16/ER20/ER25 |
25 | X,Y Resolution | <0.03mm |
26 | Software Compatibility | Artcam Software (Option: Type3 Software) |
27 | Running Environment Temperature | 0 - 45 Centigrade |
28 | Relative Humidity | 30% - 75% |
29 | Packing Size | 3150mmX2100mmX1900mm |
30 | N.W. | 1500KG |
31 | G.W. | 1800KG |
32 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
Syntec Control System | ||
Dust Collector | ||
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
850W Yaskawa/750W Panasonic Servo Motor |
Application Industry and Materials:
Stone Industry:Natural marble,granite,artificial stone,tombstone.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
The advertising Industry:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Artwork Industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Exhibition Industry: Showcases, etc.
Our Company:
Jinan Firm CNC Equipment Co ., Ltd is located in Jinan, Shandong Province ,which specializes in manufacturing CNC and laser machines.
Our main products are CNC Router and Laser Machine. 5-Axis Machine Center, 4-Axis Center, 3-Axis ATC CNC Router , General 3-Axis CNC Router, CNC Plasma Cutting Machine. We have two factories for product. The application covers Woodworking,, Advertising , Marble, Metal, Nonmetal, MDF, Plastic, etc. Our products are widely sold in many European, American countries, Africa, Asia, ect.
We are still trying our best to product innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please do not hesitates to contact us for future cooperation. We hope to get mutual benefits with you in the near future.
Packing & shipment :
Save space as much as possible for container loading.
Our service:
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!
FAQ:
1.How long about the machine's guarantee?
1 year
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
