| Price: | US $ 7999-29999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE1325 |
|---|---|
| Power(W): | 9kw |
| Warranty: | 12 Months |
| Working Voltage: | 220V, 1 Phase, 50/60Hz (Option: AC380/220V/50/60Hz |
| Dimension(L*W*H): | 3700*2140*1950mm |
| Motor And Driver: | Japan Yaskawa Motor and Drive |
| Frame: | Big Steel Tube Welded Structure |
| Working Area: | 1300*2500mm |
| Working Speed: | 25000mm/Min |
| Max. Rapid Travel Rate: | 33000mm/Min |
| Software Compatibility: | Type3/Ucancamev9 Software, (Option: Artcam Softwar |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |

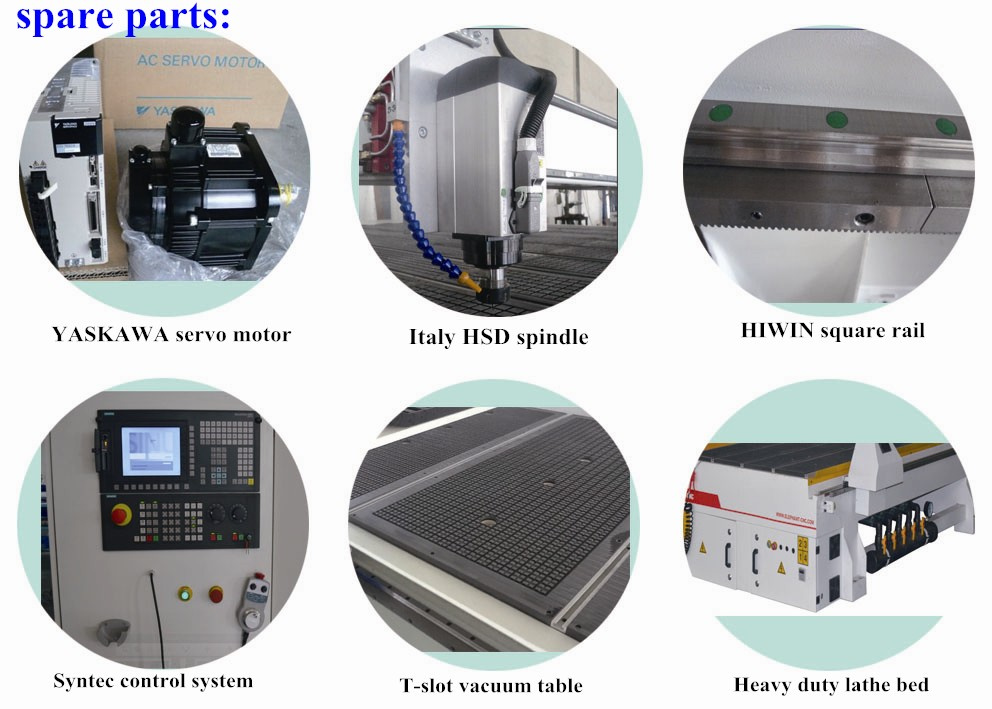

Feature of wood cnc router
1).6kw HSD air cooling spindle from Italy
2).7.5kw DELTA inverter from Taiwan
3).Original Mach3 control system
4).Japan Panasonic servo
5).vacuum pump
6).380V, 3ph,50Hz

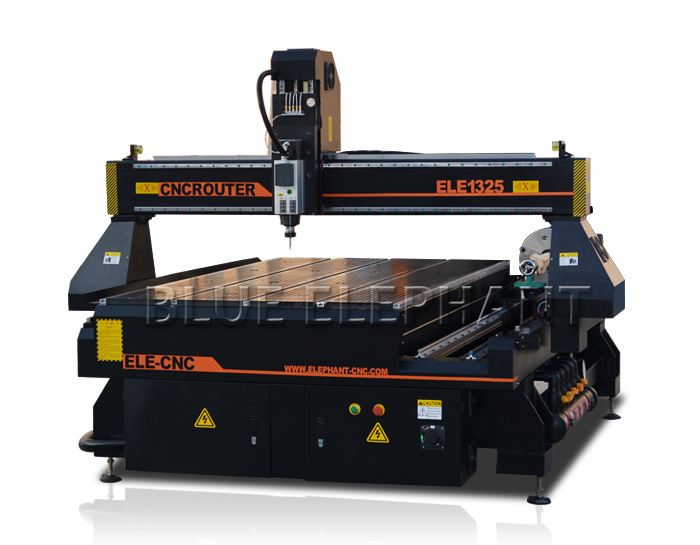

Parameters of 4 axis 1325 wood cnc:
Description | Parameter |
model | ELE1325-R |
Working area(X*Y*Z) | 1300*2500*300mm |
Max rapid moving speed | 35000mm/min |
Max carving speed | 25000mm/min |
Cutting accuracy | ±0.01/300mm |
Repositioning Accuracy | ±0.01mm |
Table Surface | Vacuum&T-slot Table |
Frame | Welded Steel Square Tube Structure |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Spindle Power | 6 kw HSD air cooling spindle |
Spindle Speed | 18000 rpm |
Inveter | Imported DELTA |
Drive Motors | 750w YASKAWA servo system |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | Mach3 4axis control System |
Collet | ER32 |
Software Compatibility | Type3/UcancameV9 Software |
PS:All the working area and specifications can be customized according to your requests.
Product Details:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door,
screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, head
-boards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and
cutting,crystal word making, blaster molding, and other advertising materials deriva
-tives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as
artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-meta
-llic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems,
we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the laser machine
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

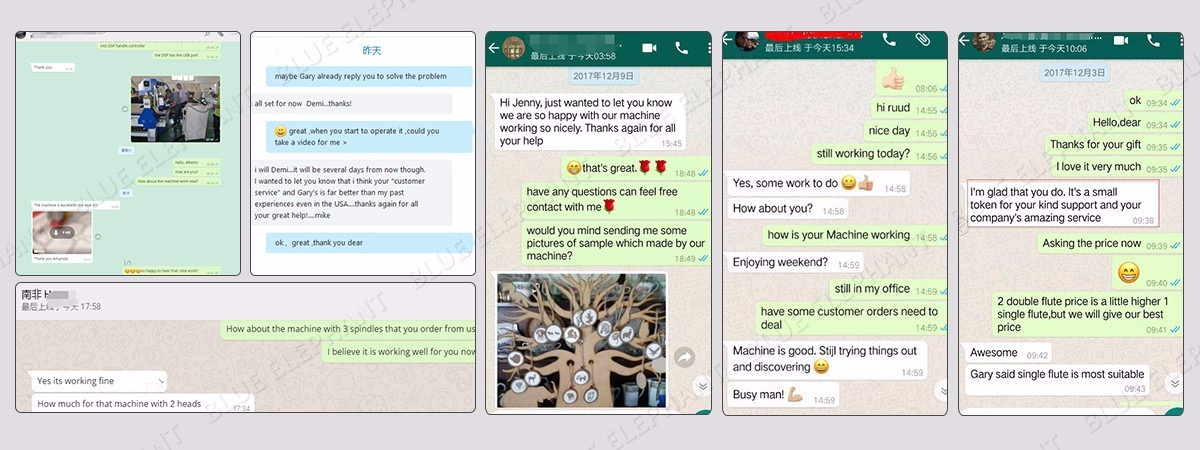

Customers Feedback:
