| Price: | US $ 5999-19999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1325 |
|---|---|
| Voltage: | AC 380V/50/60Hz, 3pH or AC 220V/50/60Hz |
| Dimension(L*W*H): | 3200X2140X1850mm |
| Warranty: | 12 Months for Whole Machine |
| Effective Working Area: | 1300*2500*300mm |
| Spindle: | 4.5kw Italy Hsd Spindle (3 Sets) |
| Control System: | Syntec 6MB Control System |
| Drive Motor: | 850W Japan Yaskawa Servo Motor |
| Inverter: | 5.5kw Taiwan Delta Inverter |
| Working Table: | T-Slot & Vacuum Working Table |
| Frame: | Welded Structure |
| Spindle Layout: | Spindle Over |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |
| Spindle Number: | Three Spindles |

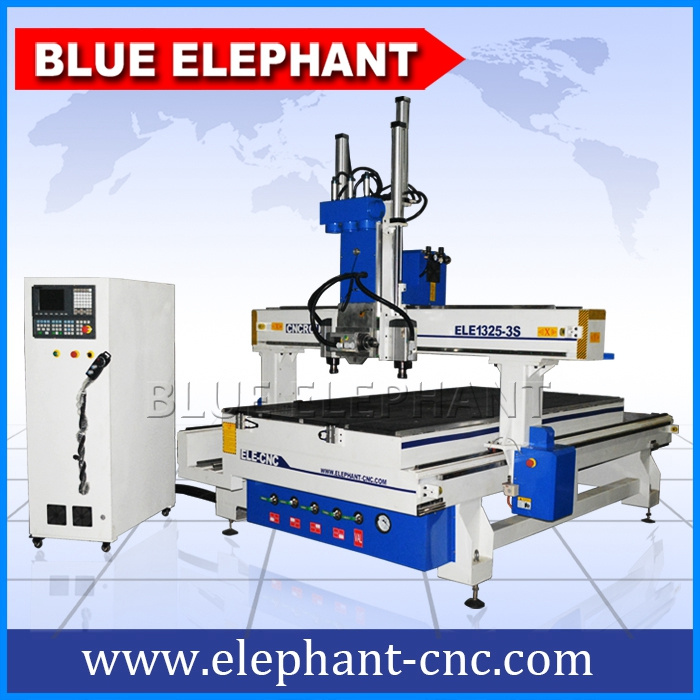

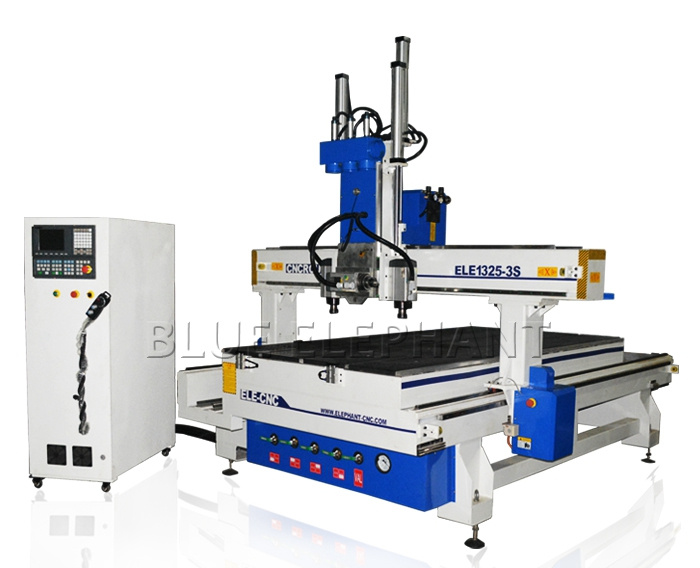

1325 4 axis multi spindle wood cnc , cnc 1325 atc , 5d cnc machine for kfc door window cabinet stair chair
(more sizes for choice:1500*3000mm, 1800*3600mm, 2000*3000mm, 2000*4000mm. We also have ATC, multi-heads, 4 axis, 5 axis and mini desktop type.)
Brief Introduction:
Features:
1.Working area:1300*2500*300mm,high Z axis travel
2.Control system:Taiwan SYNTEC 6MB control system
3.Spindle:Three 4.5kw HSD spindle work one by one,The middle spindle can rotate 90°, used for making lock hole and hinges.
4.Inverter:5.5kw Taiwan Delta inverter
5.Motor and driver:850w Japan YASKAWA servo driver
6.Transmission:X,Y axis #20 HINWIN square linear guide,Helical rack gear.Z axis #20 HINWIN linear guide,Taiwan TBI ball screw.
7.Working surface:T-slot & vacuum working table
8.Optional parts:5.5kw Swirl vacuum pump,1.5kw New type double bag dust collector.200*200mm rotary device for cylinder object.
Parameters:
Description | Parameter |
X,Y,Z Working Area | 1300x2500x3000mm |
Table Surface | T-slot & vacumm working Table |
Frame | Welded Structure |
X, Y Structure | #20 Tiwan HINWIN linear guide rail,helical rack gear |
Z Structure | #20 Tiwan HINWIN linear guide rail,Taiwan TBI Ball Screw |
Max. Power Consumption | (Without Spindle)6Kw |
Spindle Power | 4.5 KW Italy HSD air cooling spindle for all heads |
Spindle Speed | 0-18000RPM |
Drive Motors | 850w Japan YASKAWA servo motor and driver |
Working Voltage | AC220V/50/60Hz,3PH (Option: 380V) |
Command Language | G Code |
Operating System | SYNTEC 6MB control system |
Traveling speed | 33m/min |
Collet | ER32 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software |
Running Environment Temperature | 0 - 45 Centigrade |

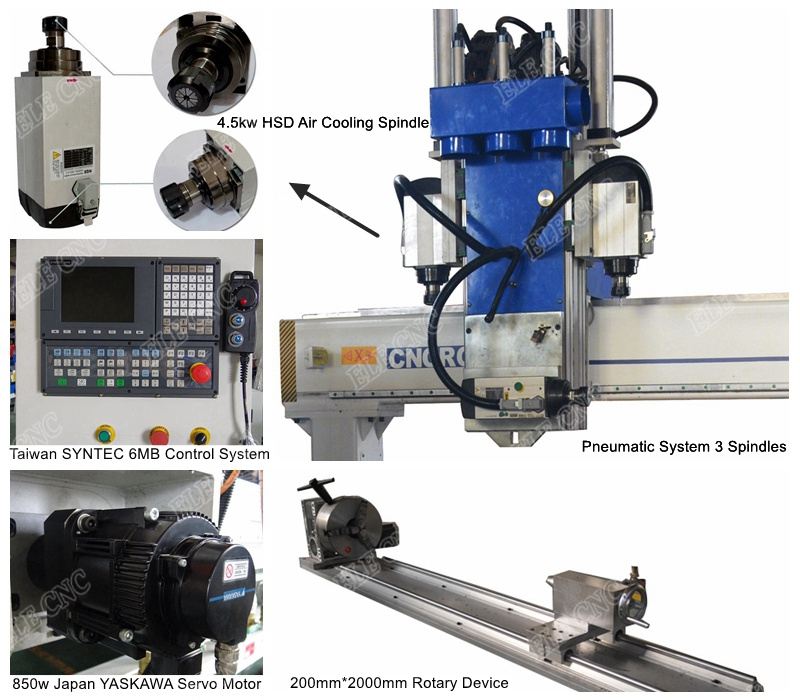

Main parts:
Application:
Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch
process any wooden products, antique furniture, crafts gifts, relief processing.
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3.The machine is specially designed for woodworking industrial, with multiple spindles auto-changing.
Samples show:
Packaging & Shipping
Our Services
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
