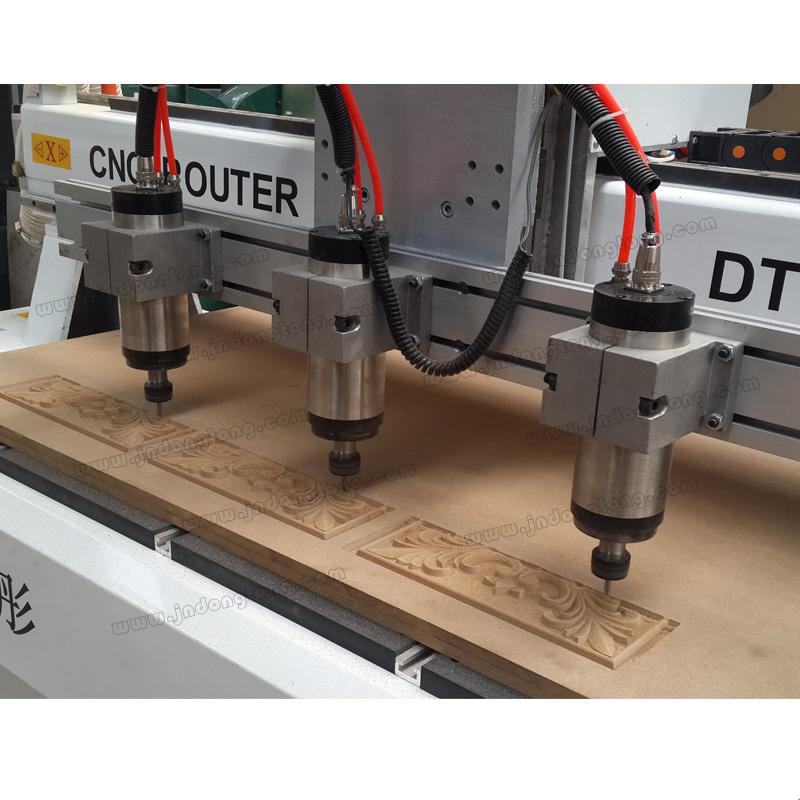

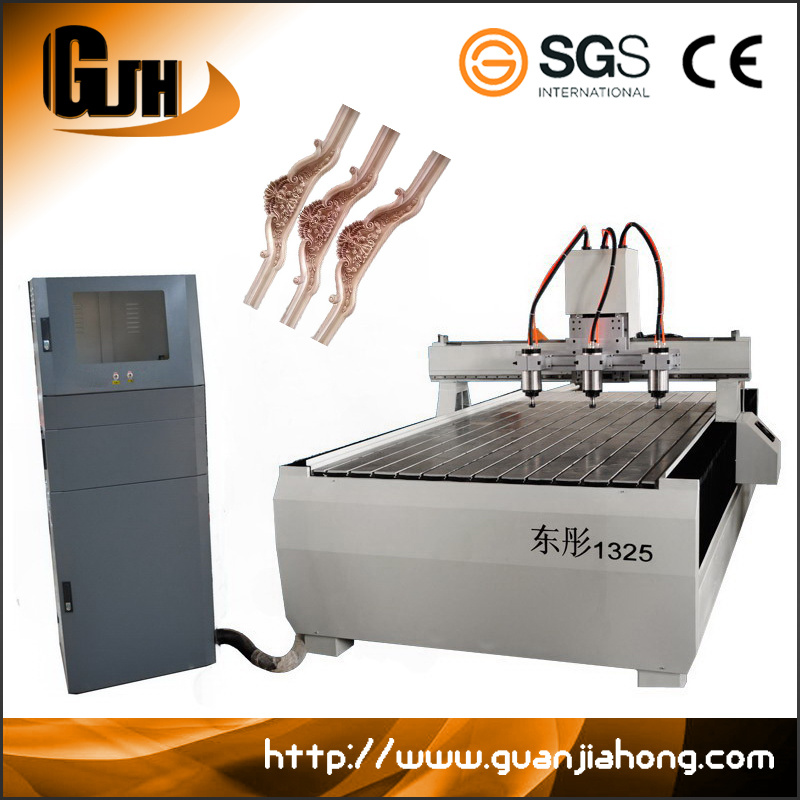

1325-1-3, Wood, Aluminum, Acrylic, CNC Router, Engraving and Cutting Machine
| Price: |
US $ 4000-7000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Specifications
| Prod Model: |
DT1325-1-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Drive Mode: |
Stepper |
| Guild Rail: |
PMI /Hiwin Square Rail |
| Ball Screw: |
PMI |
| Control System: |
Nc Studio, Shanghai |
| Type: |
Engraving Router |
| Spindle Layout: |
Spindle Over |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Customized: |
Customized |
| Color: |
Customized |
| Spindle Number: |
3 |
Product Description
CNC woodworking cnc router engraving machine from professional cnc router manufacturer.Application:1. Woodworking industry: three-dimensional wave board processing, cabinet door,
craft wooden door, folding screen, process window milling shape carved
furniture products.
2. Advertising industry: advertising signs, PVC board, chevron board, double color
boards, logo making, acrylic cutting, plastic molding, characters, crystal cutting,
plate making, cutting PVC board, acrylic, LED/neon trough, the hole shape
literally cut, blister light boxes mould
3. Arts and crafts industry: in the wood, bamboo, marble, organic board, double
color boards, such as material for a variety of exquisite design and text on the
sculpture. | NO | Performance index | Performance index | Parameter | Optional |
| 1 | Working area | X | 1300mm | |
| | | Y | 2500mm | |
| | | Z | 200mm | |
| 2 | Table size | | 1300mm*2500mm | 2200mm*3000mm |
| 3 | Accuracy | Working precision | 0.05mm | |
| | | Repositioning precision | 0.05mm | |
| 4 | Drive mode | X axis | Helical rack and pinion | |
| | | Y axis | Helical rack and pinion | |
| | | Z axis | Ball screws | |
| 5 | Speed | Max motion speed | 30000mm/min | |
| | | Max engraving speed | 8000mm/min | |
| 6 | Spindl | Spindle power | 3KW | 1.5KW_5.5KW |
| | | Spindle speed | 0_24000r/min | |
| 7 | Motor | | stepper | |
| 8 | Operating voltage | | AC220V/50HZ | |
| 9 | Command code | | G(G code) | |
| 10 | Operating system | | Genuine NC STUDIO | |
| 11 | Net weight | | 1520KG | |
Technical support:1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.After-sale & guarantee service:1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/
tel and lifetime technical support If you have specific requirement for wood CNC router engraving machine, customization is available.
Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
