| Price: | US $ 3800-7000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1325 |
|---|---|
| Voltage: | 380V, 3 Phase, 50/60Hz(220V for Optional) |
| Dimension(L*W*H): | 3700*2140*1950mm |
| Spindle: | 4.5kw Italy Hsd Air Cooling Spindle |
| Control System: | DSP A18 |
| Drive Motor: | Stepper |
| Inverter: | 5.5kw Taiwan Delta Inverter |
| Frame: | Welded Structure |
| Transmission: | Taiwan Tbi Ball Screw, #20 Hinwin Linear Guide |
| Working Table: | T-Slot & Vacuum Working Table |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |

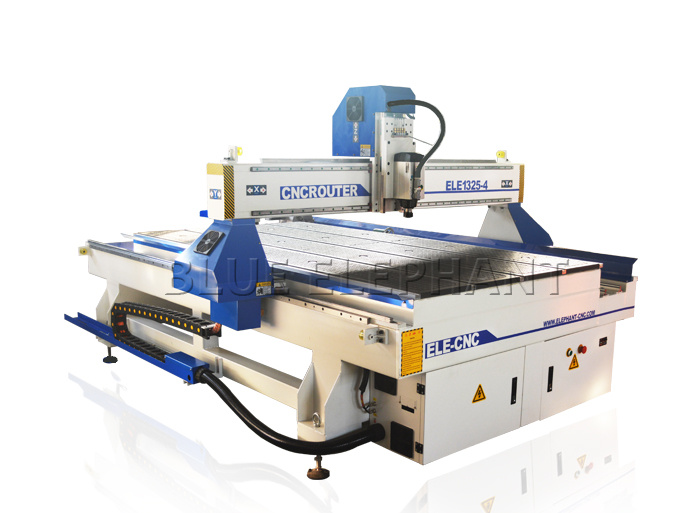

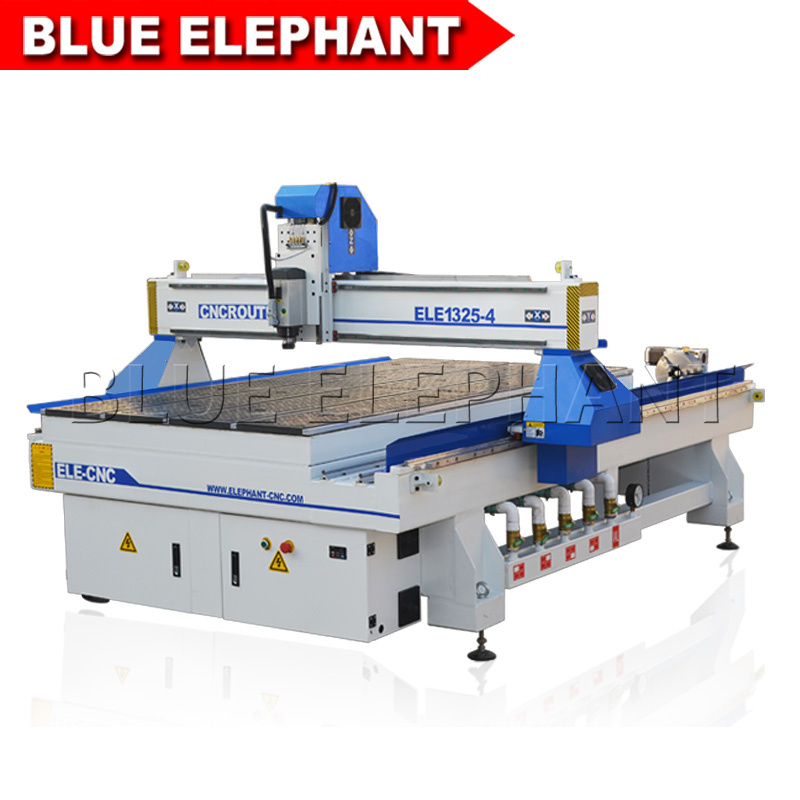

1300*2500mm types of wood carving , cnc router machine 4 axis , cnc router wood carving machine for sale
Advantages:
1. Heavy duty thicker and bigger welded steel tube frame--more stronger
2. 4.5kw Italy HSD air cooling spindle--best brand in the world, best quality for cutting and carving. Having a fan in the spindle, with good cooling effect.
3. One 200mm rotary on one side of machine, suitable for making cylinder.
4. DSP A18 control system, can support 4 axis cnc router machine, with one independent handle, very convenient for operation.
5. Vacuum & T-slot working table, match one vacuum pump, can fix the material more stable.
Features:
Parameters:
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
Table Surface | Vacuum and T-slot working table,4 zones |
Frame | New style heavy duty Welded Structure |
X, Y Structure | Rack and Pinion Drive, #20 Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Spindle Power | 4.5kw Italy HSD air cooling spindle |
Spindle Speed | 0-18000RPM |
Inverter | 5.5kw Delta inverter |
Drive Motors | Stepper |
Working Voltage | 380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH) |
Command Language | G Code |
Operating System | DSP A18 |
Computer Interface | USB |
Rotary device | 200mm diameter*2200mm length |
Collet | ER32 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
PS:All the working area and specifications can be customized according to your requests.

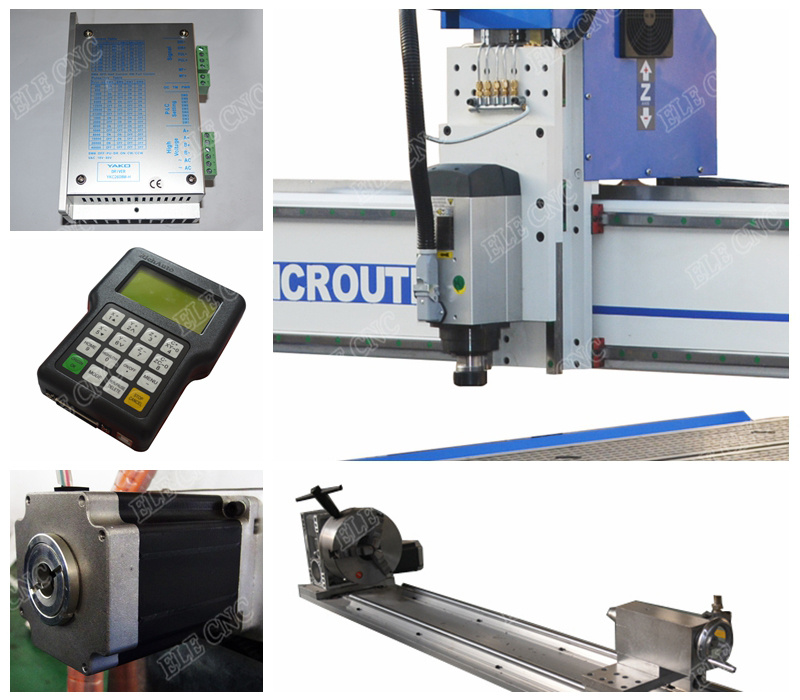

Main parts:
Applicantions:
Application: for wood, MDF, plywood, acrylic, soft metal etc.Mainly for making furniture, cabinet.
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
Samples show:
Packaging & Shipping
1.Outside Package: Standard export wooden case .
2.Inner package: strech film .
For shipping, you can choose the sea shipping,air shipping or the transmission of expressage: DHL/TNT/Fedex.
For terms of payment, you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
Our Services

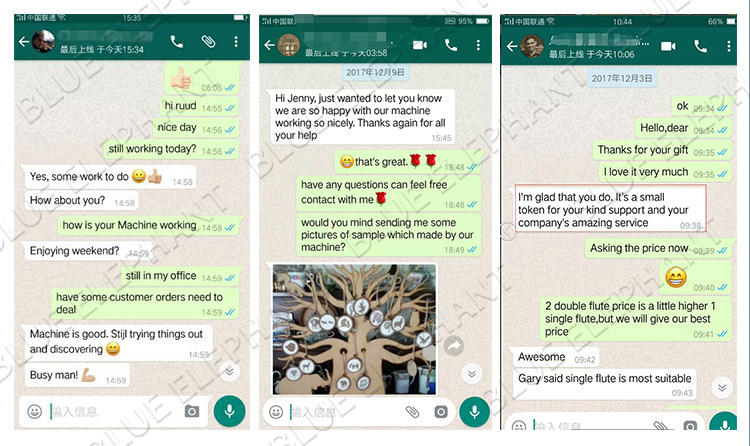

Feedback:
