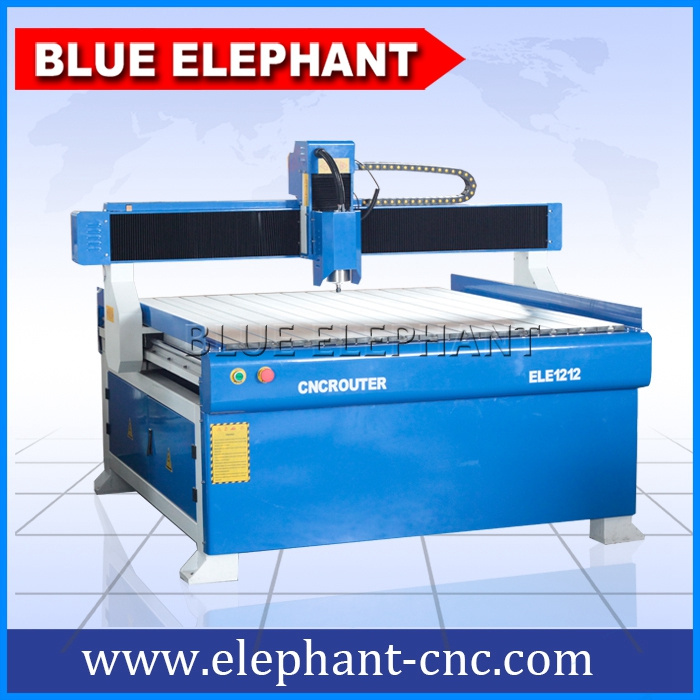

1212 Automatic 3D Wood Carving CNC Router
| Price: |
US $ 1099-2999set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE 1212 |
| Voltage: |
AC 220V, 1pH, 50/60Hz(Optional :110V) |
| Dimension(L*W*H): |
1200*1200*160mm |
| Spindle Power: |
1.5kw Water Cooling Spindle |
| Spindle Speed: |
0-24000rpm |
| Motor And Driver: |
Stepper |
| Inverter: |
1.5kw Fuling Inverter |
| Control System: |
Mach 3 |
| Option: |
80mm Rotary Device |
| Ball Screw: |
Taiwan Tbi Ball Screw |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description
1212 Automatic 3D Wood Carving CNC Router

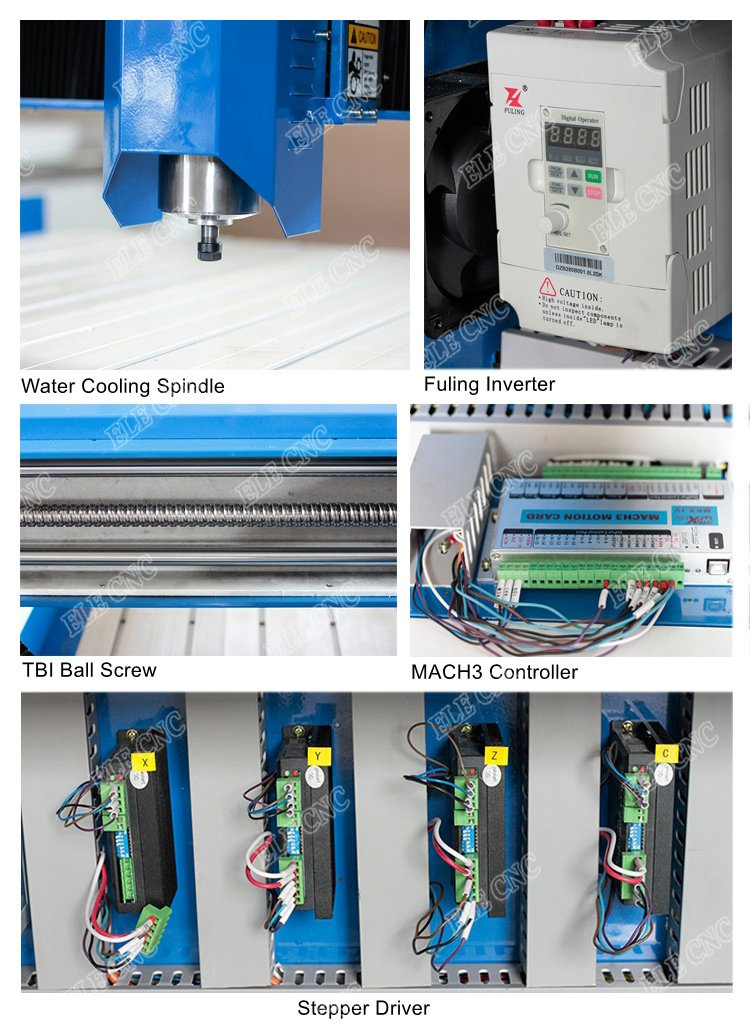

Features 1, 1.5kw Changsheng water cooling spindle,China top brand Cahngsheng
2, Mach 3 controller with USB interface
3,with Dust-proof hood to protect spindle
4, 1.5kw Fuling inverter,China best brand,well know for stable performance
5, Stepper motor and driver
6,Round orbit,Original Taiwan TBI ball screw transmission for x,y,z axis
7,Tool sensor calibration to help find working home position
8,T-slot working table
9.Option:Rotary device with max. 120mm diameter and 1200mm length
Parameters | Working area | 1200*1200*600mm |
| Spindle | 1.5KW water cooling spindle |
| Spindle rotating speed | 24000RPM |
| Motor | Stepper |
| Inverter | 1.5 kw FULING brand |
| Control system | Mach 3 |
| X,Y,Z | Ball screw imported from Taiwan |
| Table surface | T-slot working table |
| Frame structure | Cast aluminum structure |
| Positioning accuracy | ±0.02/300mm |
| Repositioning accuracy | ±0.01mm |
| Max. engraving speed | 6,000mm/min |
| Max. motion speed | 8,000mm/min |
| Tools diameter | ER20 |
| Dictate format | G code,U00,mmg,plt/HPGL/NC |
| Compatible software | Type3,Ucancam,ArtCAM |
| Support software | Windows98/2000/XP |
| Working supply | AC220V, 1 phase,50/60HZ(110V for option) |
| Guarantee | One year |
| option | vacuum table, dust collector, rotary device, mist sprayer, flume |
| Application | Furniture, wood craft, decorative products, signs, building models, metal, embossed pictures. |
| Technical support | 24 Hours technical support by email or calling
User friendly English manual and Video CD for machine operation and maintain |
Details
Applications1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors,interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving

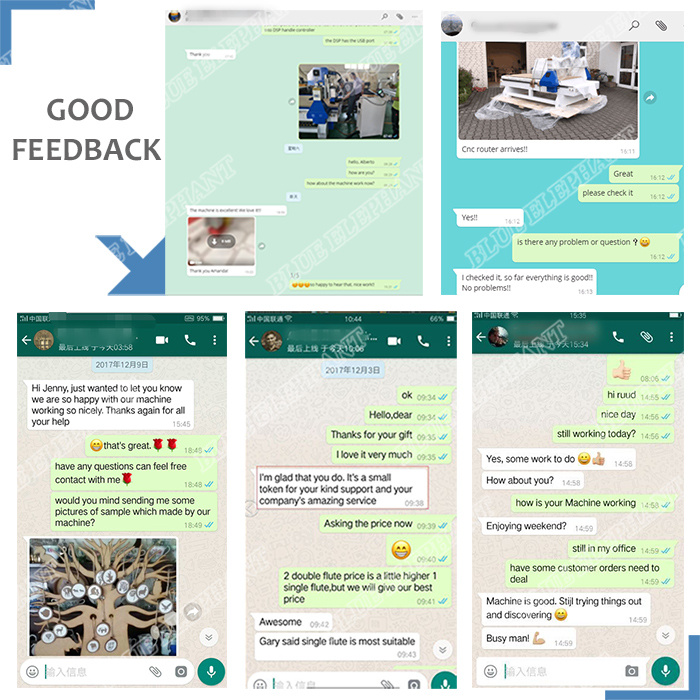

5.Cylindrical objectFeedback
Packaging & DeliveryPackaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.Our Service1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.Company Information
