Product Specifications
| Prod Model: |
ELE1212 |
| Power(W): |
13kw |
| Weight: |
1500kg |
| Woodworking: |
1212 Atc 4 Axis CNC Router |
| Spindle Power: |
9kw Italy Hsd Air Cooling Spindle |
| Spindle Speed: |
0-24000rpm |
| Drive Motors: |
1kw Germany Siemens 828d Servo Motors and Drivers |
| Operating System: |
Germany Siemens 828d Control System |
| Linear Rail: |
Double 25# Hiwin Linear Guide for Y Axis |
| Tool Changer Magazine: |
8 Positions |
| Inverter: |
11kw Delta Inverter |
Product Description

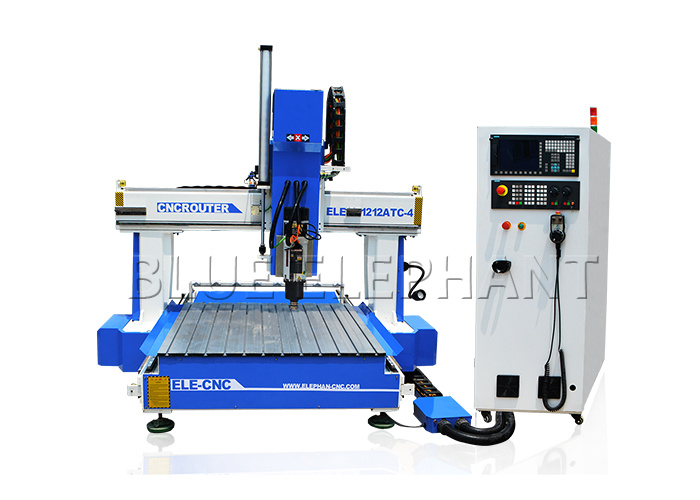

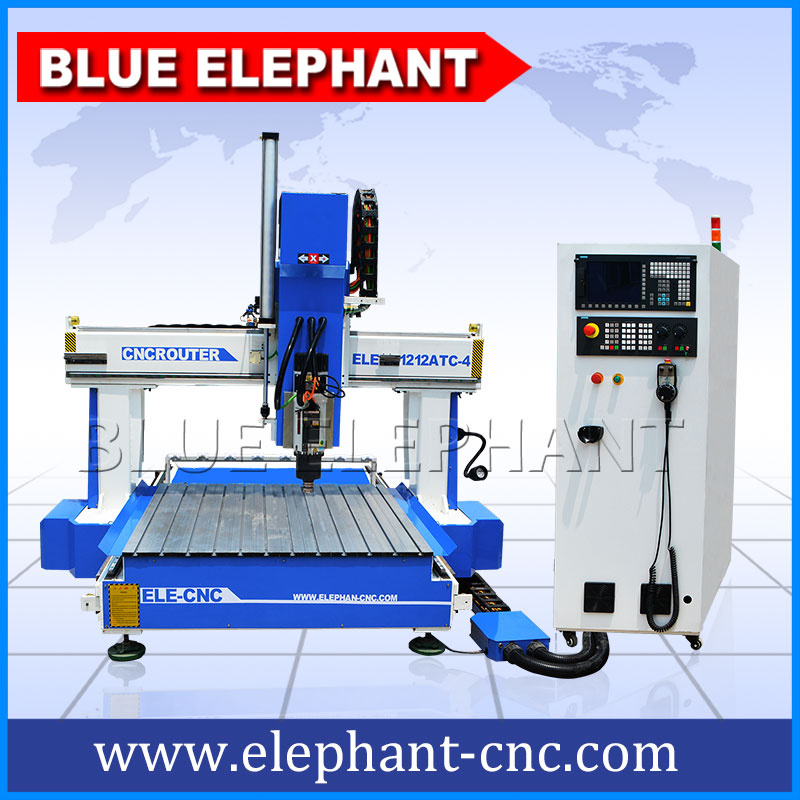

1212 Acrylic Automatic 3d Wood Carving Cnc Router Machine with High Z Axis for Sale
Introduction of 4 axis cnc router machine:
---Siemens 828D control system, powerful to support 4 axis
---Spindle can swing for 180 degree
---Smart size, can customize as your need
The cnc router engraver machine is suitble for wooden Industry, furniture industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router marble engraver machine is designed for large area engraving work such as wooden Industrial, mdf industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
In addition, it can be upgraded to be installed a rotational axis.
Feature of 4 axis cnc router machine:
- Effective working area: 1200*1200*500mm
- Heavy duty thicker structure as Kang's design
- Linear type automatic tool changer with 8 tool storage
- German Siemens 828D control system
- Siemens 1000w servo motor and 1000w servo driver
- Helical rack & Gear
- Taiwan TBI ball screw
- Taiwan HIWIN square linear guide way 25mm for X,Y,Z axis
- Double pieces for each Y axis, total 4 pieces for Y axis
- Automatic Tool sensor calibration
- Automatic oil lubrication system
- T-slot working table
- Japan Omron limit switch
- France Schneider safety switch
- Shanghai Cadiff cable
- Working voltage:380v 3phase 50HZ

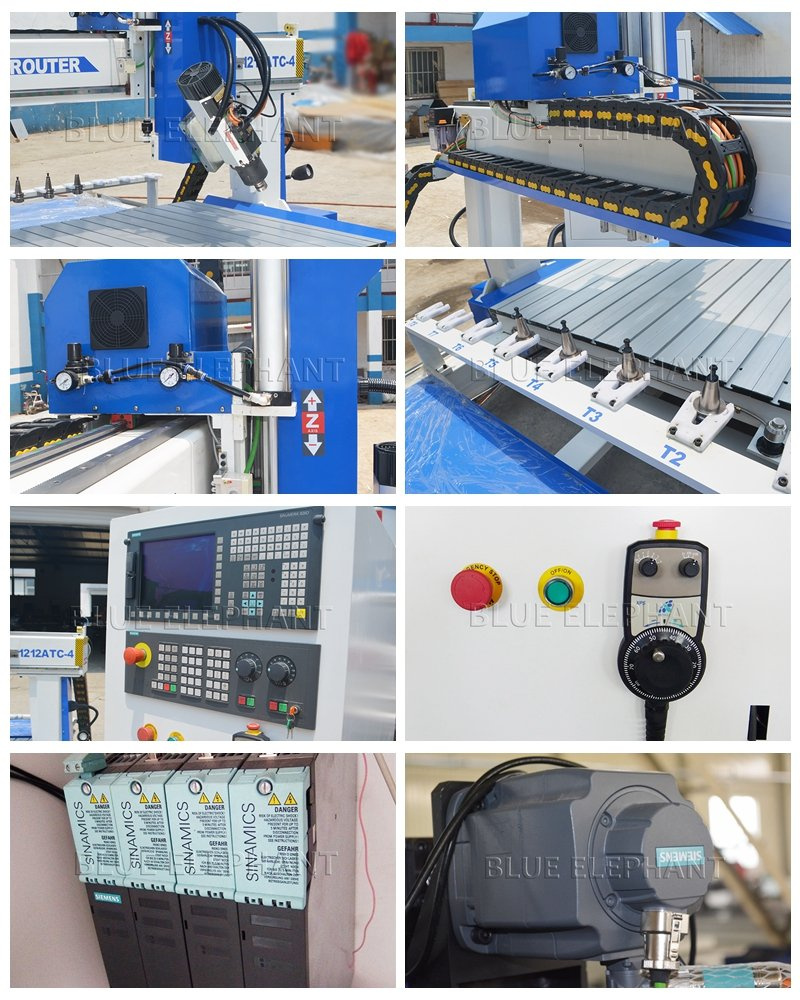

Details about our 4 axis cnc router machine:
Our Advantage of 4 axis cnc router machine:
Machine parts | Advantages |
1200*1200*500mm working area | (can be customized.) |
welded steel | More stable and stronger, even you use for many years, it won't change shape. |
9kw Italy HSD air cooling spindle | Worldwide brand, high quality, global warranty |
11kw Taiwan Delta inverter | The best brand in Asia |
Germany SIEMENS 828D control system | A large number of high-grade CNC functions and rich programming methods, making it flexible workpiece machining occasions can be freely used around the world. |
Taiwan HIWIN or PMI or ABBA 25mm square linear guide rail for X,Y,Z axis | Very famous brand, can improve high precision, smooth transmission, fast speed, low noise, and it has 10 times longer life than common rail way. |
Helical rack and gear 1.25M transmission for X,Y axis | Bigger loading capacity, stronger biting force, makes sure the machine is stable, with long lifetime. |
Taiwan TBI ball screw 2510 transmission for Z axis | Famous brand, high quality, can make sure very accurate precision. |
T-slot working table | T-slot table can help fix small materials by clamps. |
Germany SIEMENS 828D servo motor and driver | Famous brand. 4 sets in total, double motors for Y axis, very powerful, also very popular among customers. |
Automatic lubrication system | Help lubricate the rail way, maintaining machine. |
Automatic tool sensor calibration | Help find working home position. |
Japan OMRON limit switch | 3 pieces for X, Y, Z axis, helping each axis go back to working home position. |
rubber bumpers | 2 pieces for X axis and 4 pieces for Y axis, helping stop axis in case the machine axis is out of control. |
Highly flexible towline, fire-resitant | Shanghai CARDIFF brand, China best brand. Long life, could be bent |
double-sheathed cable | 300000 times. Also can prevent the interference of static electricity. |
Artcam software | We will give you in the CD. |
Applications of wood router:
- WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
- Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
- Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks,and other non-metallic mold.
- Relief sculpture and 3D engraving
- Cylindrical object
After sale service:
- Within 7 days since your local customs clearance: if the cnc machine's any parts has any problems, we will change it free.
- Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
- Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
- We offer 24 hours technical support by call, email
- Our technician can give you remote guide online (Skype or WhatsApp) if you have any question
- We can record videos of operating the cnc router machine
- Free training course in our factory
- Machine will be adjusted before it is delivered , operation disk/CD was included.
Packing & Shipping:
Packaging: 1.Outside package: Standard marine export plywood cases
2.Inner package: Stretch film and plastic film for humidity
Shipping: Maritime transport, air transport, land transport and the logistics transport

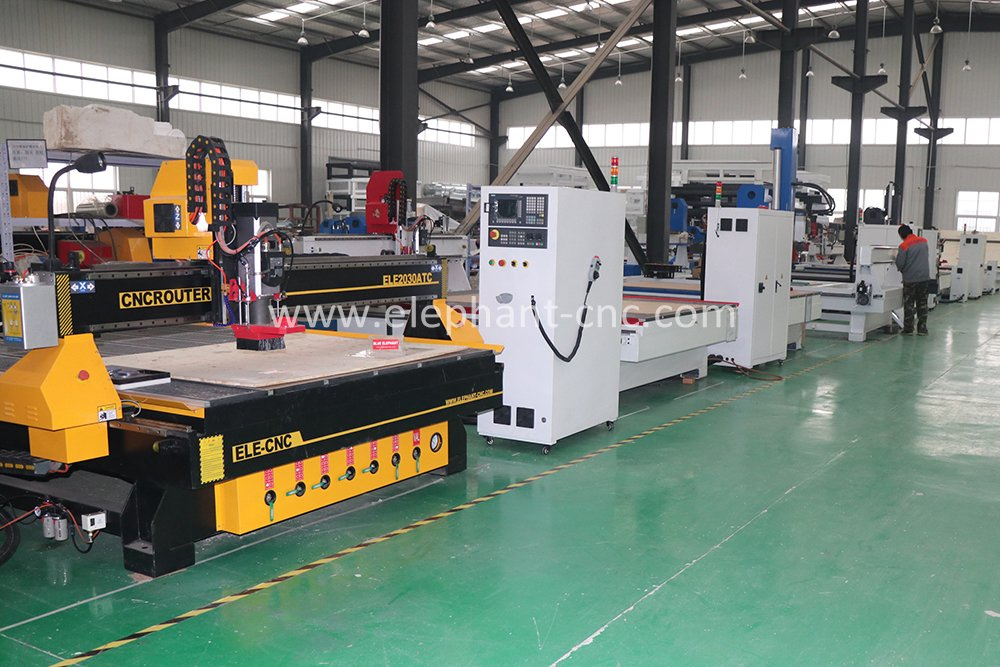

Welcome to our factory:
