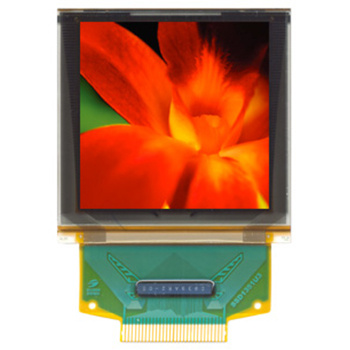

1.46-Inch Color OLED Module with 128X128 Resolution 37 Pins
| Price: |
US $ 9.4-9.5/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
XOLED12812801 |
| Drive Method: |
1/4duty,1/3bias |
| Polarizer Type: |
Transmissive / Negative /Glare |
| Operating Temp: |
-20--70 |
| Storage Temp: |
-30--80 |
| Voltage: |
Vdd:3.3V Vlcd:4.5V |
| Application: |
Mobile Phone |
| Aspect Ratio: |
4:3 |
| Feature: |
3D Display |
| Response Time: |
16ms |
| 3D: |
Not 3D |
| Interface Type: |
HDMI |
| Screen Size: |
1.46 |
| Optimum Resolution: |
128*128 |
| Type: |
OLED |
Product Description
Product Description
| No. | Item | Specification |
| 1 | Display type | PM OLED-Color |
| 2 | Display size | 1.46 inch(Diagonal) |
| 2 | Display mode | Passive Matrix |
| 3 | Display color | 262 K |
| 4 | Number of Pixels | 128x128 |
| 5 | Active area | 26.279(W) × 26.284(H) mm |
| 6 | Panel size | 33.5(W) × 33.5(H) × 1.42(D) mm |
| 7 | Pixel pitch | 0.0685(H) x 0.2055(V) mm |
| 8 | Pixel Size | 0.0435(H)x 0.1855(V) mm |
| 9 | Viewing angle | All |
| 10 | Brightness | 90 cd/m2 |
| 11 | Interface | 3/4-wire SPI |
| 12 | Controller IC | SSD1351 |
| 13 | Contrast Ratio | 2,000 |
| 14 | Operating temperature | -40ºC~+70ºC |
| 15 | Storage temperature | -40ºC~+85ºC |

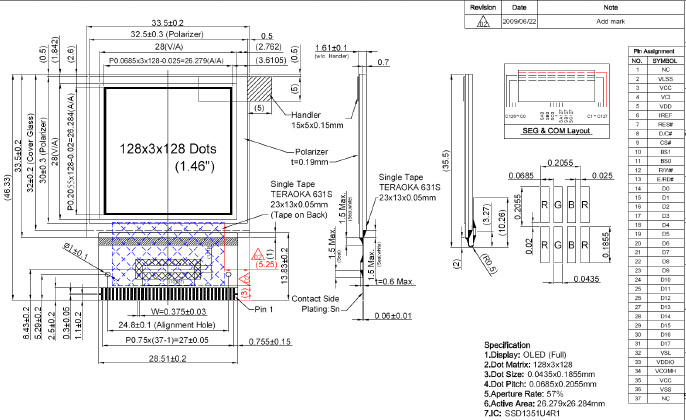

Drawing

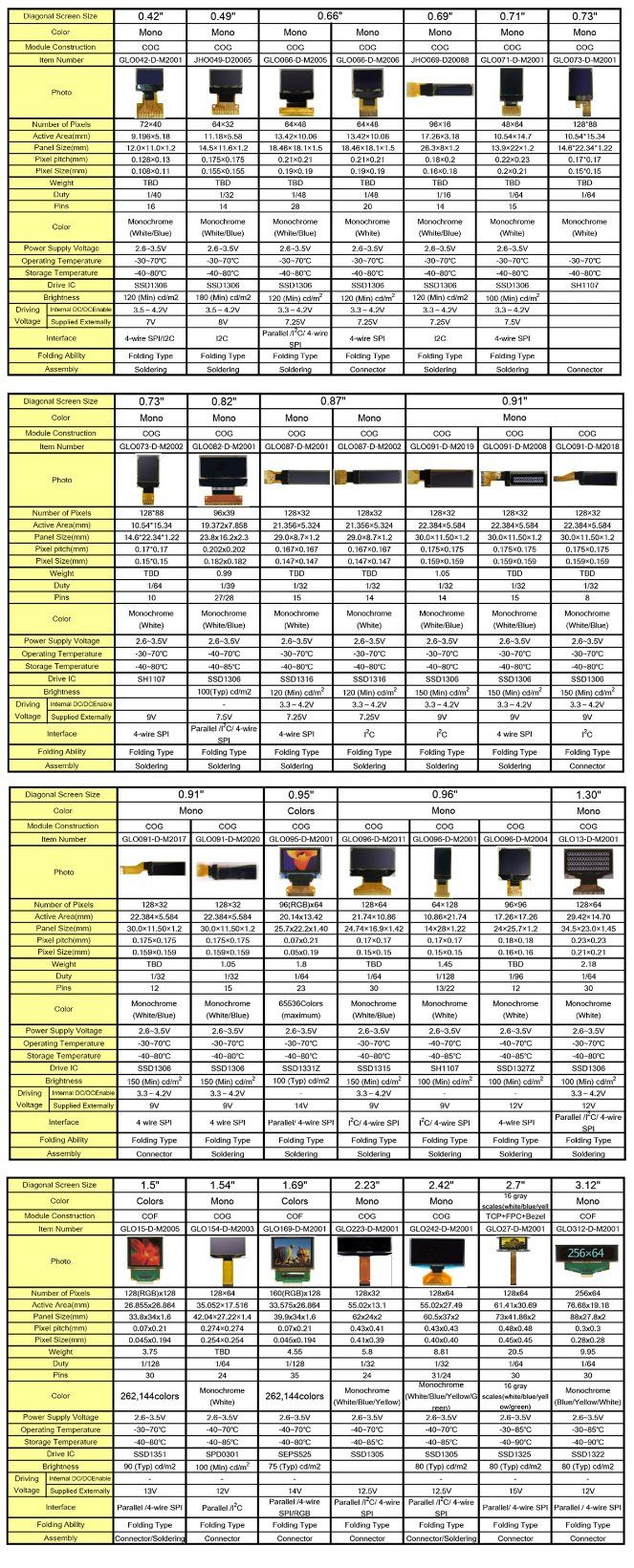

More products
Dongguan xu ding electronics technology Co., Ltd. (XUDING) professional sales LCD/LCM/TFT LCD display. Its products are widely used in electric power terminal, digital control, instrumentation, medical equipment, security, tax control equipment, industrial automation and other fields.XUDING with independent research and development capabilities, and more than 5 years experience of quality personnel complete facilities, reasonable workshop layout, advanced equipment, professional technical support, and for the supplier to our company in the LCD panel industry customers long-term support and trustOur production plant has stringent quality control to guarantee Absolute product quality. Our production equipment are state-of-the-art Japanese technology Including COB, TAB, COG, etc.Thank you for choosing Xu Ding electronic science and technology, long-term cooperation and common development, we will serve you wholeheartedly!
Dongguan xu ding electronics technology Co., Ltd. (XUDING) professional sales LCD/LCM/TFT LCD display. Its products are widely used in electric power terminal, digital control, instrumentation, medical equipment, security, tax control equipment, industrial automation and other fields.
XUDING with independent research and development capabilities, and more than 5 years experience of quality personnel complete facilities, reasonable workshop layout, advanced equipment, professional technical support, and for the supplier to our company in the LCD panel industry customers long-term support and trust

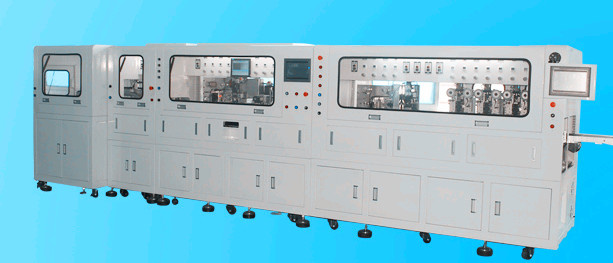

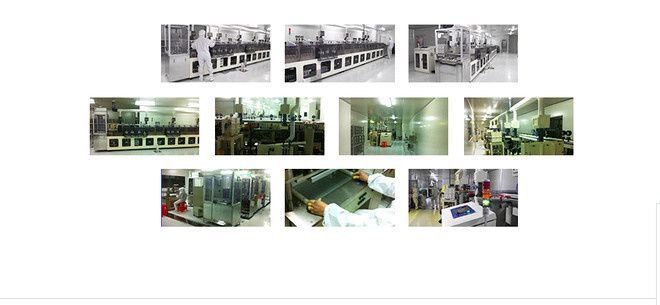

Our production plant has stringent quality control to guarantee Absolute product quality. Our production equipment are state-of-the-art Japanese technology Including COB, TAB, COG, etc.
