Product Specifications
| Prod Model: |
XOLED1286405 |
| Drive Method: |
1/4duty,1/3bias |
| Polarizer Type: |
Transmissive / Negative /Glare |
| Operating Temp: |
-20--70 |
| Storage Temp: |
-30--80 |
| Voltage: |
Vdd:3.3V Vlcd:4.5V |
| Screen Size: |
≤17" |
| Application: |
Mobile Phone |
| Aspect Ratio: |
4:3 |
| Feature: |
3D Display |
| Widescreen: |
Not Widescreen |
| Response Time: |
16ms |
| Type: |
OLED |

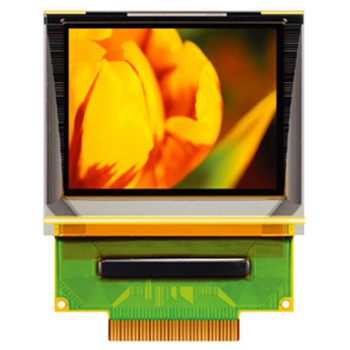

Product Description
Product Description
| No. | Item | Specification |
| 1 | Display type | PM OLED-Color |
| 2 | Display size | 1.45 inch(Diagonal) |
| 2 | Display mode | Passive Matrix |
| 3 | Display color | 262 K |
| 4 | Number of Pixels | 160x128 |
| 5 | Active area | 28.78(W) × 23.024(H) mm |
| 6 | Panel size | 35.8(W) × 30.8(H) × 1.7(D) mm |
| 7 | Pixel pitch | 0.06(H) x 0.18(V) mm |
| 8 | Pixel Size | 0.04(H)x 0.164(V) mm |
| 9 | Viewing angle | All |
| 10 | Brightness | 100 cd/m2 |
| 11 | Interface | CPU,4-wire SPI |
| 12 | Controller IC | SEPS525 |
| 13 | Contrast Ratio | >1,000 |
| 14 | Operating temperature | -30ºC~+70ºC |
| 15 | Storage temperature | -40ºC~+80ºC |

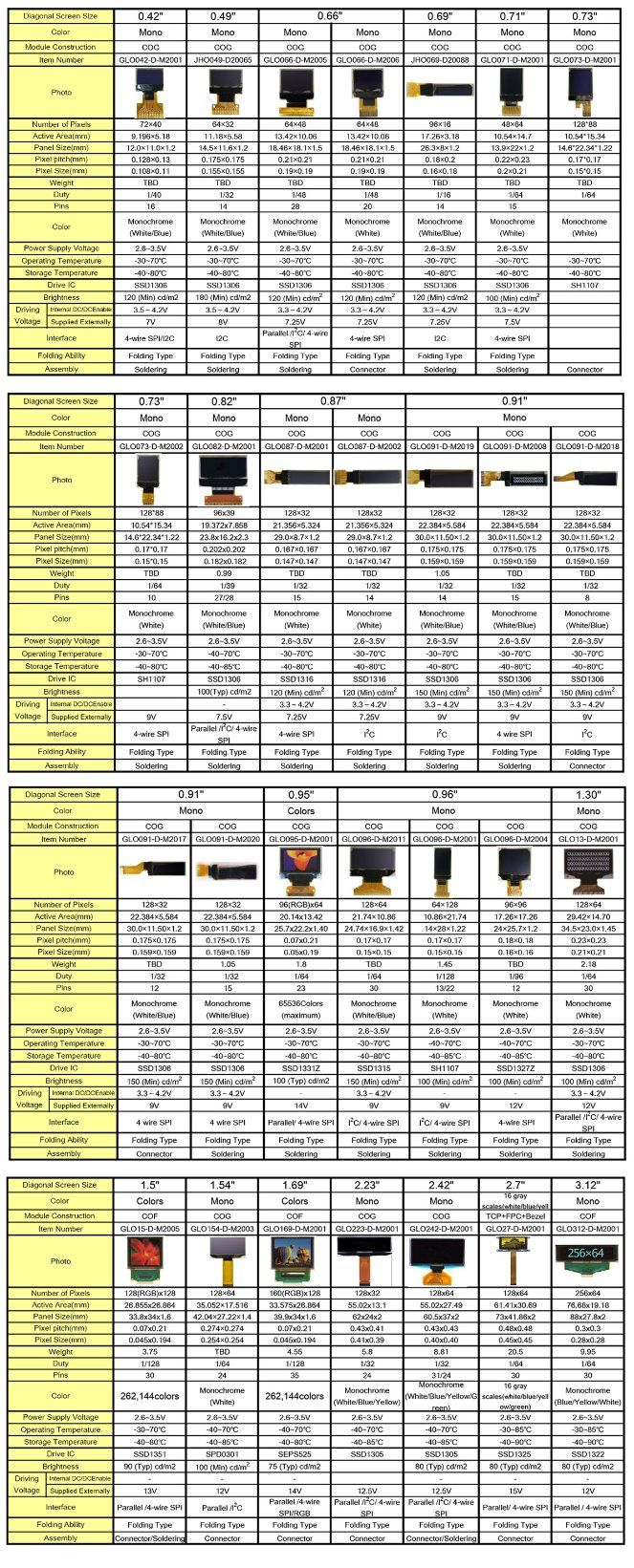

More products
Dongguan xu ding electronics technology Co., Ltd. (XUDING) professional sales LCD/LCM/TFT LCD display. Its products are widely used in electric power terminal, digital control, instrumentation, medical equipment, security, tax control equipment, industrial automation and other fields.
XUDING with independent research and development capabilities, and more than 5 years experience of quality personnel complete facilities, reasonable workshop layout, advanced equipment, professional technical support, and for the supplier to our company in the LCD panel industry customers long-term support and trust

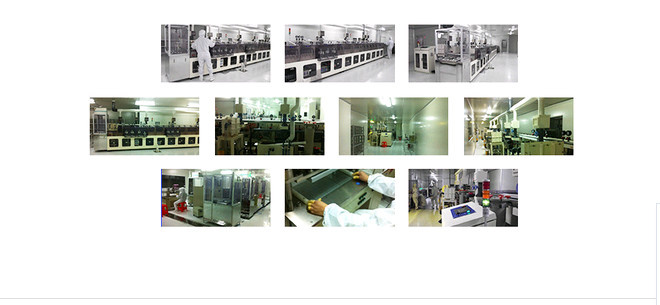

Our production plant has stringent quality control to guarantee Absolute product quality. Our production equipment are state-of-the-art Japanese technology Including COB, TAB, COG, etc.
