Product Specifications
| Prod Model: |
XOLED1286402 |
| Drive Method: |
1/4duty,1/3bias |
| Polarizer Type: |
Transmissive / Negative /Glare |
| Operating Temp: |
-20--70 |
| Storage Temp: |
-30--80 |
| Voltage: |
Vdd:3.3V Vlcd:4.5V |
| Application: |
Graphic Design |
| Feature: |
3D Display |
| Response Time: |
16ms |
| 3D: |
Not 3D |
| Interface Type: |
VGA |
| Type: |
OLED |
Product Description
Features| Diagonal Screen Size | 1.3inch |
| Color | Monochrome
(white) |
| Module Construction | COG |
| Number of Pixels | 128X64 |
| Active Area | 29.42X14.7 |
| Pins | 30 |
| Drive IC | SSD1306 |
| Interface | Parallel/12c/4-Wire Spi |
| Pixel pitch | 0.23X0.23mm |
| Assembly | Soldering |
Temperature rangeItem | Min. | Max. |
Operating Temperature (°C) | -40 | 70 |
Storage Temperature (°C) | -40 | 85 |

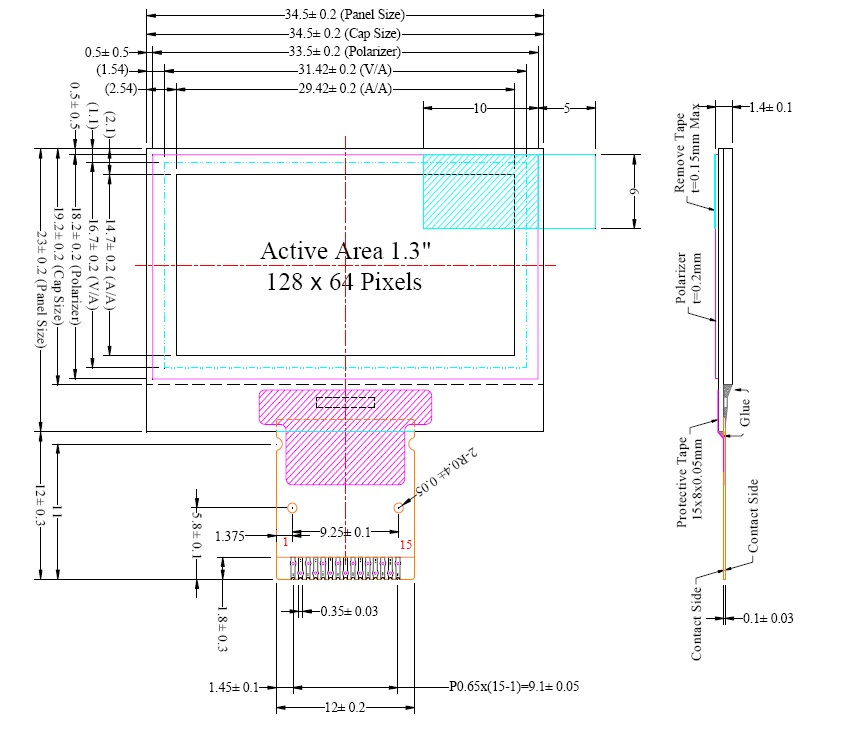

Outline Drawing

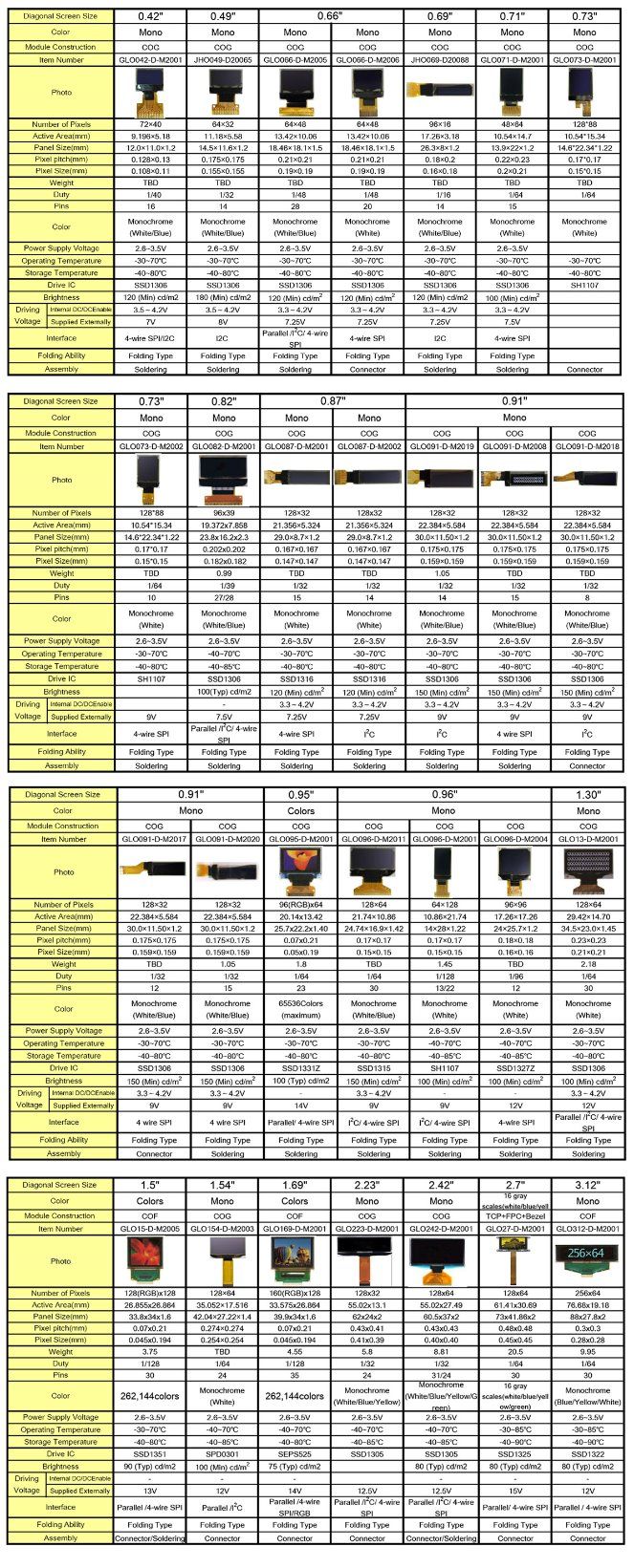

More products
Trade Information for the 1.3inch OLED Display
Company Profile:
Applied: Household appliances, machine
Product name: LCD polarizer Graphic LCD module
Brand Name: XUDING
Cerificate: Rohs
Manufacturing Experience: 10 year
Place of Origin: Guangdong China
Model size ( Versatility ): Length *width * Highth:
Pitch: 2.45mm
Viewing sirection: Length *width
Viewing direction: 3H / 6H / 9H / 12H / Full viewing angle
Display type: Mono segent LCD display / Dot matrix display mode
VA TN HTN STN FSTN
Positive Negative
Different polarizer options
Polarizer type: Reflective / Transmissive / Transflective
Wide temperature range
Operating temperature: (-20 TO -70)
Storage temperature: (-40 TO -80)
Connector: PIN Zebra FPC
Cob Cog
Low power consumption
Operating voltage: 2.8V to 5.0V
Drive mode: 1/3BIAS 1/4DUTY
Backlight (Custmer Design ): Yellow Green Blue Amble
Controller: SPLC780/KS0066U or eqv.
***In compliance with ISO9001: 2008 Quality Management
***One year's guarantee for unartificial damage
Dongguan xu ding electronics technology Co., Ltd. (XUDING) professional sales LCD/LCM/TFT LCD display. Its products are widely used in electric power terminal, digital control, instrumentation, medical equipment, security, tax control equipment, industrial automation and other fields.
XUDING with independent research and development capabilities, and more than 5 years experience of quality personnel complete facilities, reasonable workshop layout, advanced equipment, professional technical support, and for the supplier to our company in the LCD panel industry customers long-term support and trust

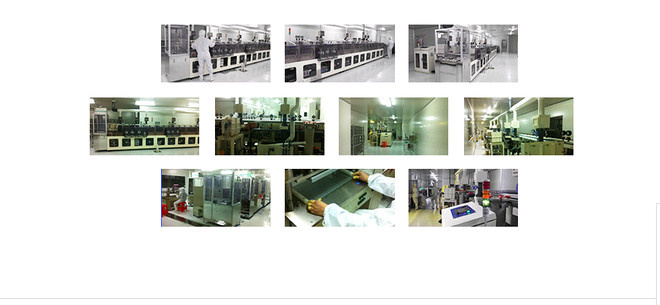

Our production plant has stringent quality control to guarantee Absolute product quality. Our production equipment are state-of-the-art Japanese technology Including COB, TAB, COG, etc.
