Xy Screens 3D High Gain Curved Projection Screen for Edge Blending

Name: Xy Screens 3D High Gain Curved Projection Screen for Edge Blending
Brand: china-crystals.com
SKU: 836959625
Availability: InStock
Rating: 4.3 (27 reviews)

Price:	US $ 170-1000/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	CHK100C
Material:	Soft PVC+Aluminum

Product Description

XY Screens 3D High Gain Curved Projection Screen for Edge Blending

Frame Material:	Aluminum Alloy
Housing Color:	Black / White / Grey / Orange / Blue / Golden Velvet
Size:	80-300 inch / customized
Aspect Ratio:	16:9 / 16:10 / 4:3 / 1:1 / 2.35:1 / customized
Frame Width:	100mm
HD:	Yes
3D:	Yes
4K:	Different fabrics are optional
Bend Radius:	Minimum is 0.75 times of standard bend radius; Maximum is 2 times of standard bend radius.

Product Features:

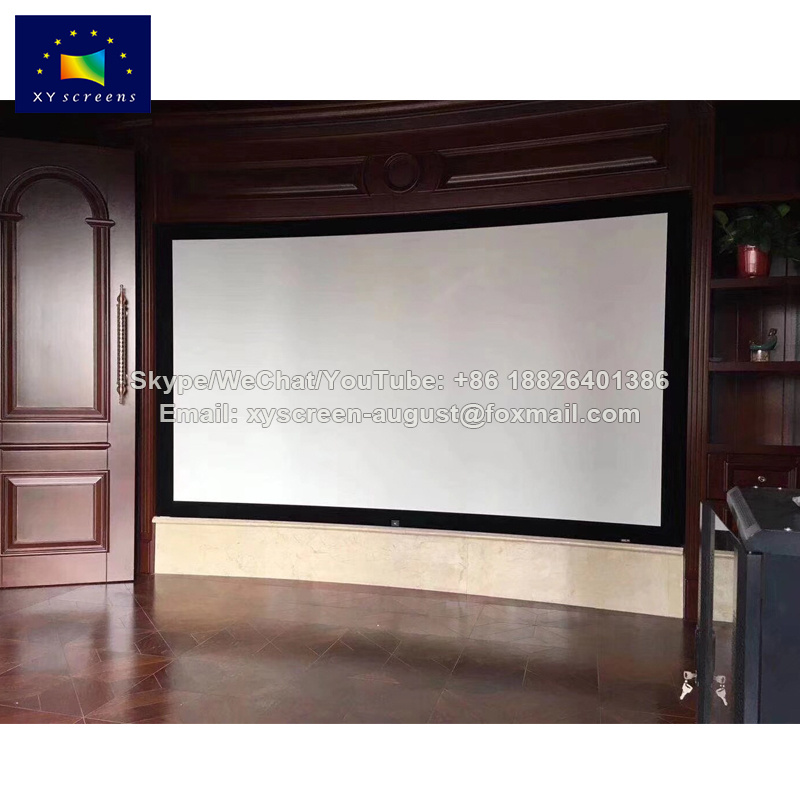

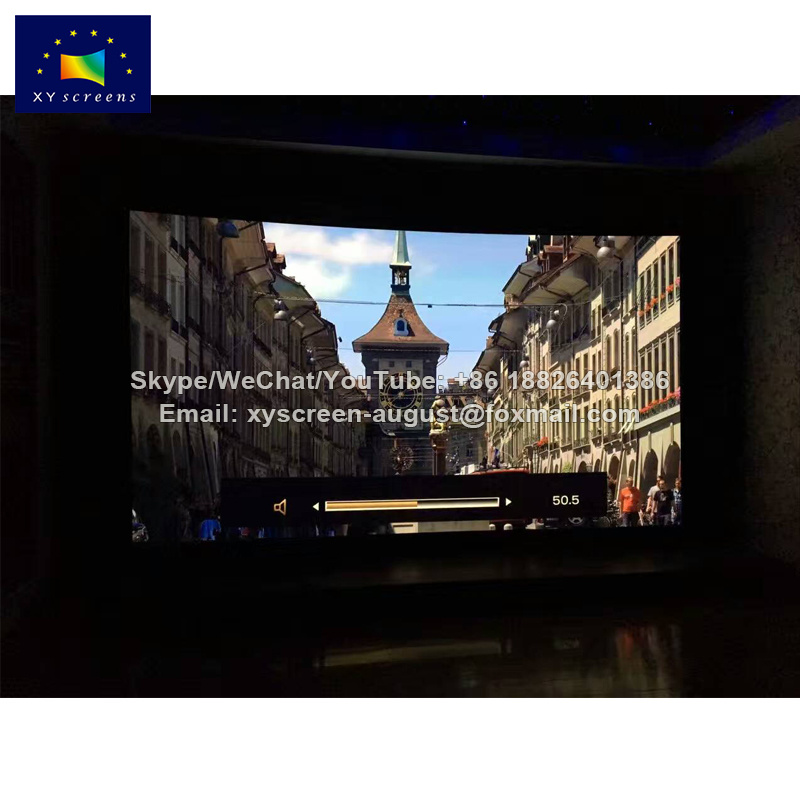

XY Screens Curved Fixed Frame Projector Screen adds a flare of style and ambiance to any Home Theater or Auditorium application. Creating the effect of enveloping the audience with its curved corners, the screen wraps the viewer in a full panoramic experience. The CHK Series Curved Frame projector screen design enhances the aesthetic appeal, while also optimizing light reflectivity towards the audience.

Compared to flat screen, curved screen can do larger size in the same space, for example, in a 128 inch wide space, the maximum of flat screen is only do 128 inch wide, but the curved screen can do 130 inch wide.

We offer various types of screen surfaces to suit your viewing environment. Different surfaces are available for different frames:

CHK100C - WF1, GF1, WF1 Pro, WFS1, WF1 Pro Max4K HG, Black Crystal, Sound Max2, Sound Max4K, RGF1, MF1, MFS1.

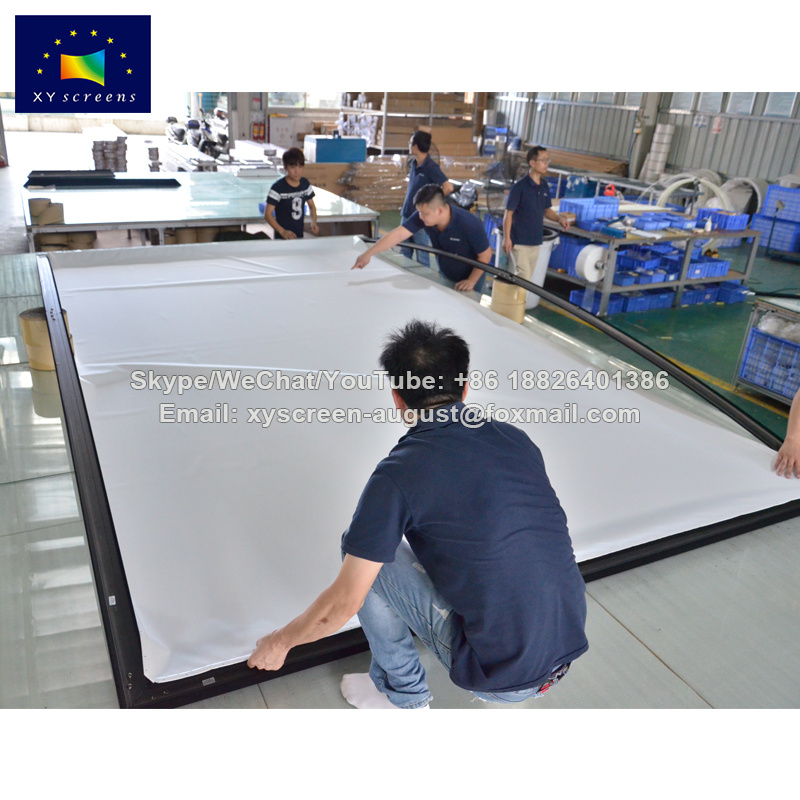

Installation is easy - With its easy and adjustable fabric spring system, our Fixed Frame Screen is perfectly and permanently tensioned, the users are able to set up in seconds.

Flexible adjustment - Screen could slide along the specially designed brackets to achieve a best view position, also available as an in-wall display.

Advantages of Curved Projection Screen:

Curved projection screens offer several key advantages over flat projectionscreens. A curved screen helps offset pincushion distortion from a horizontalexpansion lens, and also wraps the image around your periphery more thana flat screen for greater engagement with your projected image.

Package Size:

Ratio	Size	Viewing Size		Chord Length		Arc Length	Bending Radius	Sagitta
Ratio	Size	Width*Height (mm)		Length (mm)	Height (mm)	(mm)	m	(mm)
16:9	160"	3542	1992	3737	2192	3742	12.9	135
	170"	3763	2116	3956	2316	3963	12.9	151
	180"	3984	2241	4175	2441	4184	12.9	169
	200"	4427	2490	4612	2690	4627	12.9	206
	220"	4870	2739	5048	2939	5070	12.9	206
	250"	5534	3113	5699	3313	5734	12.9	316
	300"	6641	3735	6776	3935	6841	12.9	449
4:3	180"	3657	2743	3841	2943	3857	12.9	143
	200"	4064	3048	4254	3248	4264	12.9	175
	250"	5080	3810	5255	4010	5280	12.9	268
	300"	6096	4572	6247	4772	6296	12.9	381
2.35:1	150″	3505	1491	3700	1691	3705	12.9	132
	180″	4206	1790	4394	1990	4406	12.9	187
	200″	4674	1989	4856	2189	4874	12.9	229
	250″	5842	2486	6000	2686	6042	12.9	351
	300″	7011	2983	7133	3183	7211	12.9	499

Q1. Are you a factory?
Yes, we have two factories in Guangzhou China. Welcome to visit us!

Q2. How many types projection screen do you produce?
Our factory mainly produces motorized projection screen, fixed frame screen, fast fold screen, tripod projection screen, manual screen, etc.

Q3.What types of projection screen fabric do you have?
We supply various fabrics, including front fabric, rear fabric, silver fabric, grey fabric, ambient light rejecting fabric, acoustic transparent fabric, etc.

Q4.What is the MOQ?
The sample in stock is 1 pcs; price can be negotiated if bulk order.

Q5.Can you customized the size?
Yes, the size can be customized from 60 inch to 500 inch.

Q6.Does all types projection screen have warranty?
Yes,one year will be given for all types of projection screen.

Q7.Can I customized my logo or package?
Yes, both will be accepted! Our factory welcome OEM&ODM orders!

Guangzhou Xiong-Yun Audio-Visual Equipment Co., Ltd. (Hereinafter referred to as "XY") is one of the high-quality projection screen manufacturer in the world. XY have production experience of over 10 years with a high reputation and cognition degree in the industry, which mainly offers projection screens to Europe, the United States and other countries. XY's projection screens are widely used in home theater, school, bank, government agencies, museums, weather stations, five-star cinema, military, auditorium, office, hotel, conference room and etc. The screens can be customized according to special requirements of customers.

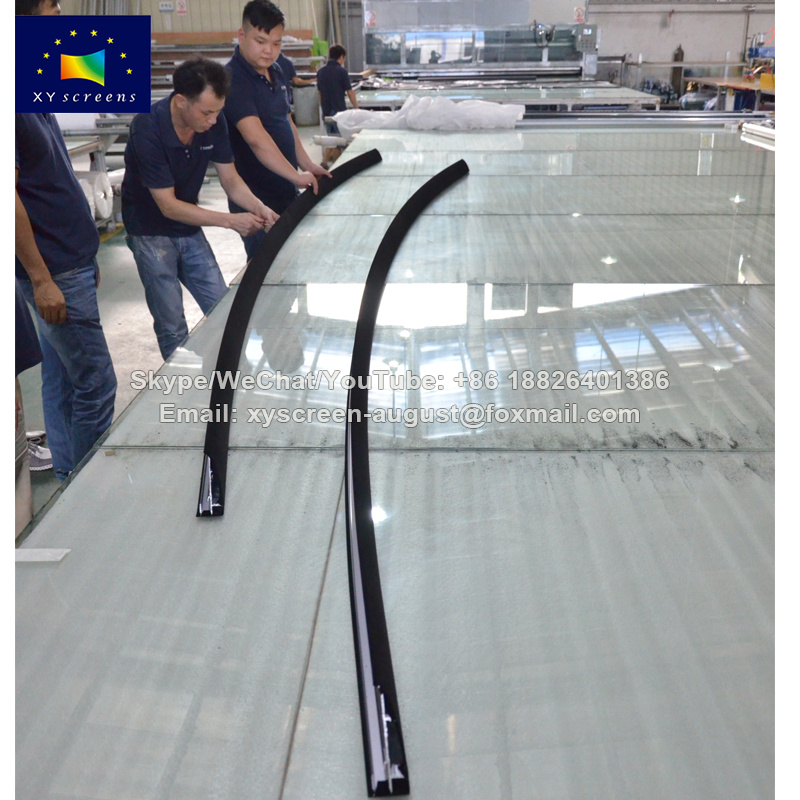

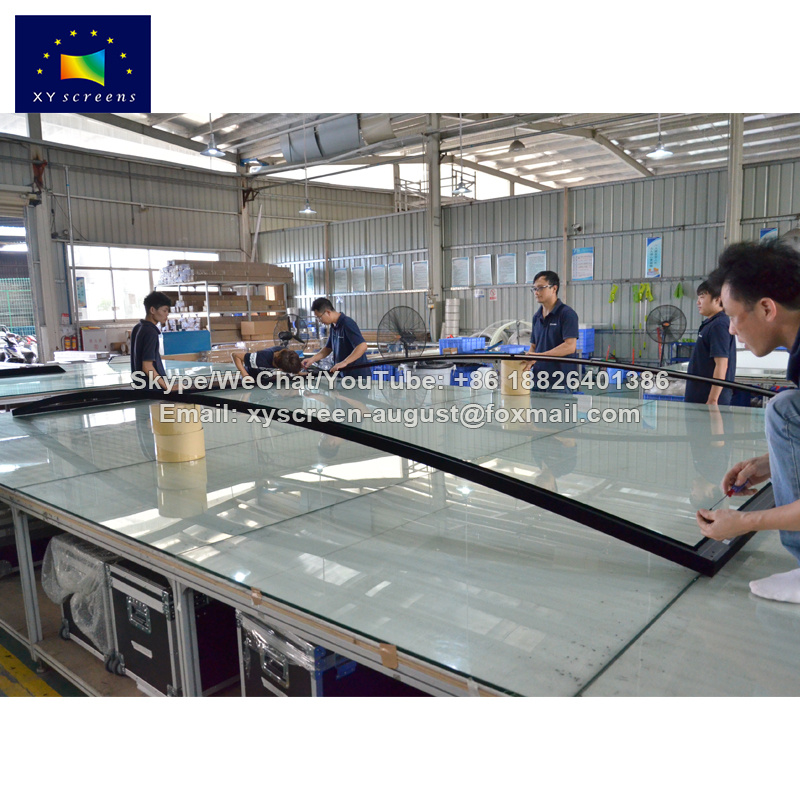

In 2013, XY screens (French brand) entered into China and authorized Guangzhou Xiong-Yun Audio-Visual Equipment Co., Ltd. (a high-tech enterprise) to produce XY projection screens. XY quickly established a Dealer System in more than 100 cities. XY provide products, technology, training, marketing, retail concept, comprehensive services and support for the Dealers. With more than 15, 000 m² Workshop and advanced devices, the authorized factory can manufacture over 200, 000 screens each year.

XY is mainly focusing on home theater projection screen, business and education projection screen, film club / film KTV screen, large cinema screen, large project projection screen, portable outdoor fast fold screen, projector mounts, HDMI cable and other products. The products sell well in all over the world.

XY always attaches great importance to talents, so it has established a completed training system to improve the employees' working skills and professional knowledge.

Because of the continually improvement of human resource and production equipment, the manufacturing capacity and brand awareness have been improved in the meantime.

As an innovative enterprise, since its founding, XY has obtained dozens of patents. We continually explores and studies on screen material, the characteristics of optics and acoustics, etc. With Integrity and Profession, our company always supplies high quality products and maintains good partnership with our customers.

XY will be indomitable to promote the development of China smart home, audio and video entertainment, and will make a positive contribution in the future.
