| Price: | US $ 100-500/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal |
| Prod Model: | frame screen |
|---|---|
| Frame Size: | 12mm |
| Frame Material: | Aluminum |
| Gain: | 1.4 |
| View Angle: | 140 Degree |
| 4K: | Yes |
| 3D: | Yes |
| Anti-Light: | Best |
| Fabric Color: | Dark Grey |
| Suitable Projector: | Long Focus Projector |
| Certificate: | Ce / RoHS / UL |
| Material: | Soft PVC |
| Style: | Frame Screen |
| Format: | 16:9 / 4:3 / 2.35:1 |
Contact us
Wendy Chou
Tel : 0086 188 2513 4099

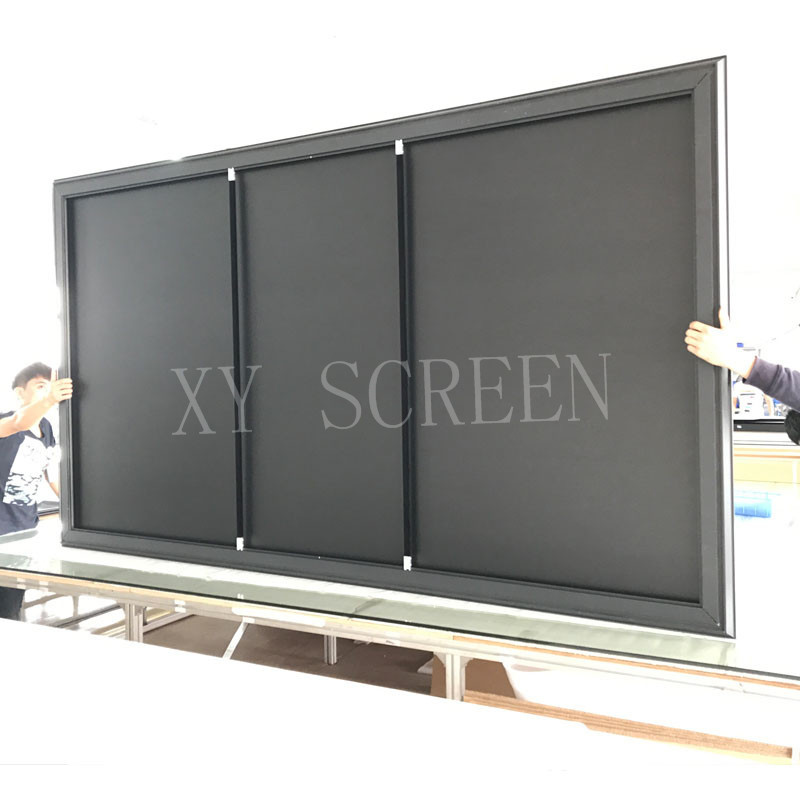

Name: 135 inch Anti-light Black Crystal projector screen for long focus projector
Our Ultra Thin Frame Projection Screen ZHK100B which provides the thinnest visible bezel/frame available in the market today is uniquely designed to resemble a premium LED TV but with much larger viewing area options. ZHK100B Thin Edge Frame uses sturdy extruded aluminum alloy frame with 12mm edge border that offers maximized viewing, making this an excellent addition to both home theater and commercial applications. Watch as your viewing experience soars to new heights of enjoyment!
Excellent picture quality - Suitable for 4K & 3D television/movies.

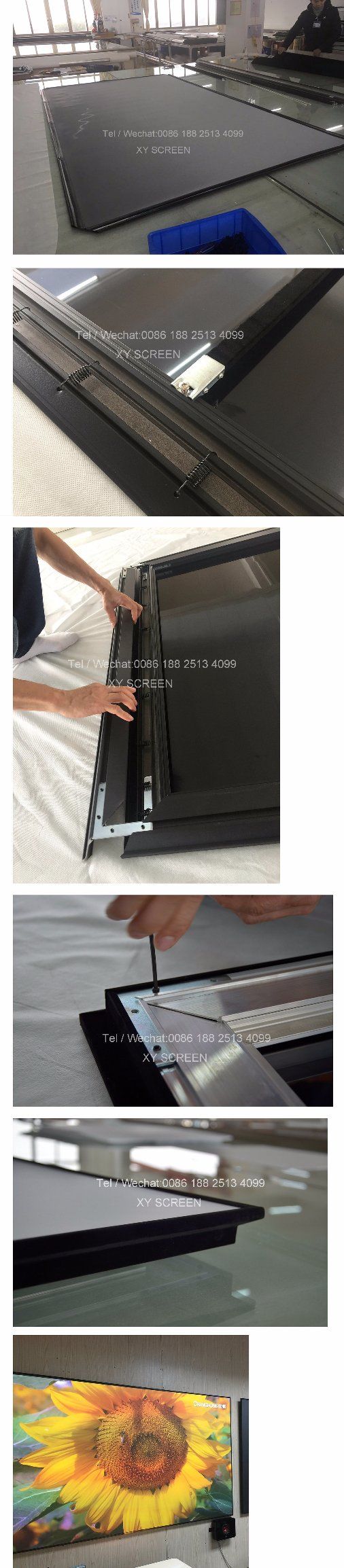

Installation is easy - With its easy and adjustable fabric spring system, our Fixed Frame Screen is perfectly and permanently tensioned, ensuring that the screen is as flat and level as the mirror. Special designed slim bracket for an easy click on installation, also available as an in-wall display. Therefore, the users are able to set up in seconds.
Concerns about buyer friends:
1, Q: What is the material border? Why choose a narrow border?
A: The aluminum frame, strong and durable. Narrow border allows you to enjoy the feeling of unbounded large screen, but does not account for the wall space, the overall appearance, in line with the aesthetic needs of modern fashion.
2, Q: the border is only 12mm, the product is strong?
A: The front narrow border is for decoration, the actual support is 7CM wide aluminum inner frame. This structure is more solid than the average, but also thicker.
3, Q: Is there any accessories? Personal good installation?
A: The product installation accessories complete, and is equipped with installation tools, installation method is simple, individuals can install themselves.
4, Q: What screen narrow frame?
A: Narrow border with professional HD soft white screen, support for HD, 3D, imaging delicate, clear, and very smooth. Is a good choice for home theater.

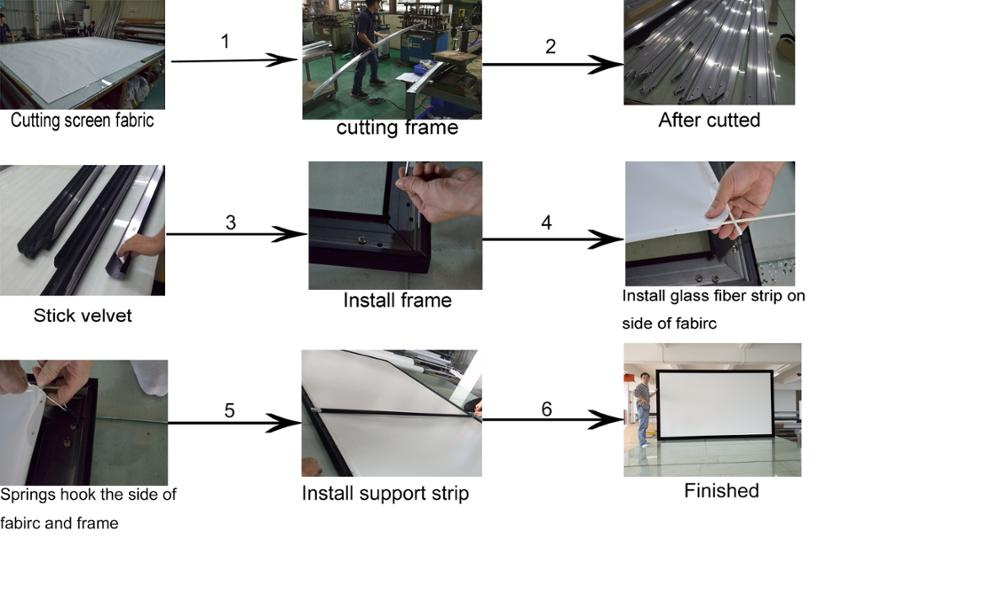

Below is the Technological Process:
1.Cutting screen fabric
2.Cutting frame
3.Stick velvet to each frame(more colors for velvet can be choosed)
4.Bulid up to a square frame
5.Install fiber strip on side of fabirc
6.Use springs hook the side of fabirc and frame at the same time
7.Install support strip to the centre of back,so that screen can be tightened,flat as a mirror,
Dimension of ZHK100B Series
135 inch Anti-light Black Crystal projector screen for long focus projector
| Ultra Thin Frame Projection Screen | ||||||||||
| Format | Size | View Area | Frame Size | Package Size | Frame Width(mm) | |||||
| (inch) | W*H(mm) | Frame Length(L) | Frame Width(A) | L(mm)*W(mm)*H | ||||||
| 16:9 | 80" | 1771 | 996 | 1795 | 1020 | 1983*342*148 | 12 | |||
| 90" | 1992 | 1120 | 2016 | 1144 | 2204*342*148 | 12 | ||||
| 100" | 2213 | 1245 | 2237 | 1269 | 2425*342*148 | 12 | ||||
| 110" | 2435 | 1369 | 2459 | 1393 | 2647*342*148 | 12 | ||||
| 120" | 2656 | 1494 | 2680 | 1518 | 2868*342*148 | 12 | ||||
| 135" | 2988 | 1681 | 3012 | 1705 | 3200*342*148 | 12 | ||||
| 140" | 3099 | 1743 | 3123 | 1767 | 3311*342*148 | 12 | ||||
| 150" | 3320 | 1867 | 3344 | 1891 | 3532*342*148 | 12 | ||||
| 160" | 3542 | 1992 | 3566 | 2016 | 3680*342*148 | 12 | ||||
| 170" | 3763 | 2116 | 3787 | 2140 | 3754*342*148 | 12 | ||||
| 180" | 3984 | 2241 | 4008 | 2265 | 2596*240*264 | 12 | ||||
| 200" | 4427 | 2490 | 4451 | 2514 | 2847*240*264 | 12 | ||||
| 4:3 | 100" | 2032 | 1524 | 2056 | 1548 | 2244*342*148 | 12 | |||
| 120" | 2438 | 1828 | 2462 | 1852 | 2650*342*148 | 12 | ||||
| 150" | 3048 | 2286 | 3072 | 2310 | 3260*342*148 | 12 | ||||
| 180" | 3657 | 2743 | 3681 | 2767 | 3869*240*264 | 12 | ||||
| 200" | 4064 | 3048 | 4088 | 3072 | 3399*240*264 | 12 | ||||
| 2.35:1 | 120″ | 2804 | 1193 | 2828 | 1217 | 3016*342*148 | 12 | |||
| 135″ | 3155 | 1342 | 3179 | 1366 | 3367*342*148 | 12 | ||||
| 150″ | 3505 | 1491 | 3529 | 1515 | 3717*342*148 | 12 | ||||
| 180″ | 4206 | 1790 | 4230 | 1814 | 2300*240*264 | 12 | ||||
| 200″ | 4674 | 1989 | 4698 | 2013 | 2534*240*264 | 12 | ||||

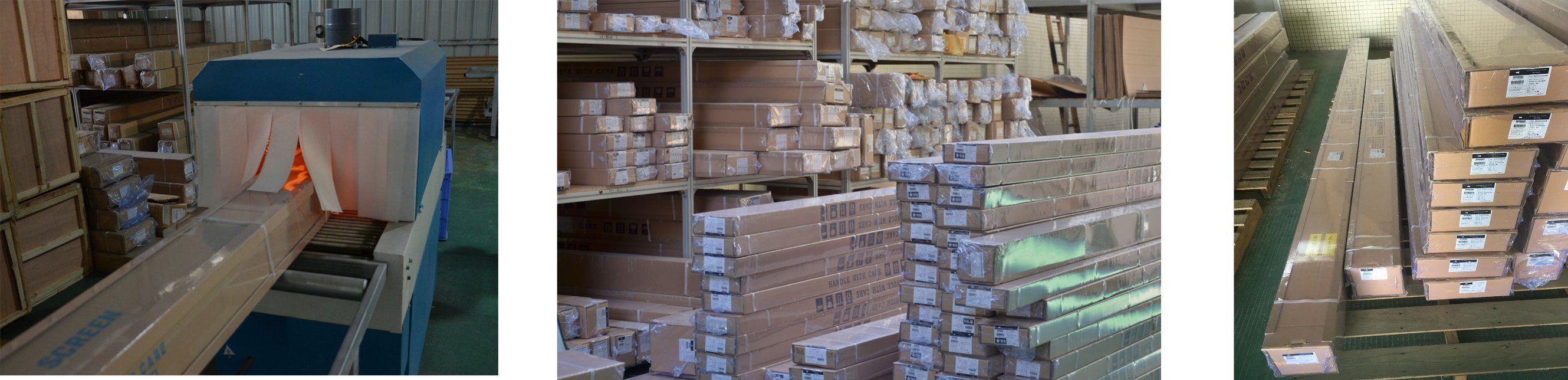

Package
All of our projection screes are packed with sturdy carton box,and the surface of the carton covered a waterprood plastic film to provent damage during transportaion

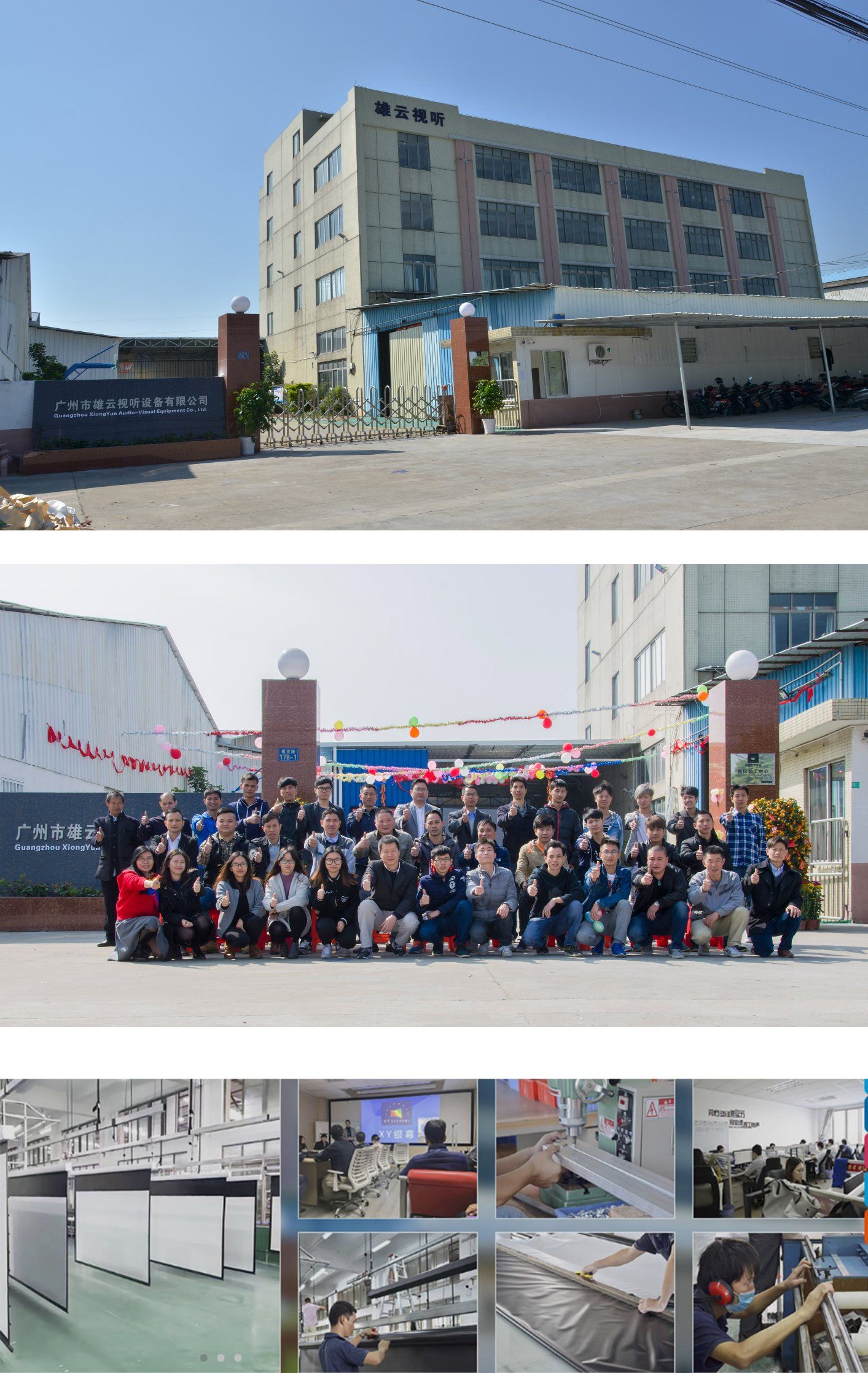

About our factory
Guangzhou Xiong-Yun Audio-Visual Equipment Co.,Ltd. is a projection screen manufacturer with word-class quality, and mainly produce intelligent home cinema projection screen, movie bar/movie KTV screen, large theater screen and large engineering projection screen, etc. Company capacity is 80,000 sets per year. Products sell well all over the world: China, the United States, Japan, Europe, the Philippines, Indonesia and other countries.
