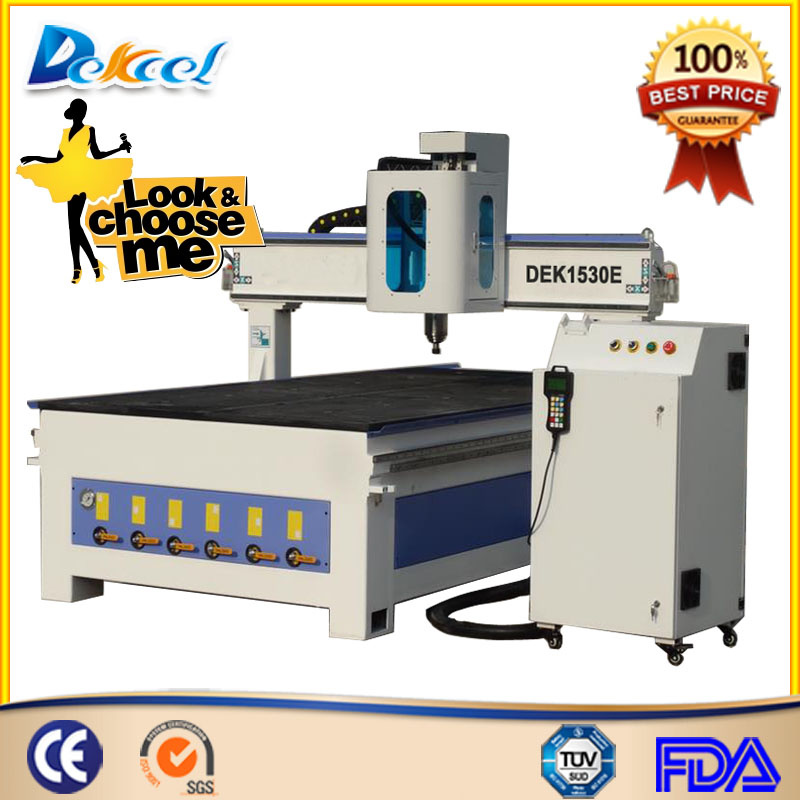

Wood and MDF CNC Router 1530 for Furniture

Product Specifications

Prod Model:	DEK-1530M
Working Area:	1500*3000mm
Control System:	Weihong Nk105 DSP Control System
Z Axis Transmission:	Taiwan Tbi Transmission
Spindle Power:	3.0kw Water Cooling Spindle
X Y Axis Transmission:	Gear and Rack Transmission
Motor And Driver:	Leadshine Stepper Motor and Drivers
Inverter:	Fuling Inverter
Dimension(L*W*H):	3110X1800X1550mm
Weight:	1500kg
Voltage:	380V/50Hz
Spindle Layout:	Vertical
Spindle Number:	Single-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	ISO

Product Description

Wood and MDF cnc router 1530 for furniture

Special Feature:
1)Using Professional Dust Collecting System (for Cutting Wood) and Vacuum System (for absorbing objects)
2)Advanced digit-control system, handle operation and large liquid crystal display brings out more convenient operation, simpler maintenance and more human nature on the design of the machine
3)The three axes use linearity square guide rail and drive which could meet different cutting demand and has high cutting precision.
4)Unique intelligent calculation fully develops the potential of the electric machinery and leads to high speed processing, the synchronization of curves and straight lines, smoother curves and race speed at 12m/min.
5)Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.
6)This model uses domestic-leading PCI controlling system. It uses imported square shape guide rail and the transmission is steady. It adopt high-precision level gear transmission, the maximum speed can reach 30m/m. It can engrave the graph of 1.5*1.5mm clearly.
7)It equipped with aluminum work table with special design, which can endure much weight. On the base of PEM-1325A, it uses the vacuum work table, which can adsorb the wood dust, and make the environment clean. And it adopts a more advance XYZ Auto-oil-feeding system.

Standard features
1. Working area: 1500mm*3000mm*200mm (X,Y,Z axis)
2. Solid steel frame construction thicken to 12mm, strong stability
3. 3.0 KW water cooling spindle, long life and good cooling effect
4. Stepping drives, strong anti-interference ability large power and high accuracy
5. T-Slot Vacuum table, stronger adsorption and can adsorb different size materials
6. Taiwain HIWIN Linear Guide rails, ensure the high precision
7. DSP controller, simple operation and good independence
8. Tool Calibration, better control of the distance between the knife and the material,improve the work efficiency
9. X and Y axis: are with Rack and Pinion, Z axis is with ball Screw
10. ArtCam software
11. Delta Inverter
12. 3PH 380V 50HZ
13. Plywood case package

Specifications:

Model	DEK-1530M wood cnc router for furniture
Working Area	1500×3000×200mm
Spindle Motor	3.0kw water cooled spindles
Working Mode	Stepper motor or servo
Control System	DSP NK105
Drive Mechanism	Rack and pinion on x,y axis ,z axis ball screw transmission
Table Surface	T-slot table and vacuum table
Frame	wholly steel structure
Motion Positioning Accuracy	± 0.03/300mm
Repositioning Accuracy	± 0.05mm
Max Motion Speed	50,000mm/min
Max Engraving Speed	30,000mm/min
Rotating Speed of Spindle	2,4000rpm
Z-axis setting	Auto Z origin tool sensor
Dictate Format	G code, *.u00, *.mmg, *.plt
Operating Voltage	220V/ 380v
Software	Type3,Wentai (ArtCUT), ArtCAM software
Packing Size	3170*2120*1880mm
Lubrication System	Oil lubrication system
Gross Weight	1400kg

Our wood cnc router is mainly applied in wood working industry, furniture industry for furniture decoration, wooden door and window frame processing, and wooden handcraft making industry, manufacturing sewing machine table and cabinet panels, etc. Our  wood cnc router are not exclusively applicable for wood engraving, wood cutting ;but also can be sued for engraving on Acrylic Engraving, Acrylic Cutting, PVC Engraving, PVC Cutting ,Stone Engraving, Stone Cutting, Metal Engraving, Metal Cutting, etc.

Welcome to inquiry from us about wood and mdf cnc router for furniture.
